aR13Ha/aR13HaR ROLLeR (s/n 110301 & up) • OpeRaTiOn anD paRTs manuaL — Rev. #0 (06/22/11) — page 27

MaintenanCe

FORWaRD/ReveRse ReLieF vaLves DRive

aDjusTmenT

The forward and reverse relief valves (Figure 30) are

located in the hydrostatic pump (not on the manifold block)

under plugs 1 and 2 . Plug 2 is located in the same location

as plug 1, except it is on the bottom side of the pump. Relief

valve 1 is reverse and 2 is forward.

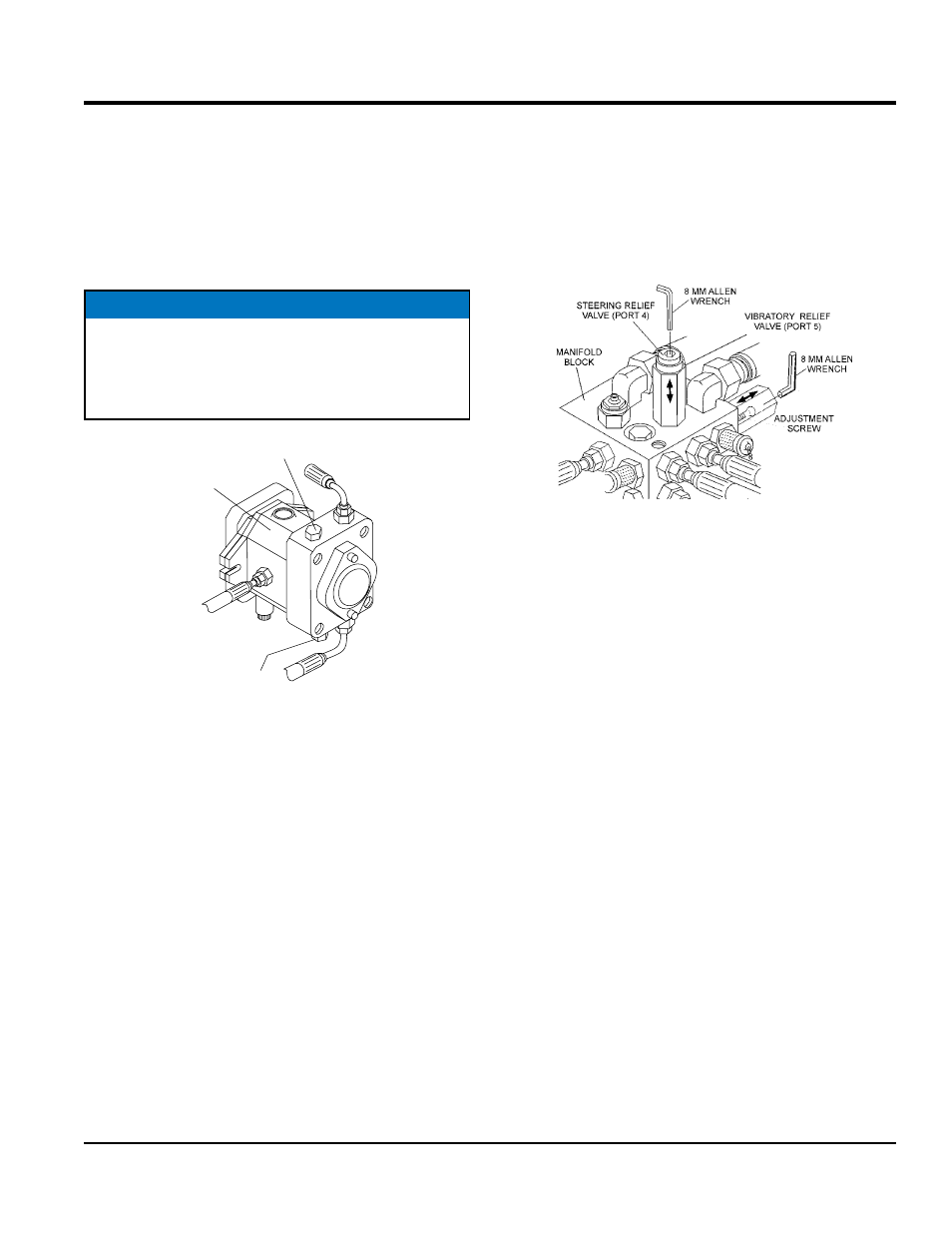

Figure 30. Adjusting Relief Valves

1. Clean the area around the cap.
2. Remove the cap.
3. Carefully remove the valve cartridge.
4. Using an allen wrench, remove the top nut (extreme

care must be taken not to loosen existing shims, spring,

or valve) Add or remove shims as required. Adding

shims increases pressure; removing shims lowers

pressure. One shim is equal to approximately 50 psi.

Shim P/N is 34538.

5. Install the top nut and install valve in the pump cavity

using extreme care not to bind.

6. Install the valve cap.
7. Retest pressure, further adjustment may be needed if

pressure is not correct.

NOTICE

Pumps supplied after 01/01/2003 do not have adjustable

relief cartridges. The pressure is fixed at 2,900 ± 145

psi. If the relief pressure is not within normal range, the

complete cartridge must be replaced.

REVERSE

RELIEF VALVE

(PLUG 1)

FORWARD

RELIEF VALVE

(PLUG 2)

HYDROSTATIC

PUMP

s T e e R i n g R e L i e F va Lv e p R e s s u R e

aDjusTmenT

To adjust the relief valve steering pressure perform the

following:
1. Insert an 8 mm allen wrench into steering relief port 4

(Figure 36) on the manifold block.

Figure 31. Steering and Vibration Relief Valves

2. On the manifold, connect at 5,000 psi pressure gauge

into quick disconnect test port 1.

3. Start the engine and run at full throttle.
4. Turn the steering wheel to the left or right (maximum)

and hold. Read the steering relief pressure. The relief

pressure reading for the steering test port 1 will should

be 700 psi.

5. If the steering relief pressure is not 700 psi, using the

allen wrench adjust the pressure at port 4 until the

pressure gauge reads 500 psi.

viBRaTiOn ReLieF vaLve pRessuRe

aDjusTmenT

1. Insert an 8 mm allen wrench into steering relief port 5

(Figure 31) on the manifold block.

2. On the manifold block, insert a 5,000 psi pressure

gauge into quick disconnect test port 1.

3. Start the engine and run at full throttle.
4. To start the vibration, press the pushbutton switch

(vibration control) located on top of the travel lever. The

relief pressure should read 900 ~ 1,500 psi.

5. If the vibration relief pressure is not 900 ~ 1,500 psi,

using the allen wrench, adjust the pressure at port 5

until the pressure gauge reads correctly.
