aR13Ha/aR13HaR ROLLeR (s/n 110301 & up) • OpeRaTiOn anD paRTs manuaL — Rev. #0 (06/22/11) — page 11
diMensiOns

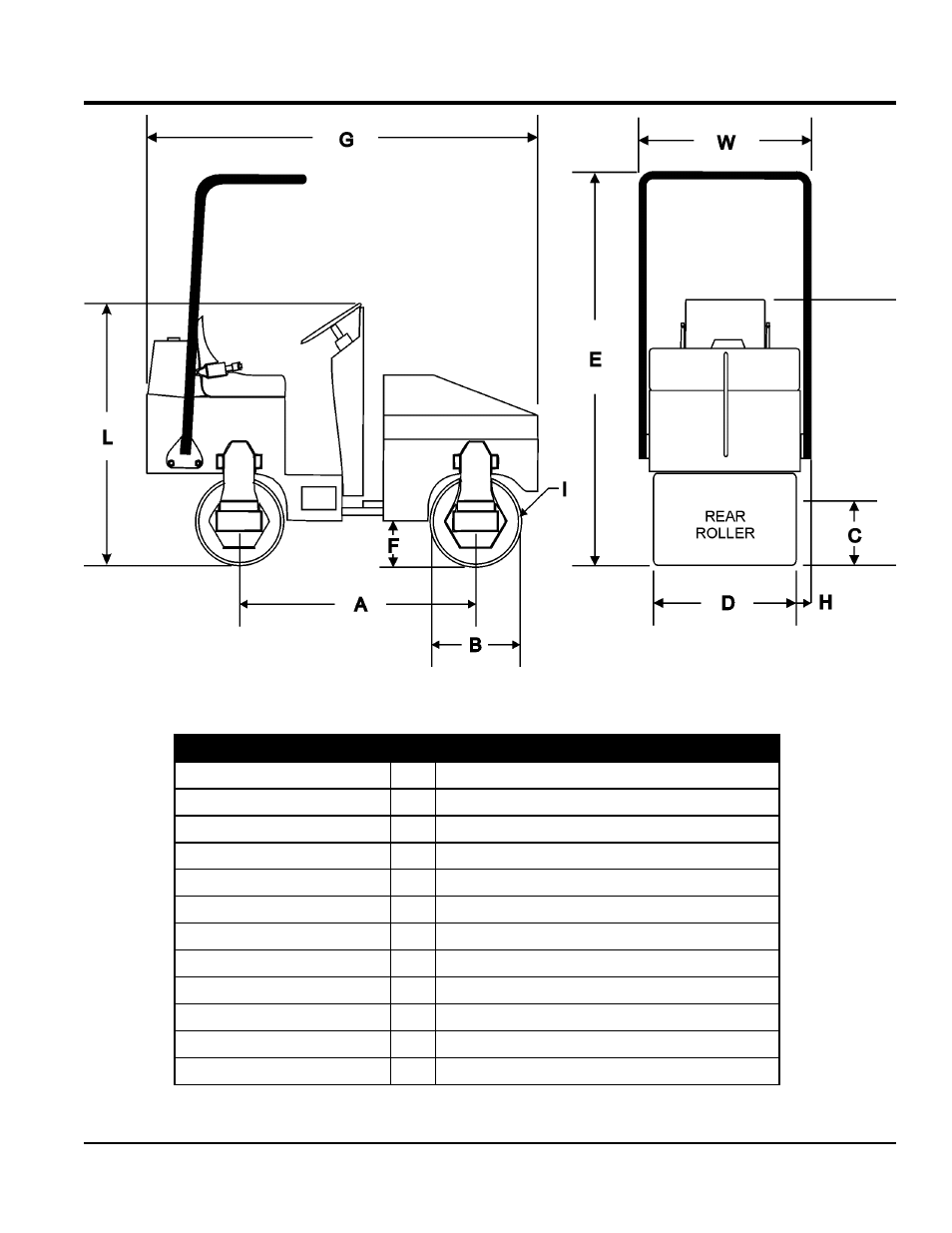

Figure 1. Roller Dimensions
Table 3. Dimensions (Roller)
Wheelbase A 45.0 in. (1,143 mm.)
Drum Diameter B 22.6 in. (574 mm.)
Curb Clearance C 7.75 in. Left, 19.0 in. Right ( 197 mm., 483 mm.)
Drum Width D 35.7 in. (907 mm.)
Overall Height (with ROPS) E 88 in. (2,235 mm.)
Ground Clearance F 11.5 in. (292 mm.)
Overall Length G 85 in. (2,159 mm.)
Wall Clearance H 1.75 in. Left, 1.25 in. Right ( 45 mm., 32 mm.)
Drum Thickness I .38 in. (10 mm.)
Overall Width J 38.25 in. (972 mm.)
Seat Height K 63 in. (1,600 mm.)
Steering Wheel L 60 in. (1,524 mm.)
