page 18 — aR13Ha/aR13HaR ROLLeR (s/n 110301 & up) • OpeRaTiOn anD paRTs manuaL — Rev. #0 (06/22/11)
inspeCtiOn
BeFORe sTaRTing
1. Read safety instructions at beginning of manual.
2. Clean the roller, removing dirt and dust, particularly
the engine cooling air inlet, carburetor and air cleaner.
3. Check the air filter for dirt and dust. If air filter is dirty,
replace air filter with a new one.
4. Check carburetor for external dirt and dust. Clean with
dry compressed air.
5. Check fastening nuts and bolts for tightness.
engine OiL CHeCK
1. To check the engine oil level, place the roller on secure
level ground with the engine stopped.

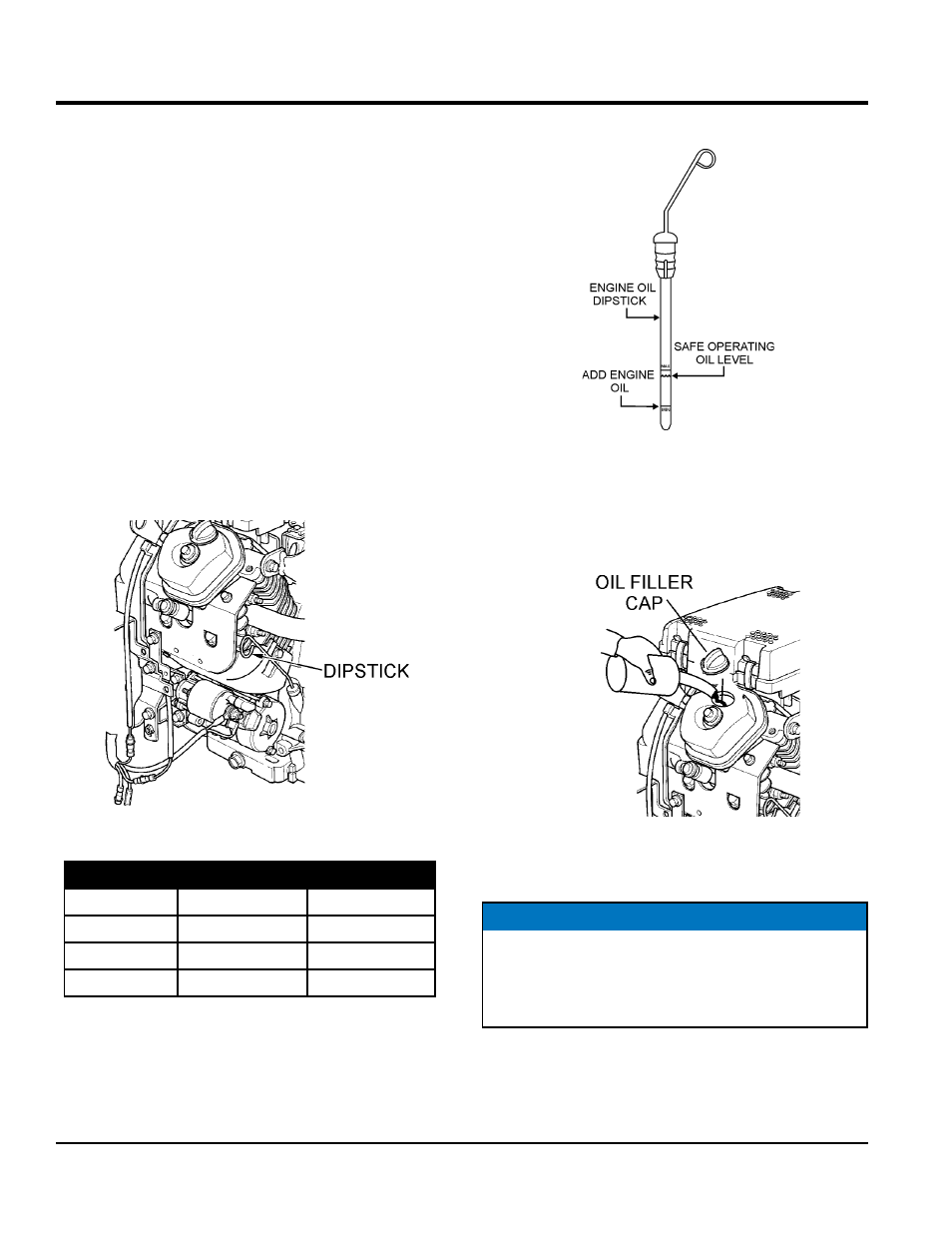

2. Remove the dipstick from its holder (Figure 7) and
wipe it clean.
Figure 7. Engine Oil Dipstick (Removal)
Table 4. Oil Type
season Temperature Oil Type
Summer 25°C or Higher SAE 10W-30
Spring/Fall 25°C~10°C SAE 10W-30/20
Winter 0°C or Lower SAE 10W-10
3. Check the oil level shown on the dipstick (Figure 8).
Figure 8. Engine Oil Dipstick Level
4. If the oil level is low, remove the oil filler cap (Figure 9)
and fill to the safe operating level (max) as indicated by
the dipstick. Fill with recommended type oil as listed in
Table 4. Maximum oil capacity is 1.90 quarts (1.8 liters).
Figure 9. Engine Oil Filler Port
NOTICE
The HONDA GX630 engine used on this roller has an
"Oil Alert System". This system will automatically stop
the engine in the event of low oil level. ALWAYS be sure
to check the engine oil level prior to starting the engine.
