Correct P Gain

Excessive P Gain

a) Open the Tuning: Ch1 Force window found by selecting Station Manager > Display > Station

Setup > Channels > Ch1 (or other depending on your configuration) > Force, clicking the
Tuning Fork icon, and selecting the Adjustments tab.

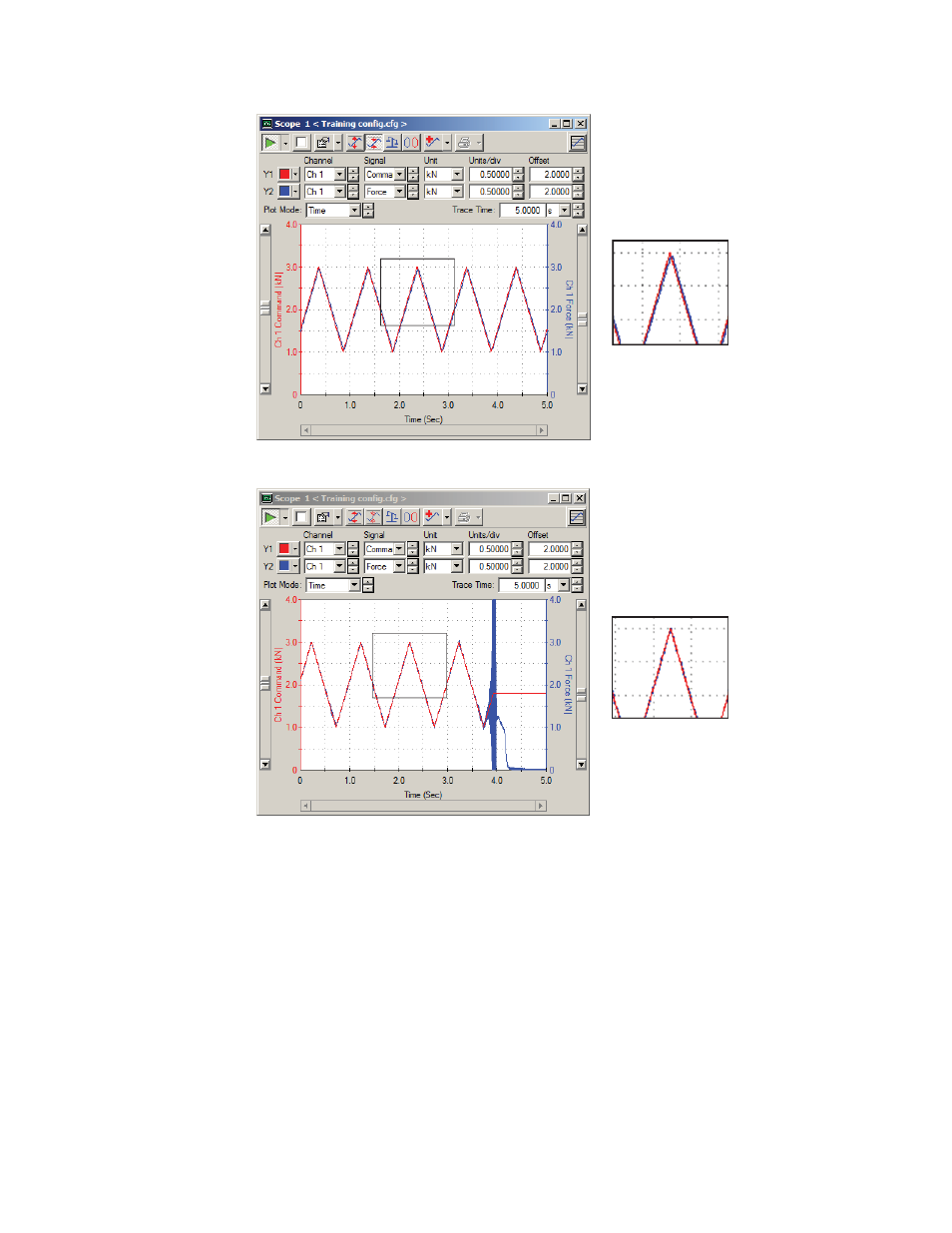

b) Compare your Scope display to the preceding examples of P gain found in the following displays.

If necessary, adjust the P gain for the Force channel.

84 | MTS Landmark Test System Operation

Running the Example HCF Test
