This introduces a force waveform to the specimen.

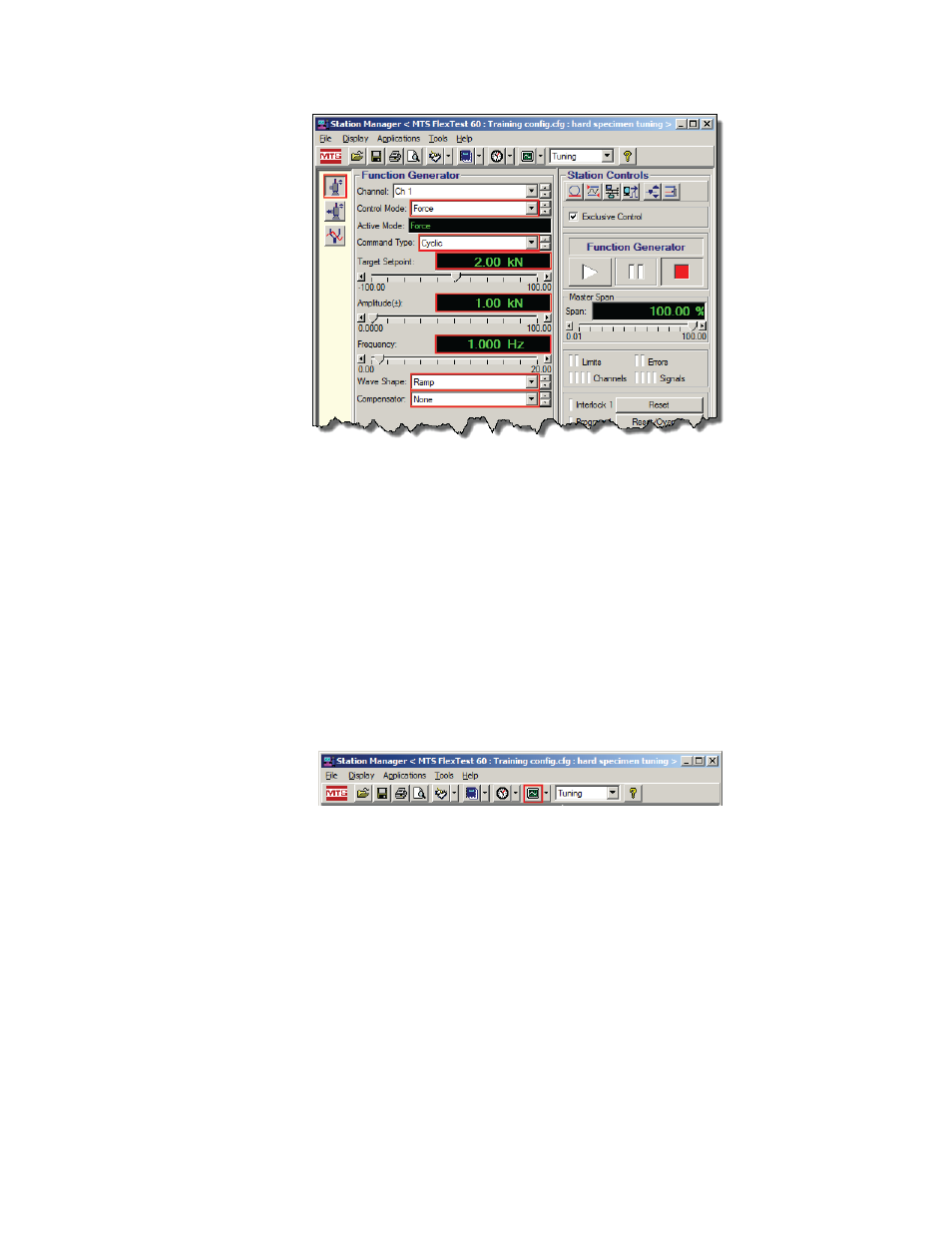

a) In the Station Manager main window, click the Function Generator button.
b) Set up a force wave form using the following parameters:
• Channel — Ch1 (or other depending on your configuration)
• Control Mode — Force
• Command Type — Cyclic
• Target Setpoint — +2 kN
• Amplitude — 1 kN
• Frequency — 1 Hz
• Wave Shape — Ramp
• Compensator — None
5. Open a Station Manager Scope.
Click the Scope button in the Station Manager main window.
6. Set up the Scope.
