Setting Up a Scope

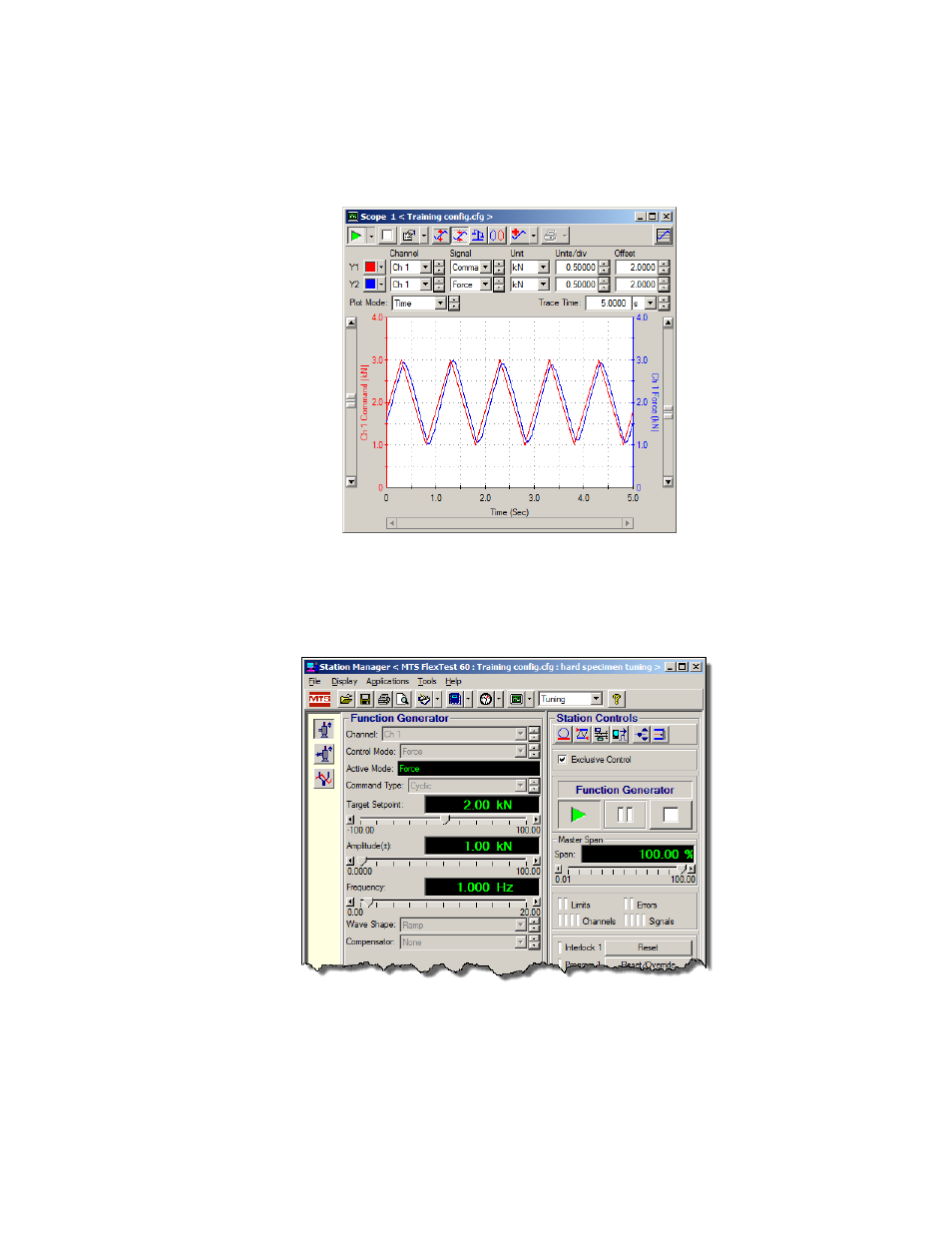

The scope provides a graphical display of the channels of your choosing. During station setup, the scope
is often used to compare the input signal to the feedback signal. This activity is essential to setting tuning
parameters and helps ensure good system response.
Using the Function Generator
The function generator allows you to input a signal to the specimen so that you can monitor the feedback.
This is necessary when tuning the system. The controls for the function generator are found in the main
window.
Setting Tuning Parameters
The tuning fork icon (boxed in red) found in the Station Setup window provides access to the tuning tabs.
You can enter tuning parameters on the Adjustments tab.
