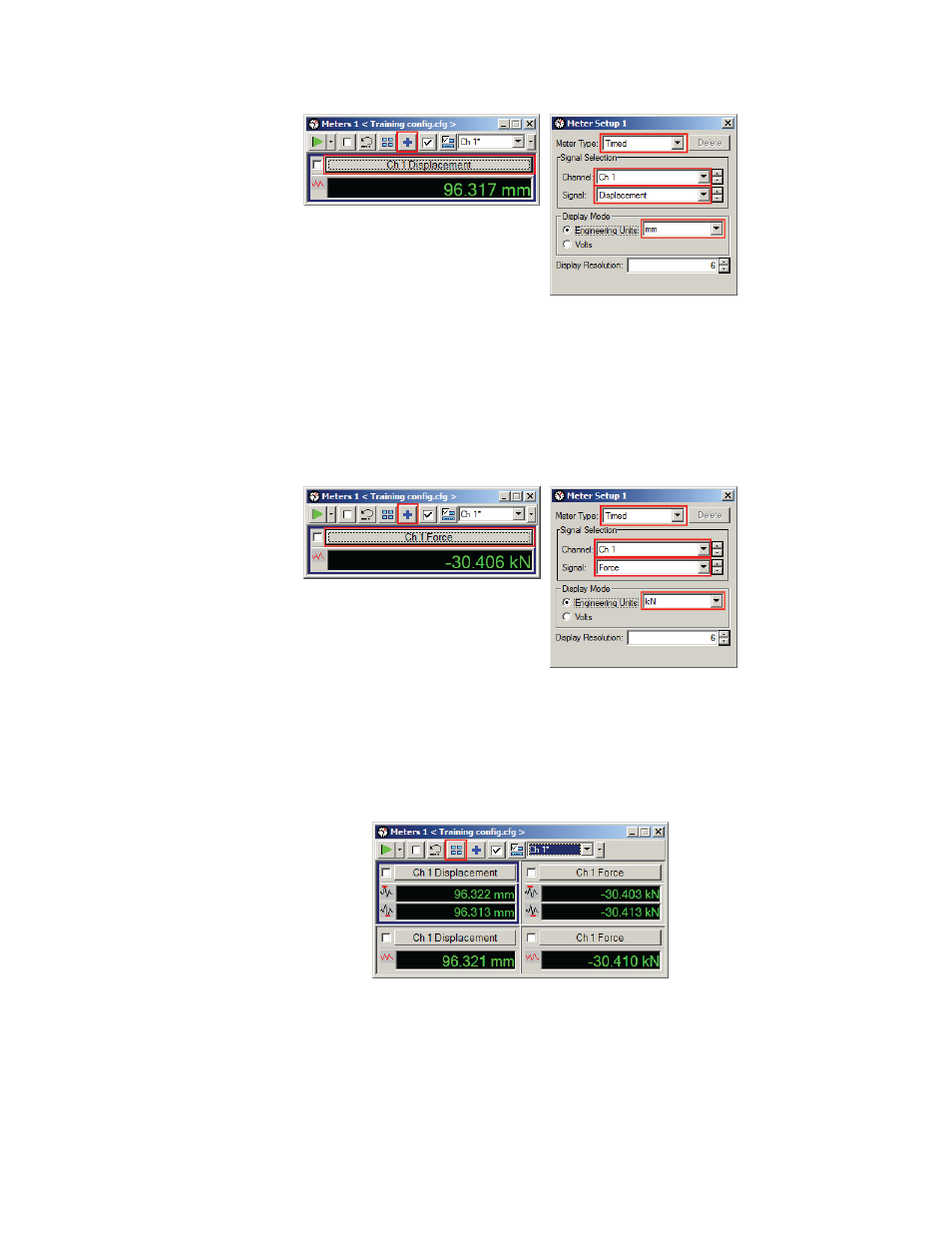

Use the following parameters:
• Meter Type — Timed
• Channel — Ch1 (or other depending on your configuration)
• Signal — Displacement
• Engineering Units — mm
A timed meter provides the current reading of the sensor.
6. Set up a Timed Force Meter.
Use the following parameters:
• Meter Type — Timed
• Channel — Ch1 (or other depending on your configuration)
• Signal — Force
• Engineering Units — kN
7. Align the meters.
Use the Align Meters button to toggle between different meter alignments. Select an alignment that
works for your window layout.
