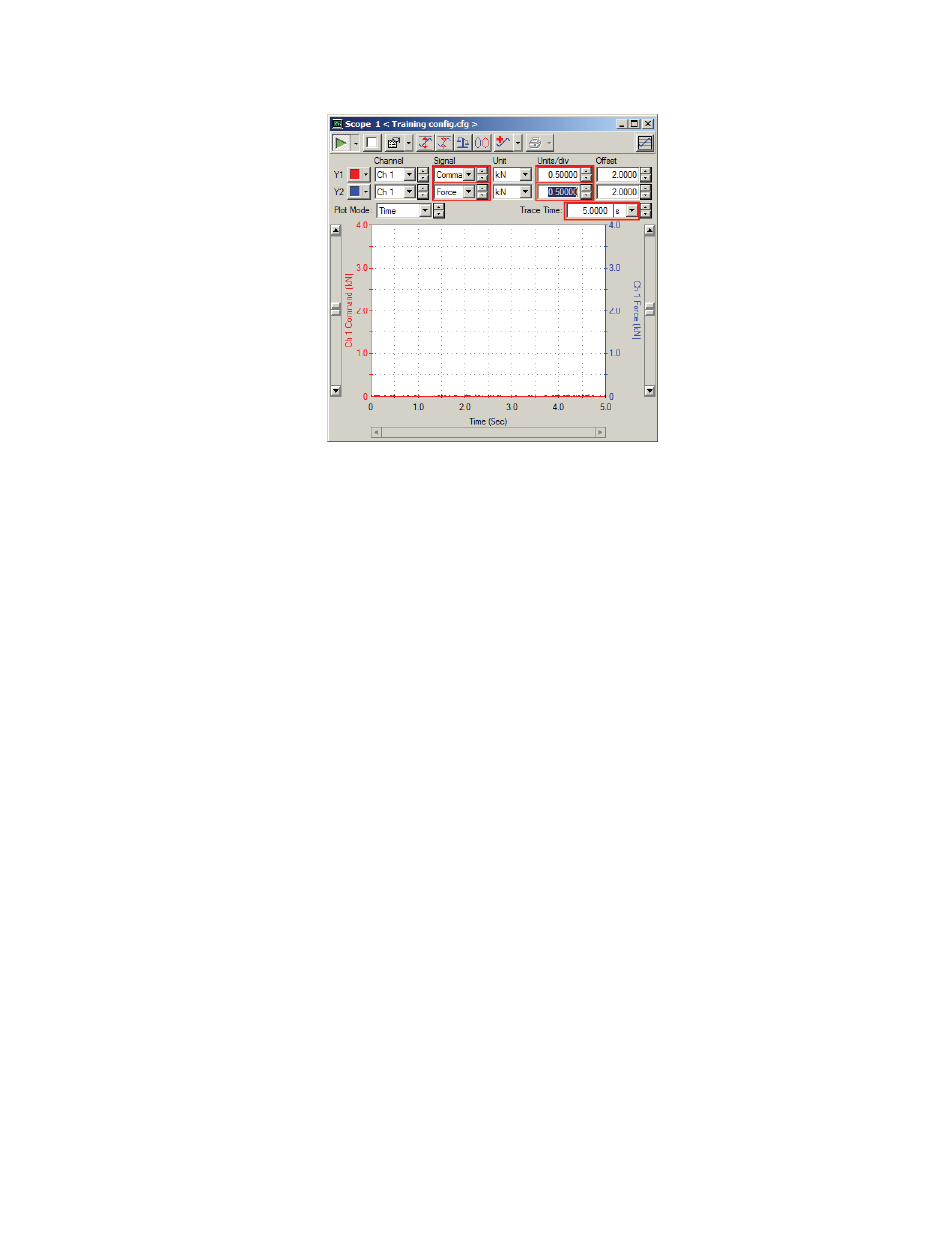

Set up a Scope to compare the command signal to the resulting feedback. In the Station Manager
main window, click the Signal Scope button. Enlarge the scope if necessary, and then set up the scope
as follows:
Y1 parameters:
• Channel — Ch1 (or other depending on your configuration)
• Signal — Command
• Unit — kN
• Units/div — 0.5
• Offset — 2
Y2 parameters:
• Channel — Ch1 (or other depending on your configuration)
• Signal — Force
• Unit — kN
• Units/div — 0.5
• Offset — 2
Time:
• Trace Time — 5.0 s
7. Run the Function Generator.
