Chart interaction – MTS 709 Alignment System User Manual
Page 94
709 Alignment System
Align
94
Note
There could be a display problem if large fonts are selected in the display
properties. See
“Possible Problem with Large Fonts”
on page 149 in the
Appendix section for additional information.
Note

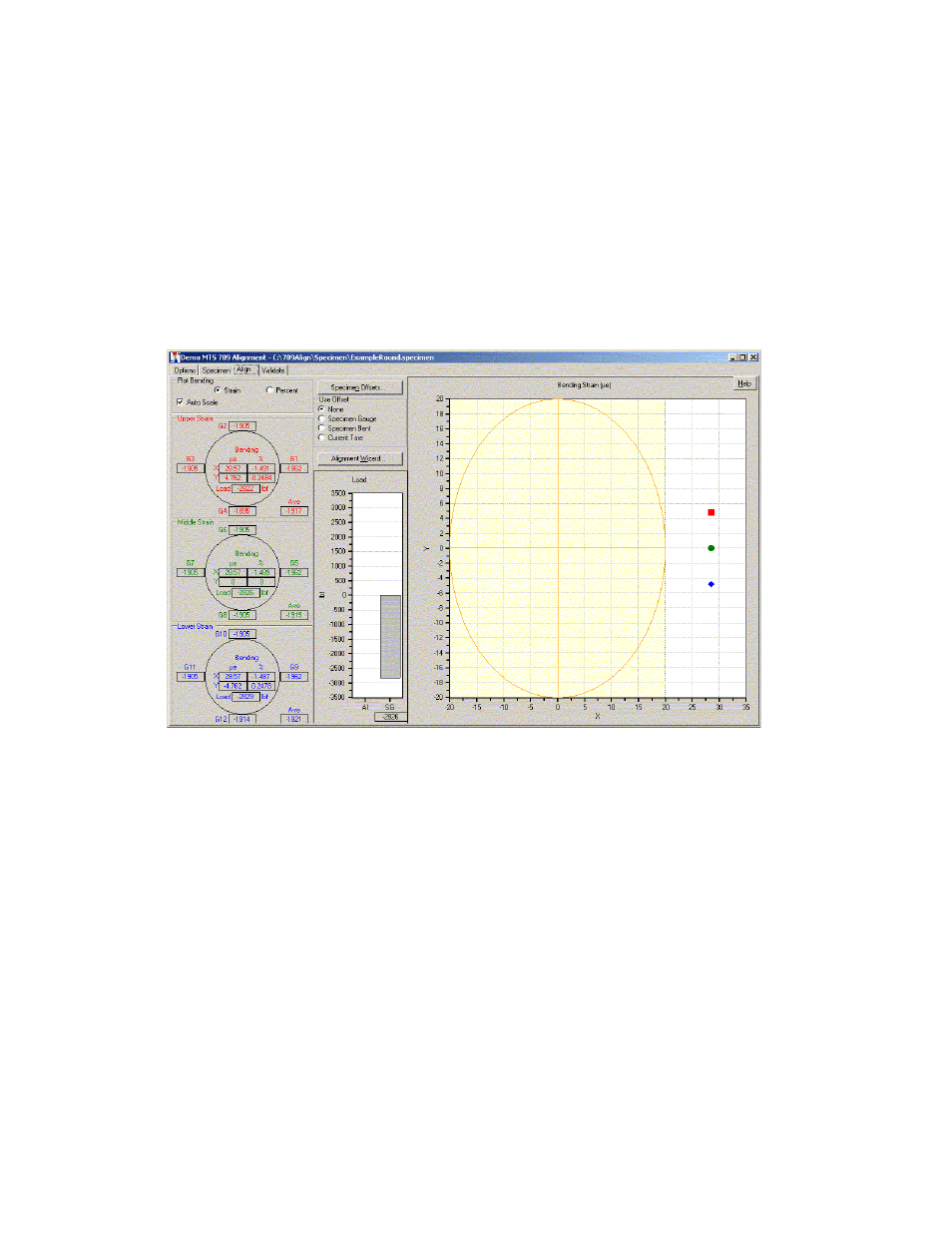

Although the shaded area of the graph will always be rectangular, the
actual target area is within the oval (or circle) outline for round
specimens (as shown below) or within the diamond outline for
rectangular specimens.
Chart Interaction
You can use the chart interaction options to view specific areas of the graph.
•
Translation: Shift + Drag with left mouse button.
•
Scaling: Control + Drag with left mouse button.
•
Zooming: Alt + Drag with left mouse button.
To undo the interaction, use the options to revert back to the original display, use
the Plot Bending Set and Reset buttons, or restart the application.
