National Instruments (NI) FieldPoint Installation
The NI FieldPoint installation consists of installing the FieldPoint software and
configuring the 709 Alignment System with an TCP/IP Address.
Note
Always use the FieldPoint setup supplied on the FieldPoint software CD.
Other versions of FieldPoint might not be compatible and can cause a
FieldPoint error when running the 709 Alignment software.
1. Insert the FieldPoint software CD in the computer’s Compact Disk drive.
2. Start the FieldPoint installation.
A.
Log in to your computer as an administrator.
B.
Make sure no other programs are running.
C.
Double click My Computer.
D.
Double click the Compact Disk drive icon in which the FieldPoint
software CD is installed.
E.
Double click the FieldPointSetup folder.
F.
Double click the autorun.exe icon.

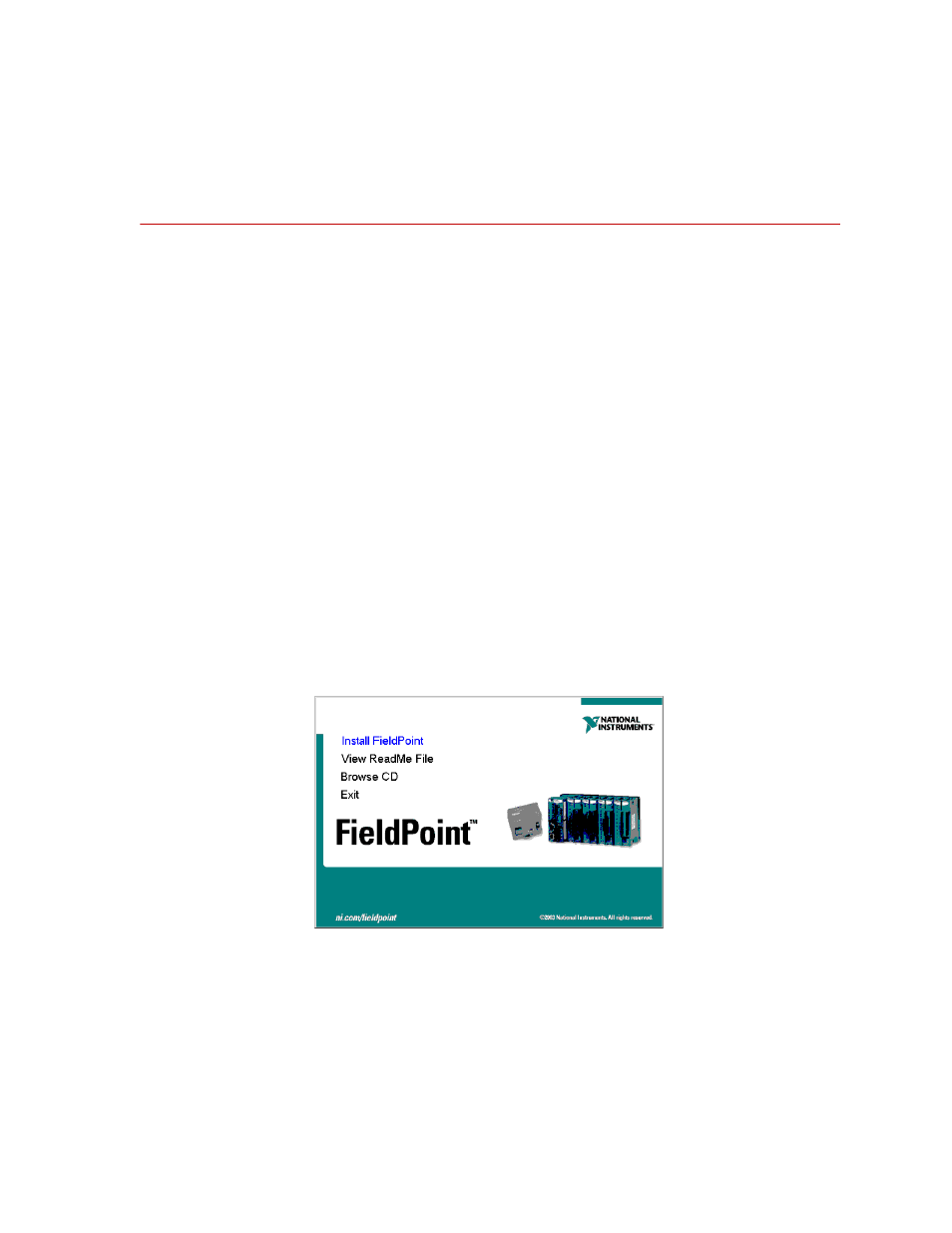

The FieldPoint menu window appears. Click the Install FieldPoint option.
