General information, Upgrading fieldpoint firmware, Hardware 45 – MTS 709 Alignment System User Manual
Page 45
Software Installation
709 Alignment System
Installation
45
Upgrading The Firmware Located On The FieldPoint FP-2000
Hardware
General Information
The current version of the 709Align application is compatible with FieldPoint
6.0.3 software and firmware.
If the 709Align application is being installed on an existing system as an upgrade
to an older version of 709Align, the firmware residing on the FieldPoint FP-2000
hardware may need to be upgraded. The following information details the steps
in performing the firmware upgrade.
Upgrading FieldPoint
Firmware
1. From the Windows Task Bar:
Click on Start > Programs > National Instruments > Measurement and
Automation. This launches the Measurement and Automation application.

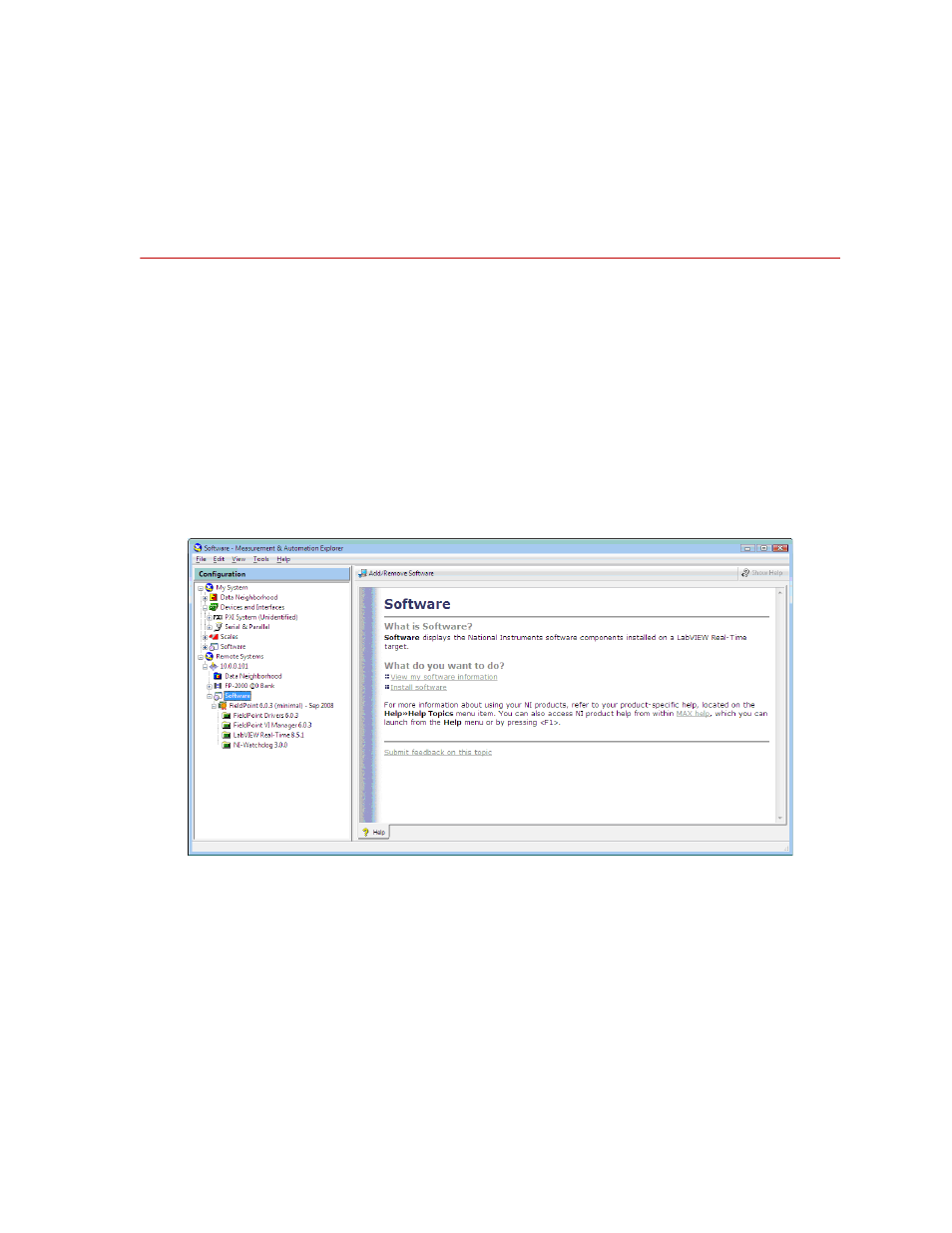

2. In the left window pane, click on Software. This displays the dialog in the
right window pane shown above.
