709 Alignment System
Run Report Generator
Report Generator and Templates
130
Run Report Generator

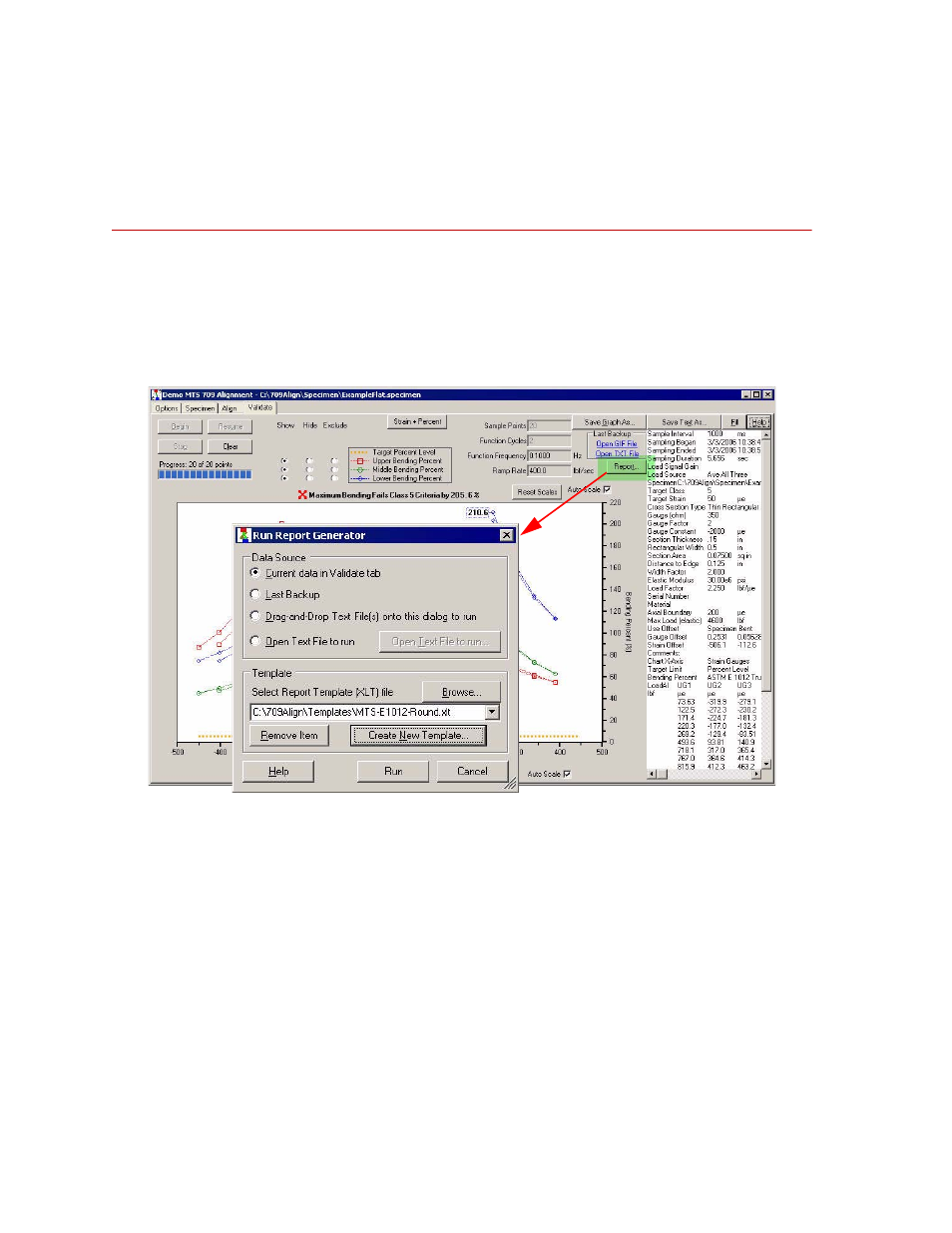

The Report Generator is started by pressing the Report button on the Validate
tab. You can run the 709 Alignment Report Generator without a license, by
running the demo version of the 709 Alignment software.
Note
The Report Generator requires Microsoft Excel 2003.
The dialog has the option to select the data source for the report generation. By
default, the Current data in Validate tab will be used. The second option is to use
the last backup file. The third option is to drag-and-drop the text file(s) onto the
dialog from Windows Explorer, which allows multiple files to be selected and
generated into reports. The fourth option is to open the text file with a standard
open file dialog.
