MK-2000 Pro Revision 01/02, Effective Date January 10, 2002 Page 28
MAINTENANCE AND TROUBLESHOOTING

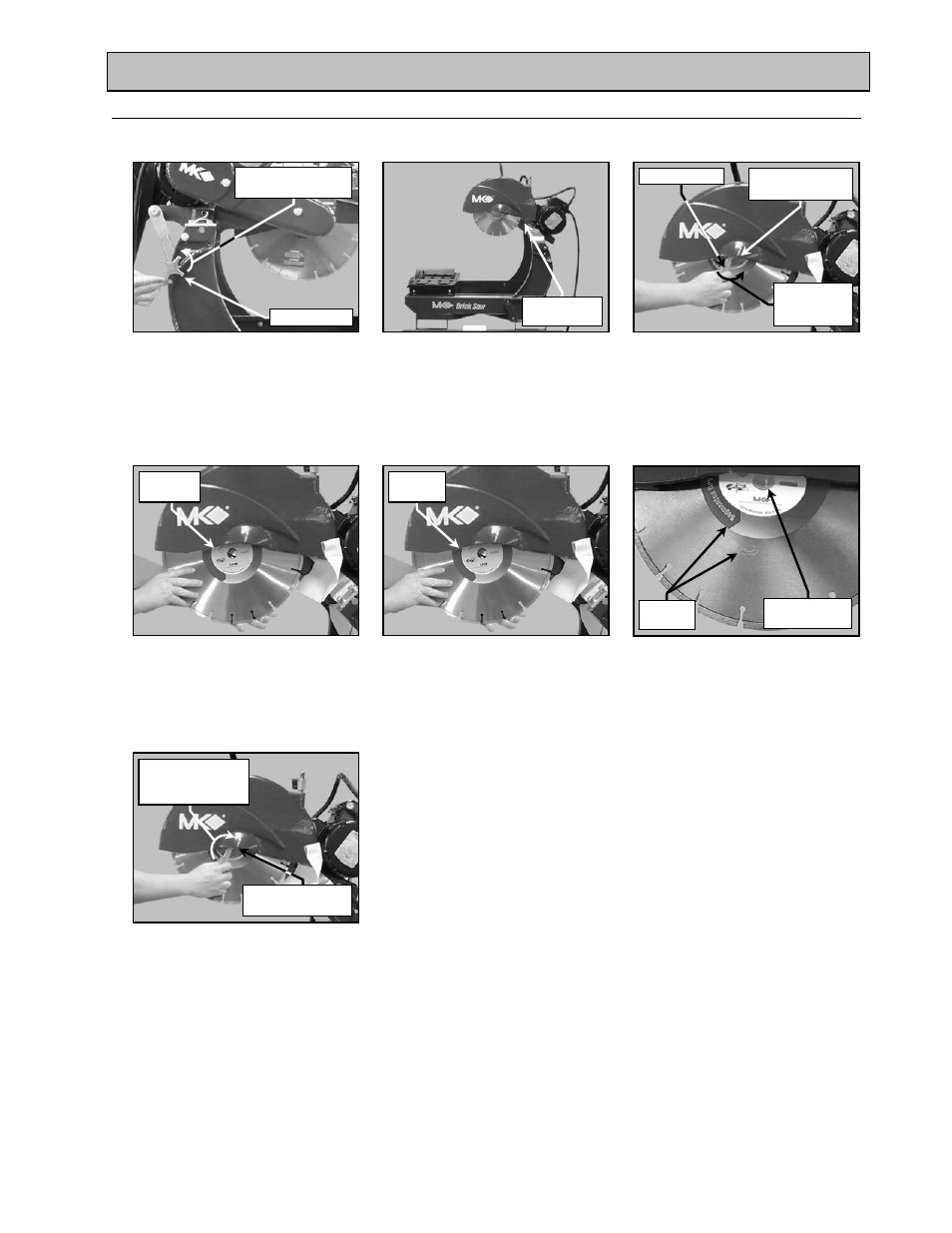

5. Diamond Blade Change-out:
NOTE: When installing the diamond blade retaining-bolt, ensure the threads of the bolt are aligned with the
threads of the drive shaft so as not to “cross-thread" the bolt.
(C)
Identify and remove Retaining
Screw and Outer Flange using
the Blade Wrench
(B)
Raise Cutting Head to the
highest position and tighten the
Locking Handle
(A)
Loosen the Cutting Head
Locking Handle
Retaining Screw
and Outer Flange
Turn counter-
clockwise to
loosen
Blade Wrench
(D)
Remove the old Diamond Blade
(G)
Install the Retaining Screw and
Outer Flange and then tighten
(F)
Verify the Blade is seated on the
Blade Shaft and the Directional
Arrows are facing out
Remove
the Blade
Rotation
Direction
Seat Blade on
Blade Shaft
(E)
Install the new Diamond Blade
onto Blade Shaft
Install the
Blade
Locking Knob
Turn counter-
clockwise to loosen
Cutting Head
raised
Rotate the Blade
Wrench clockwise
to tighten
Retaining Screw
and Outer Flange
