MK-2000 Pro Revision 01/02, Effective Date January 10, 2002 Page 15

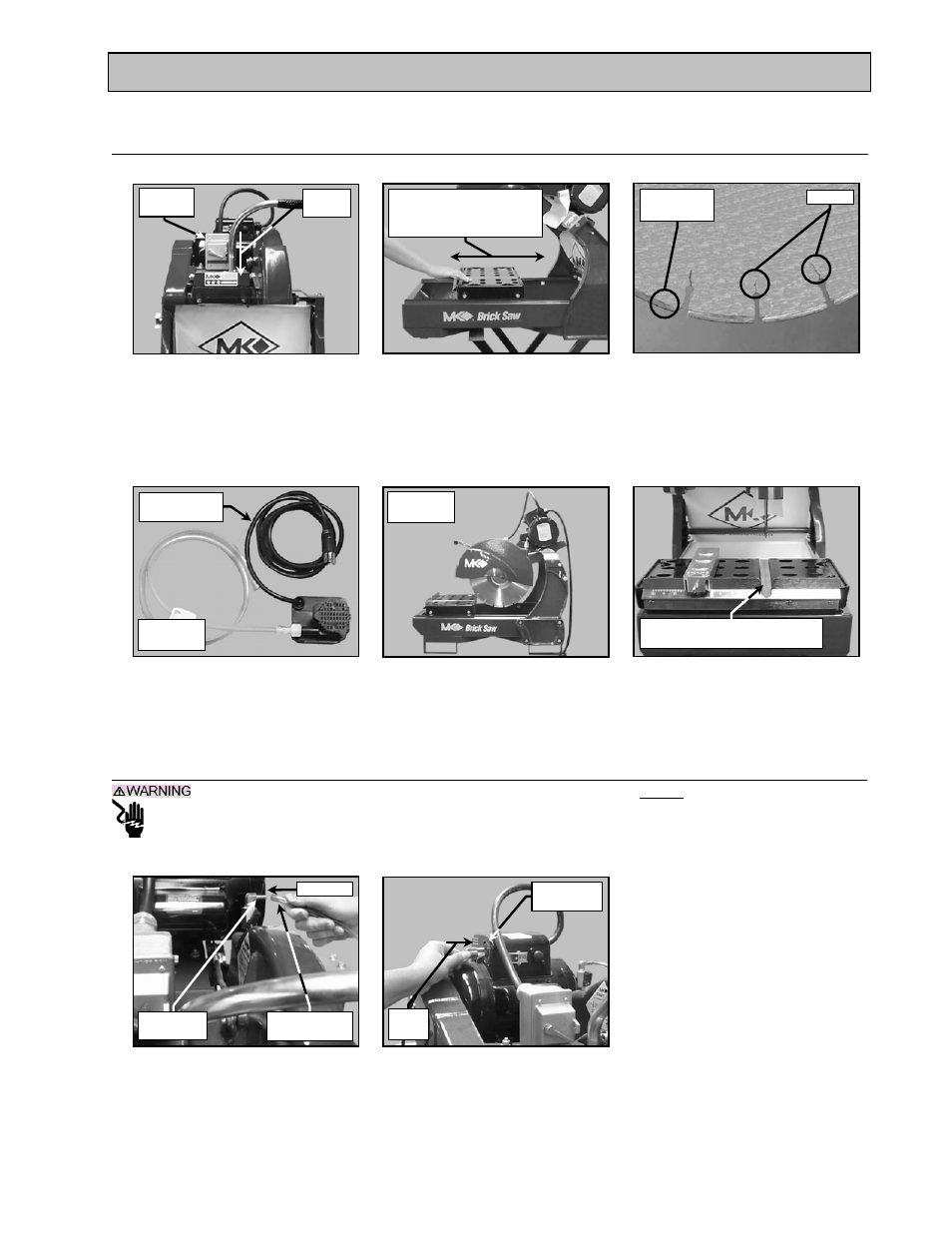

SETUP, ADJUSTMENT and OPERATION
SETUP:
1. Pre-start Inspection:
Prior to beginning work, a pre-start inspection of the saw should be performed.
2. Connecting the Water Pump:
1. To prevent the possibility electrical shock, the MK-2000 PRO MUST be de-energized when
connecting the Water Pump.
2. To prevent the possibility of electrical shock, use only MK Diamond qualified replacement parts
NOTE: To prevent pump damage, the Water Pump must be disconnected if cutting with a Dry Blade.
(A)
Ensure the ON/OFF Switch is
in the OFF position
(B)
Verify the Movable Cutting
Table moves freely along the
Guide Rails
(C)
Inspect the Diamond Blade
for damage, cracks and de-
bonding; verify the blade is
correct for the material being cut
(A)
Connect the Cooling Transfer
Tube to the inlet connection of
the Blade Guard
(B)
Connect the Water Pump
power cord to the connection
found on the back of the motor
ON/OFF
Switch
De-bonding
of segment
Cracks Verify ease of movement
(See Maintenance section
if problems exist)
(D)
Inspect the Pump Assembly for
damage – ensure the cord is
free of cracks or cuts
(E)
Inspect the MK-2000 PRO for
damage – ensure the cord is
free of cracks or cuts
Inspect for
damage
Inspect for
damage
Inspect for
cracks or cuts
OFF
Position
Replace if excessively grooved
(See Maintenance Section)
(F)
Inspect the Wooden Protective
Strip for excessive grooves
Cooling
Transfer Tube
Press on
Inlet
Connection
Install
Plug
Pump
Connection
