MK-2000 Pro Revision 01/02, Effective Date January 10, 2002 Page 12

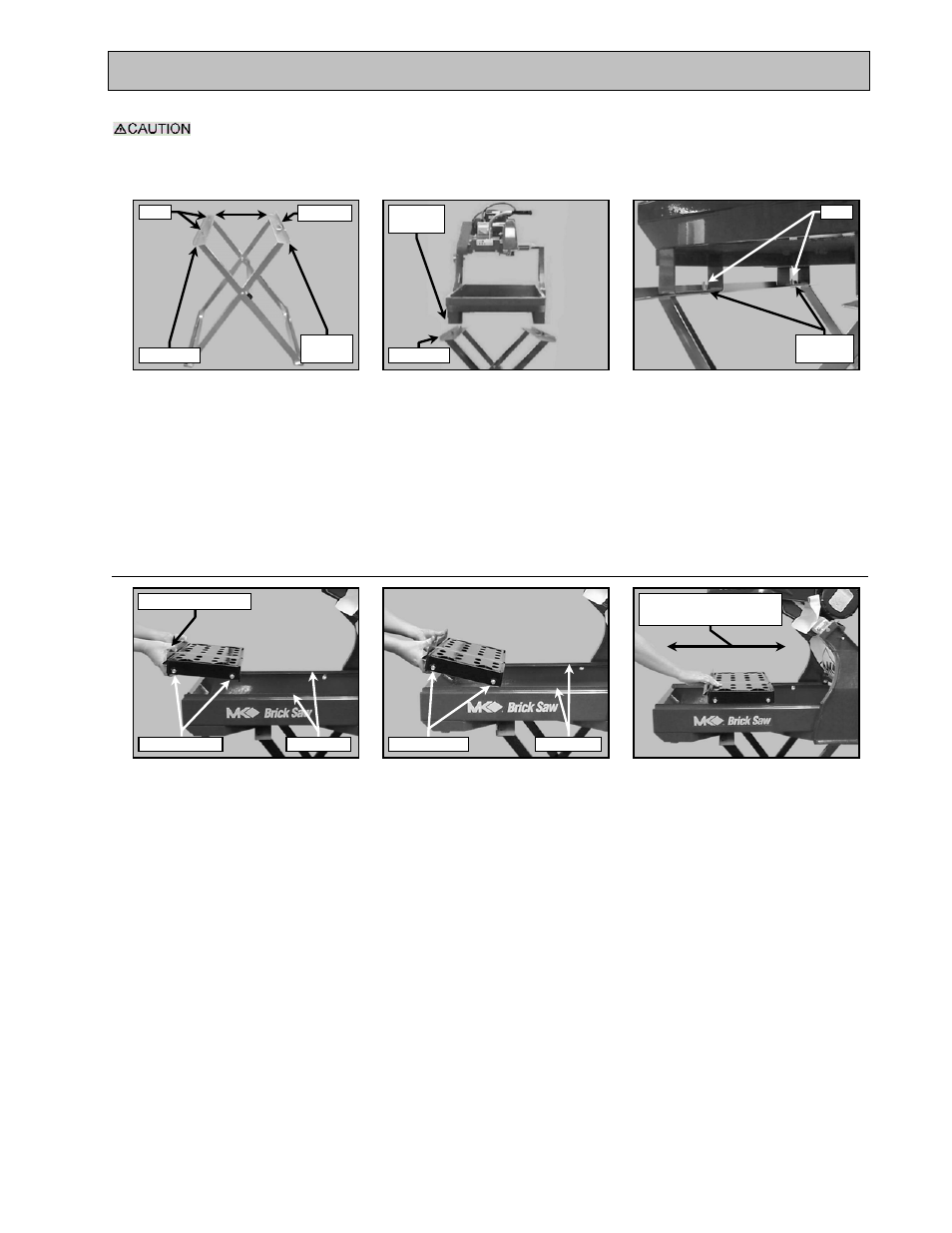

UNPACKING, TRANSPORT, UNIVERSAL STAND and ASSEMBLY
UNIVERSAL STAND:
The MK-2000 PRO weighs one hundred and sixty-five (165) pounds pounds; follow the guidelines
for transport in the TRANSPORT section, when placing it on the stand.
Note: If using the MK Diamond, Universal Stand, follow the following steps.
ASSEMBLY:
Follow the assembly instructions in this section to prepare your MK-2000 PRO for operation.
1. Movable Cutting Table Installation:
(A)
Open the Universal Stand and
place it on flat surface then
identify the Post side and
Register side of the Stand
(B)
Orient the Saw to the Stand;
ensure the Postholes located on
the two Left Feet of the Saw are
centered above the Stand Posts
(C)
Verify the Saw is seated on the
stand with the Stand Posts
through the Saw Postholes
Posthole
Side
(C)
Verify Movable Cutting Table is
seated correctly
(B)
Seat Movable Cutting Table
Roller Wheels on Saw Guide
Rails
(A)
While holding the front, position
Movable Cutting Table Roller
Wheels above Guide Rails
Cutting Table Front
Roller Wheels Guide Rail Guide Rails Roller Wheels
Move back and forth to
verify ease of movement
Post Register
Post Side
Register
Side Post Side
Saw
Posthole
Post
