MK Diamond MK-2000 Pro - Manual (Page 21)

MK-2000 Pro Revision 01/02, Effective Date January 10, 2002 Page 21

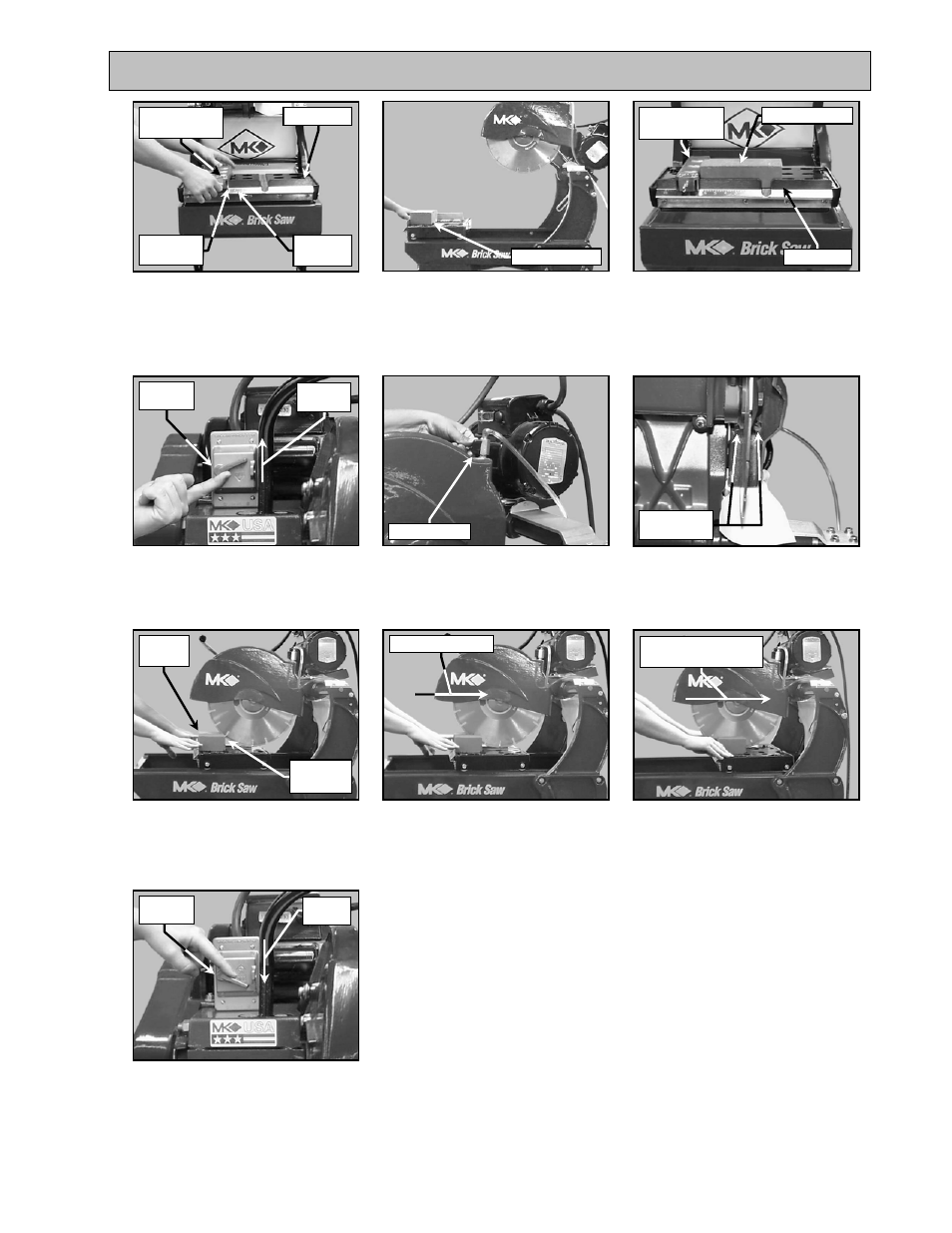

SETUP, ADJUSTMENT and OPERATION
(F)
Verify the Masonry Piece is
seated against the Ruler/Stop
and the Adjustable Cutting Guide
(D)
Set the Adjustable Cutting Guide
to the desired length indicated
on the side of the Ruler/Stop
closest to the Wooden Strip
Ruler
Markings
Measuring
point
Ruler/Stop Adjustable
Cutting Guide
(E)
Place the Masonry Piece onto
the Movable Cutting Table
(G)
Place the ON/OFF Switch in
the ON position
(I)
Verify cooling flow exists on
both sides of the blade
(H)
Open the Cooling Flow Control
Valve and adjust cooling flow
ON/OFF
Switch
OFF
Position
Cooling Flow
Points
(L)
Continue to push the Masonry
Piece into the Blade until the
cut is complete
(K)
Slowly push piece into the
blade until cutting begins
(J)
Move the Cutting Table to
position the Masonry Piece in
front of the Blade
Hold in
position
Move into
position
Push slowly to cut Continue pushing
until cutting complete
(M)
Turn the Saw off when cutting
is complete
ON/OFF
Switch
OFF
Position
Masonry Piece Adjustable
Cutting Guide
Ruler/Stop Masonry Piece
Control Valve
