Global Drive Cam Loader
Operation
Editing settings on the worksheet
6.3.6 Creating LCx files
Optionally, you can create the LCx files for one or several slaves simultaneously.
[ Each LCx file is assigned to a drive axis. The LCx file contains the motion profiles of the
corresponding axis and other axis-specific data. With the 9300 servo PLC and ECS, the
LCx file also includes the defined cam tracks and position markers.
[ The Cam Loader stores the created LCx files in the subdirectory of the corresponding
slaves.
[ For "9300 EK (9300 servo cam profiler)" target systems, Cam Loader creates LC7 files, for
"9300 servo PLC" and "ECS" target systems LC9 files.
X
How to create an LCx file for a slave...

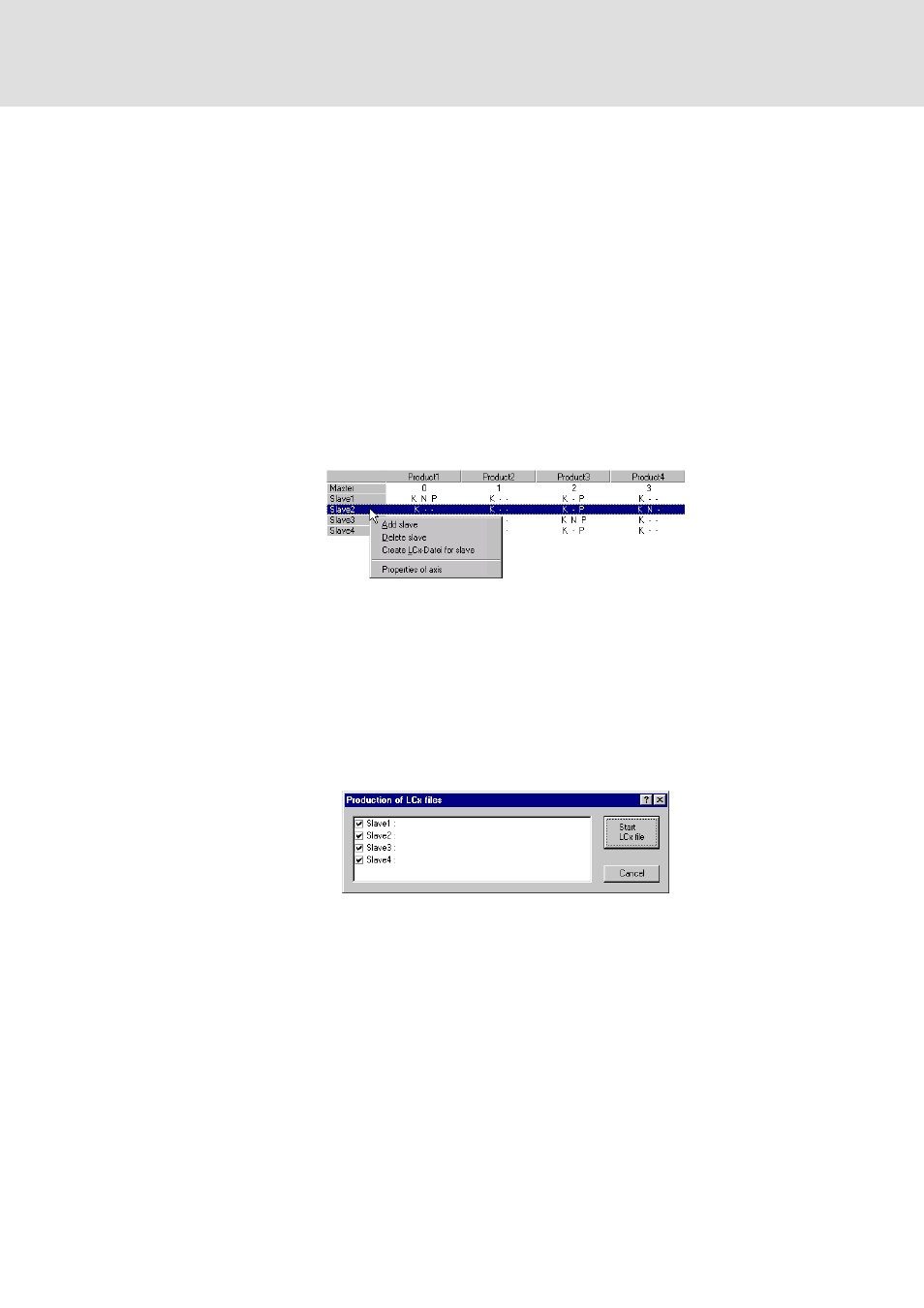

1. Position the mouse pointer over the name field of the slave for which you want to
create an LCx file and open the context menu with a click on the right mouse key:
2. Select the command Create LCx file for slave from the context menu.
X
How to create LCx files for several slaves simultaneously...
1. Select FileWCreate LCx file....
2. Go to the Production of LCx files dialog box and select the slaves for which the LCx
files shall be created.
• In the default setting, all slaves are selected:
3. Click the Start LCx file button to create the LCx files for the selected slaves and close
the dialog box.
