Global Drive Cam Loader
Operation
Creating a new project
28 1.1 EN - 05/2005
L
6.1.4 Step 4: Defining the product properties
I
Tip!
In the following text, the term "Product" is used for cam or motion profiles because
product-dependent sequences of motion can be achieved through different cam
profiles.
X
Defining the product properties...

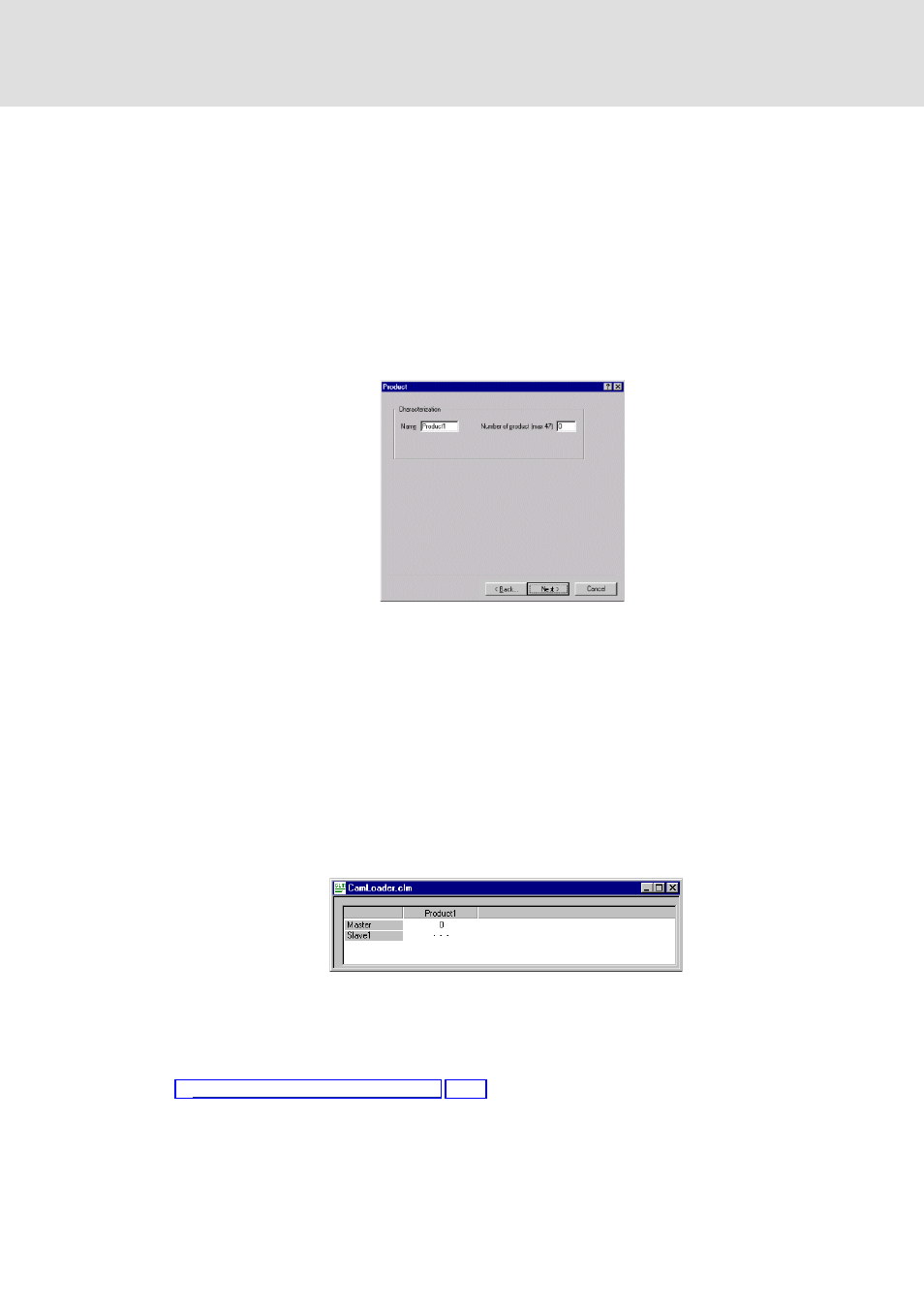

1. Go to the Product dialog box and select the product properties:
• The name is only indicated for a better overview within the Cam Loader, other-
wise it is not of importance.
• The maximum product number depends on the type of target system selected
for the axis.
• Later on, the user can use the product number (cam profile number) to activate
the corresponding motion profile in the axis.
• "0" is assigned to the first product data set.
2. Click Finish to complete the creation of the new project.
After the basic settings have been selected by means of the wizard, the master, the slave
and the product are indicated on the worksheet:
Next steps
Now you can assign the files for the slave to the product and add more slaves and products
to your worksheet, if required.
4Editing settings on the worksheet (^ 30)
