Global Drive Cam Loader
Operation
Creating a new project

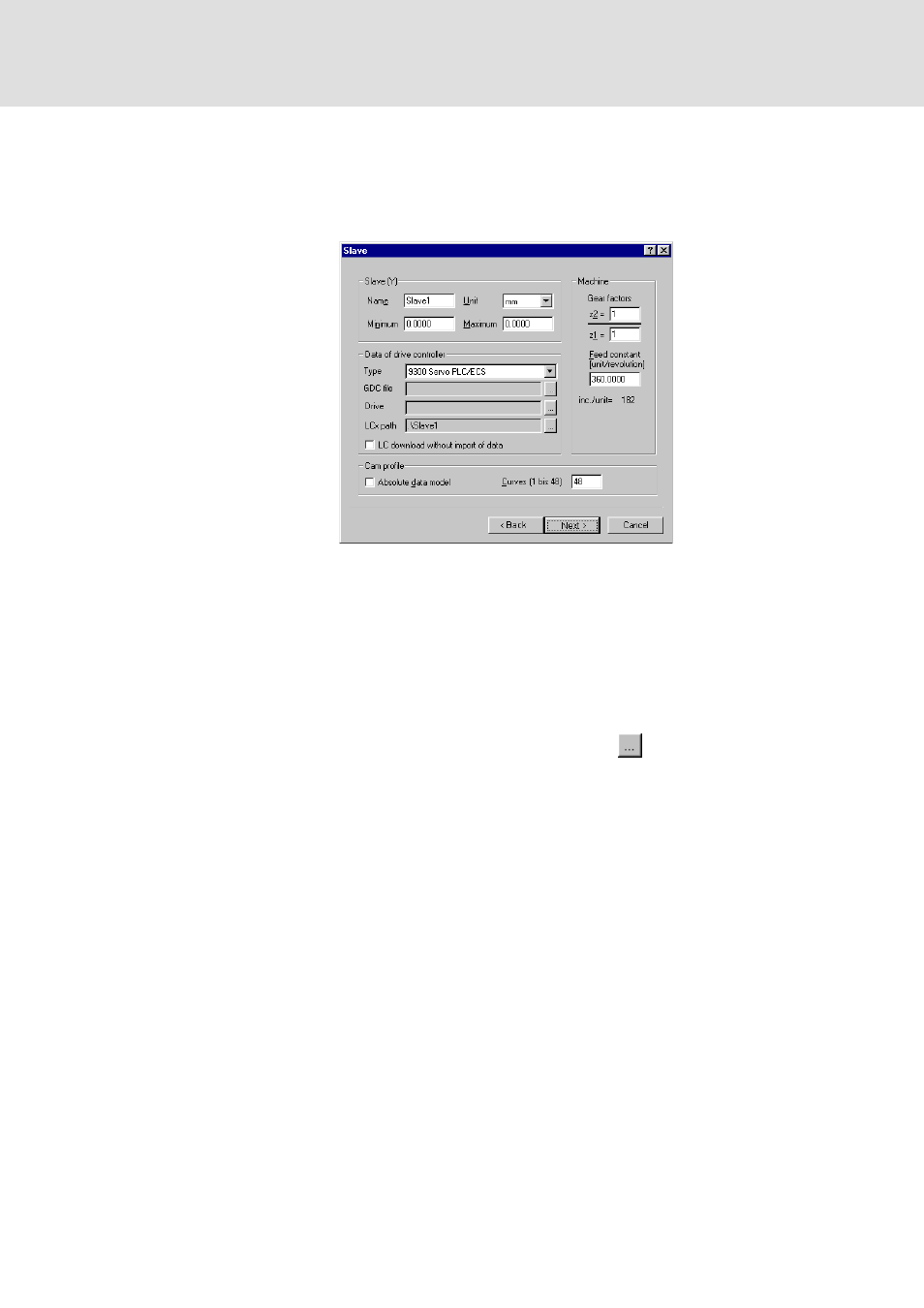

6.1.3 Step 3: Defining the properties of the slave
X
How to define the properties of the slave...
1. Go to the Slave dialog box and select the properties of the slave.
• The Name of the slave is indicated on your worksheet. It is also used as name for
the LCx file. The Cam Loader creates a subdirectory with the same name in the
project directory. The subdirectory is used to store the LCx file/script file and, in
turn, contains a subdirectory called "Import data" which is used in the default
setting to store the import files.
• When selecting the Type "9300 EK (9300 servo cam profiler)" you can optionally
indicate the corresponding GDC file. The Gear factors and the Feed constant will
then be automatically read from this file.
• If you have an online connection you can use the button after the Drive in-
put field to assign an axis to the slave.
• If the selection LC download without import of data is active only the LCx file
that already exists in the LC path will be downloaded. There is no compilation.
• The selections under Absolute data model and Curves have a direct influence on
the maximum number of points. If you need more points for the table of points
deactivate the selection Absolute data model and use the relative data model
or reduce the value under Curves.
• The maximum number of Curves depends on the selected controller type.
2. Click Next to proceed with the next step.
