4.1.3 Commissioning of production machinery
For the commissioning of production machinery, you have to transfer the motion profiles,
cam tracks and position markers as well as the user program and the parameter sets to the
target system.
[ In this case, the Cam Loader is only used to create the LCx files.
[ The Global Drive Loader is used to transfer the drive data to the target system:

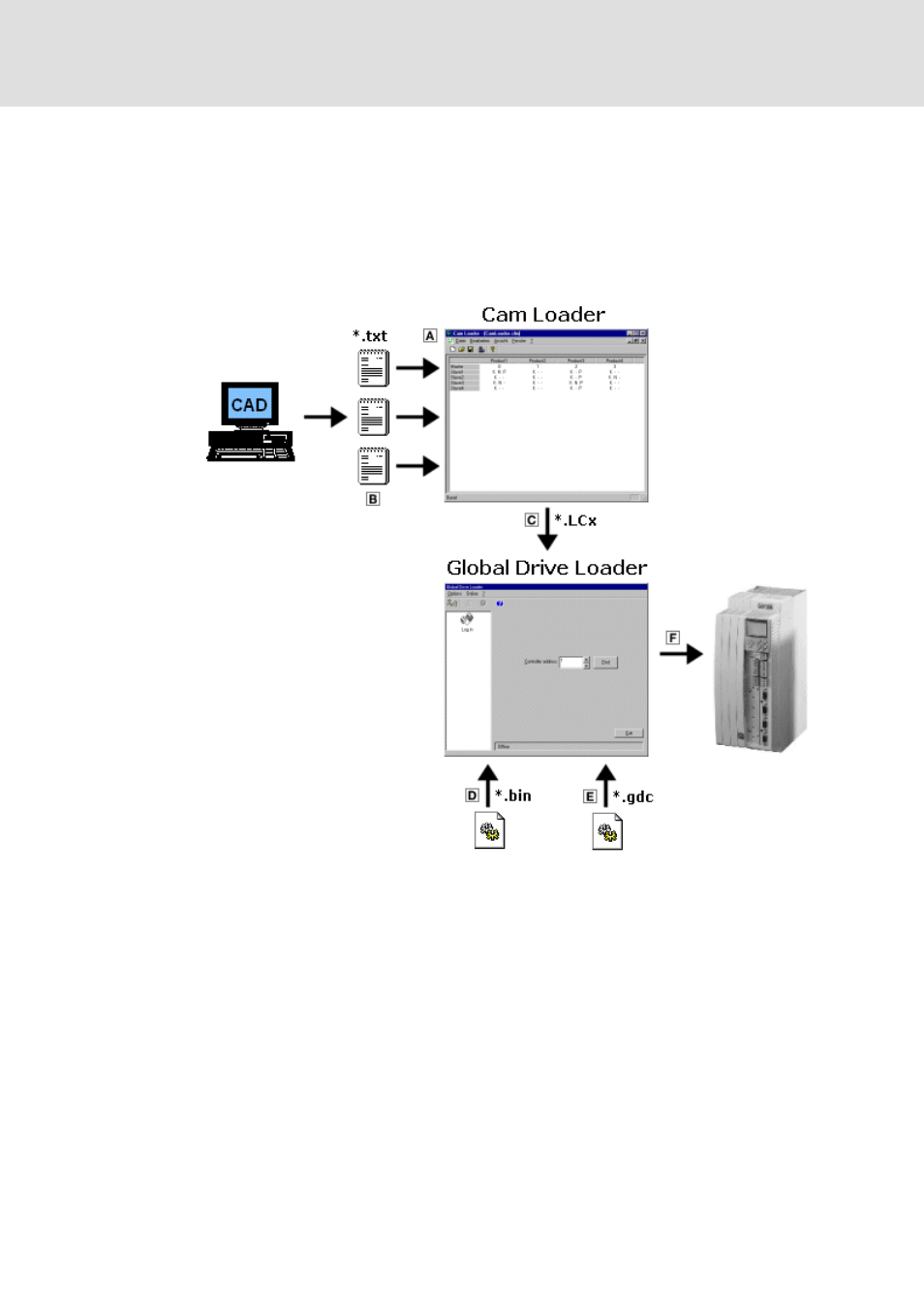

Basic proceeding:
1. Use the user interface of the Cam Loader 0 and create a new Cam Loader project. The
axes subdirectories for existing and future product data (motion profiles, cam tracks
and position markers) are created automatically.
2. The Cam Loader assigns the product data 1, which has e.g. been created by means of a
CAD system and is available as tables of points according to VDI directive VDI 2143, to
the corresponding axes/products.
3. Before the data is downloaded by means of the Global Drive Loader, the Cam Loader is
started without user interface by means of the script file to create the LCx file or update
it if the product data has changed.
– The required script file can be automatically created by the Cam Loader.
