Installation of the E93ZWL2 air lock
Mounting of controllers and air locks
18
l
E93ZWLX DE/EN/FR 1.0

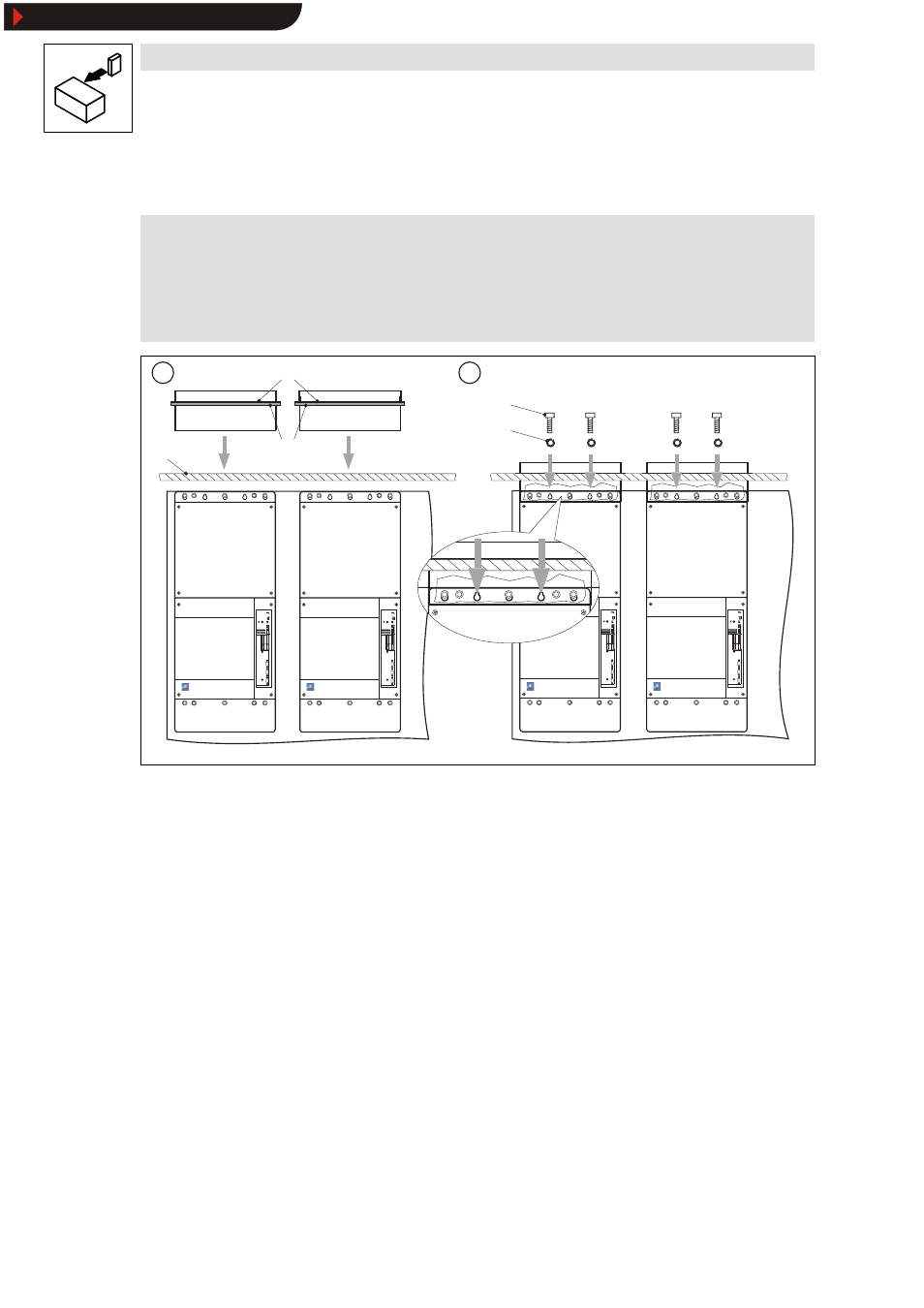

4.4.2 Fix air locks to mounting plate
Note!
z The mounting plate must be suspended in the control cabinet.
z Lenze recommends to install gaskets between the air locks and the top of the
control cabinet. The gasket (yard ware) is not part of the items supplied with the
air locks.
0
1
2
11 2
4
3
93ZWL007
Fixing collar of air lock
Gasket
Top of control cabinet
Hexagon socket screw M8 × 25 mm
Spring washer M8
1. Glue the gaskets under the fixing collars of the air locks and insert the air locks into the
recesses in the top of the control cabinet.
2. Fix each air lock to the mounting plate exactly at the illustrated points using 2 hexagon socket
screws and spring washers.
