Installation of the E93ZWL air lock

Preparations at the top of the control cabinet

11

l

E93ZWLX DE/EN/FR 1.0

3.4.5

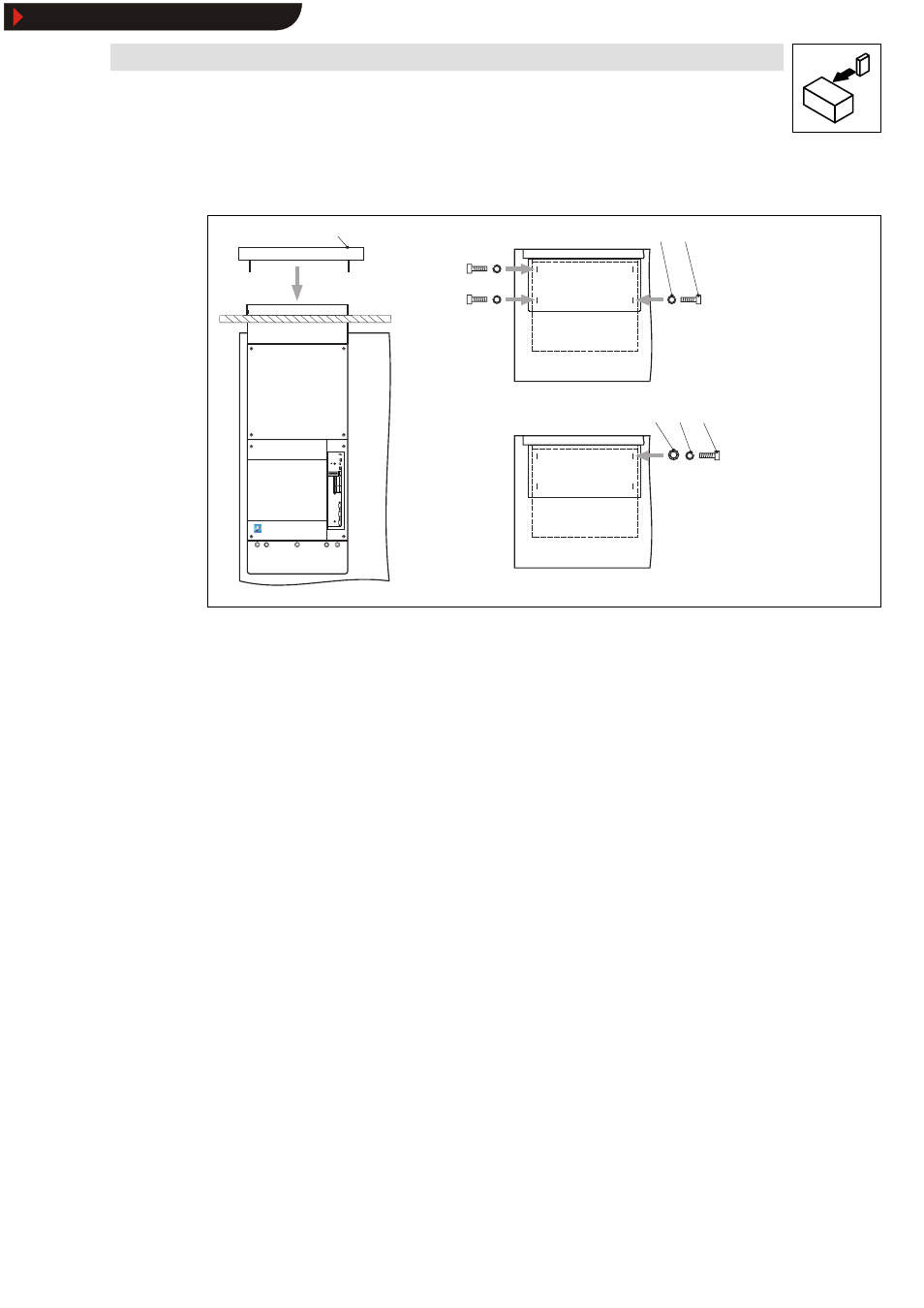

Fix cover on air lock

0



‚

ƒ

1

3

2 1

3

93ZWL019

Cover of air lock

Hexagon socket screw M6 × 16

Spring washer M6

Tooth lock washer M6

1. Put the cover on the air lock.

2. Fix the cover to the air lock using 3 hexagon socket screws and spring washers.

3. Ground the cover at the air lock using 1 hexagon socket screw, spring washer and tooth lock

washer.
