Installation of the E93ZWL air lock
Preparations at the top of the control cabinet
10
l
E93ZWLX DE/EN/FR 1.0

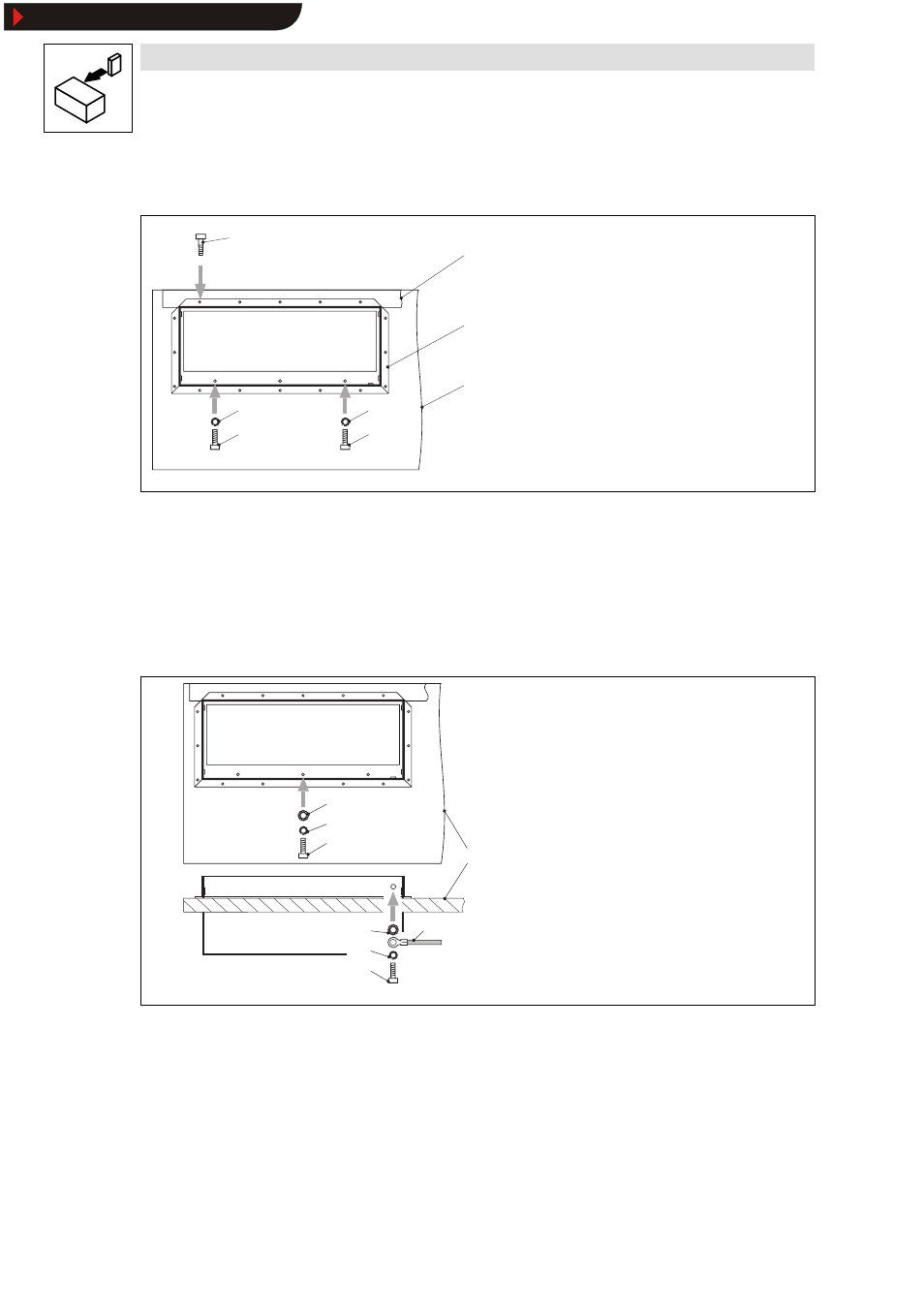

3.4.3 Fix air lock to controller and to top of control cabinet
2
1
0
3
4
5
4
5
93ZWL018
Self-cutting screw Air lock Spring washer M6
Mounting plate Top of control cabinet Hexagon socket screw M6 × 16 mm
z Fix the air lock to the top of the control cabinet using 16 self-cutting screws.
z Fix the air lock to the controller exactly at the illustrated points using 2 hexagon socket screws
and spring washers.
3.4.4 Ground air lock
0
1
2
3
1
2
4
3

‚
93ZWL22
Top of control cabinet Spring washer M6 Grounding conductor of control
cabinet (not part of the items
Tooth lock washer M6 Hexagon socket screw M6 × 16 mm
cabinet (not part of the items
supplied)
1. Ground the air lock exactly at the illustrated point of the controller using 1 hexagon socket
screw, spring washer and tooth lock washer.
2. Ground the air lock exactly at the illustrated point of the control cabinet using 1 hexagon
socket screw, spring washer, grounding conductor and tooth lock washer.
