Installation of the E93ZWL air lock

Preparations at the top of the control cabinet

8

l

E93ZWLX DE/EN/FR 1.0

3.4

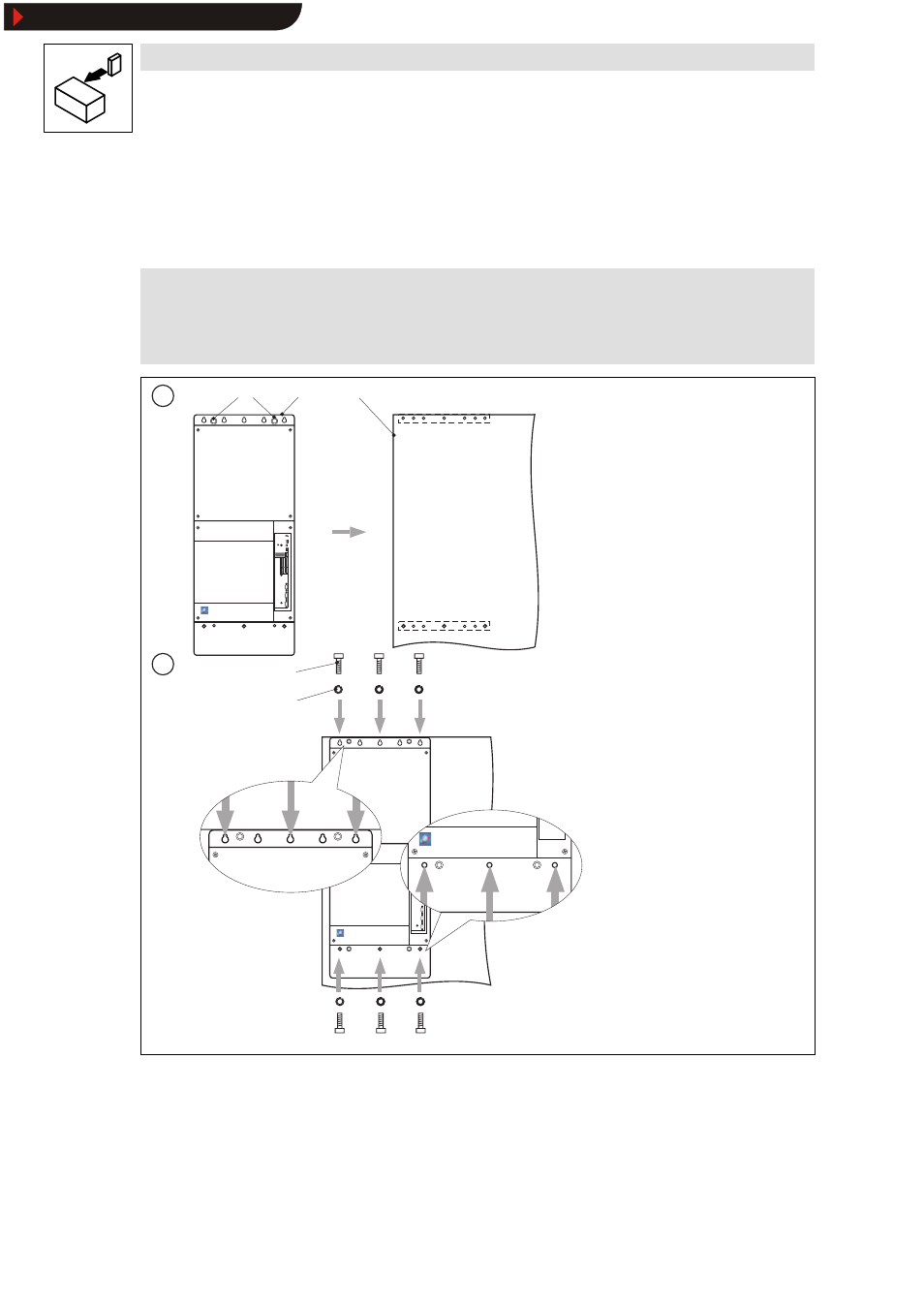

Mounting of controller and air lock

3.4.1

Fix controller on mounting plate

Danger!

Risk of injury due to the high weight of the controller.

The controller has to be carried using the eyebolts and an adequate lifting tool.

1

4

3

1

0

2

2

93ZWL016

Eyebolts

Mounting plate

Spring washer M8

Controller

Hexagon socket screw M8 × 25 mm

1. Put the controller on the mounting plate.

2. Fix the controller on the mounting plate exactly at the illustrated points using 6 hexagon

socket screws and spring washers.
