Preface
1
l
E93ZWLX DE/EN/FR 1.0
1 Preface
1.1 About these Mounting Instructions
z These Mounting Instructions serve as basis for safety-oriented operation on and with the air
lock and contain safety instructions that have to be observed.
z The Mounting Instructions must always be complete and in perfectly readable condition.

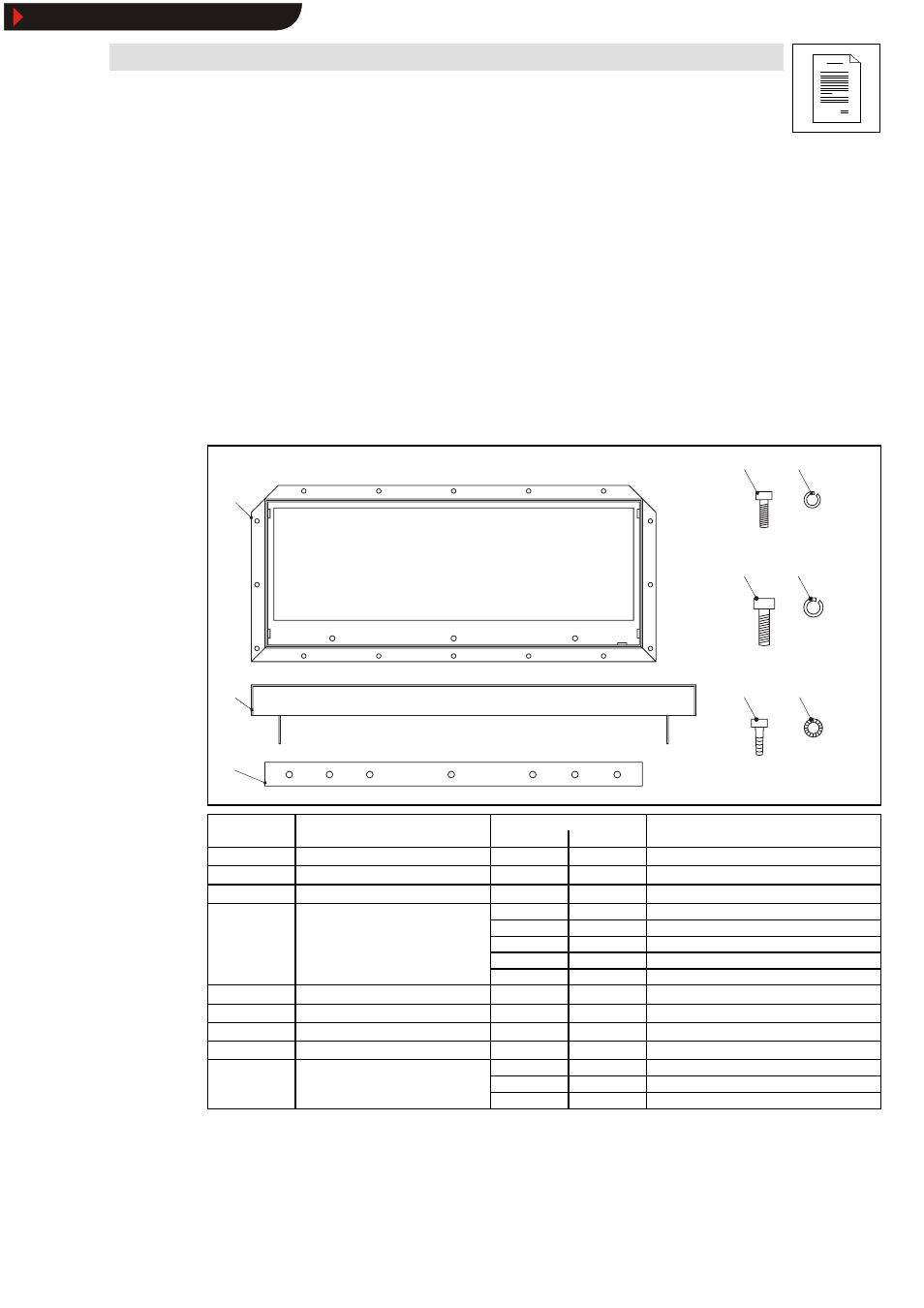

1.2 Scope of supply
0
1
2
5 6
7 8
3 4
93ZWL020
Position Description Amount Function Position Description
E93ZWL E93ZWL2
Function
Air lock 1 2
Cover of air lock 1 1
Mounting rail 2 4 Fixing of controller on mounting plate
Hexagon socket screw M6 × 16 mm 3 3 Fixing of cover Hexagon socket screw M6 × 16 mm
1 1 Fixing and grounding of cover
2 4 Fixing of air lock to controller
1 2 Fixing and grounding of air lock to controller
1 2 Grounding of air lock at control cabinet
Spring washer M6 8 16 See
Hexagon socket screw M8 × 25 mm 12 24 Fixing of controller and mounting rail
Spring washer M8 12 24 See
Self-cutting screw M6 (Rittal) 16 32 Fixing of air lock to control cabinet
Tooth lock washer M6 1 2 Grounding of cover Tooth lock washer M6
1 2 Grounding of air lock at controller
1 2 Grounding of air lock
