Installation of the E93ZWL2 air lock

Mounting of controllers and air locks

17

l

E93ZWLX DE/EN/FR 1.0

4.4

Mounting of controllers and air locks

4.4.1

Fix controllers on mounting plate

Danger!

Risk of injury due to the high weight of the controller.

The controller has to be carried using the eyebolts and an adequate lifting tool.

1

4

3

1

0

2

2

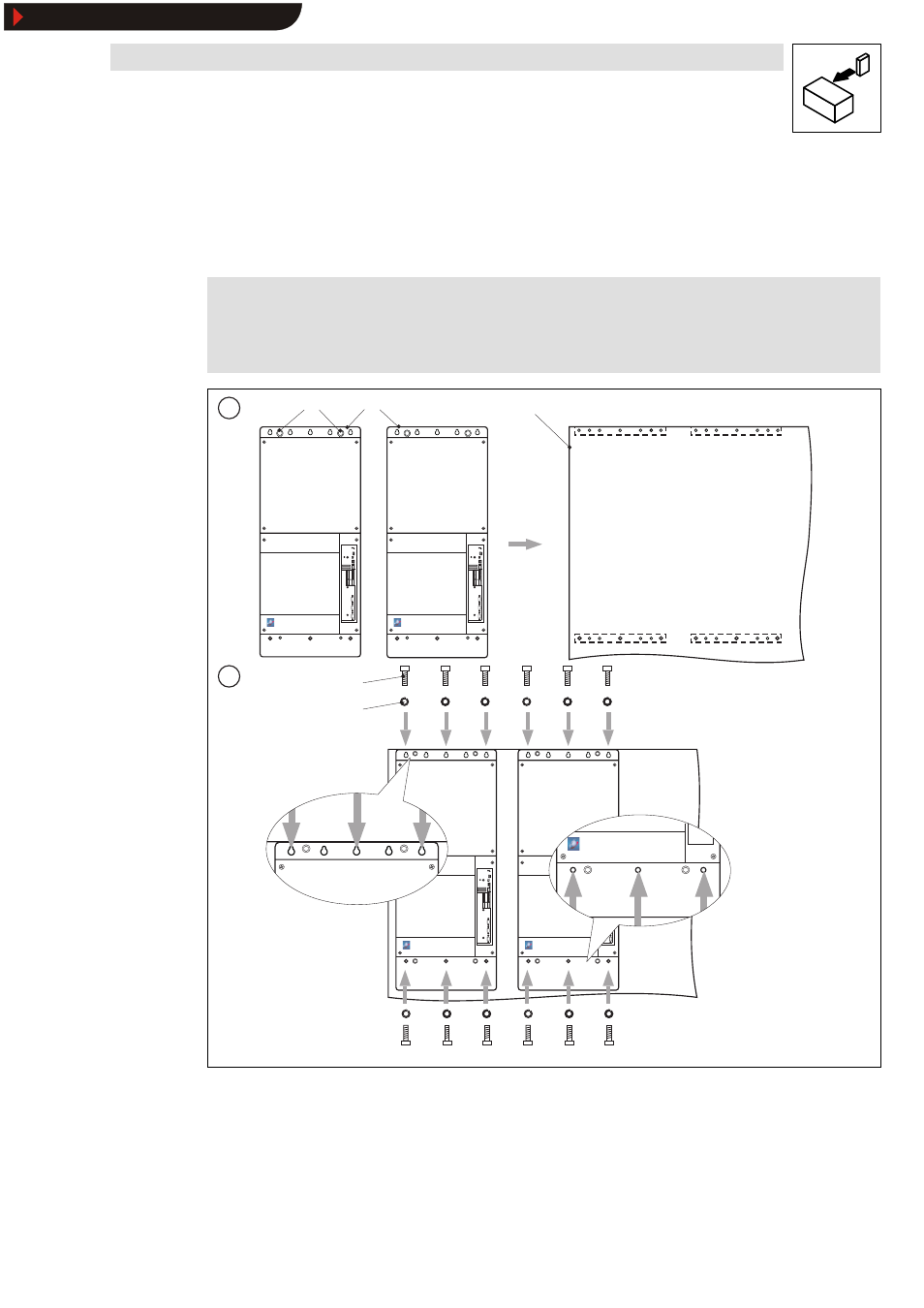

93ZWL006

Eyebolts

Mounting plate

Spring washer M8

Controller

Hexagon socket screw M8 × 25 mm

1. Put the controllers on the mounting plate.

2. Fix each controller on the mounting plate exactly at the illustrated points using 6 hexagon

socket screws and spring washers.
