40
Parameter setting

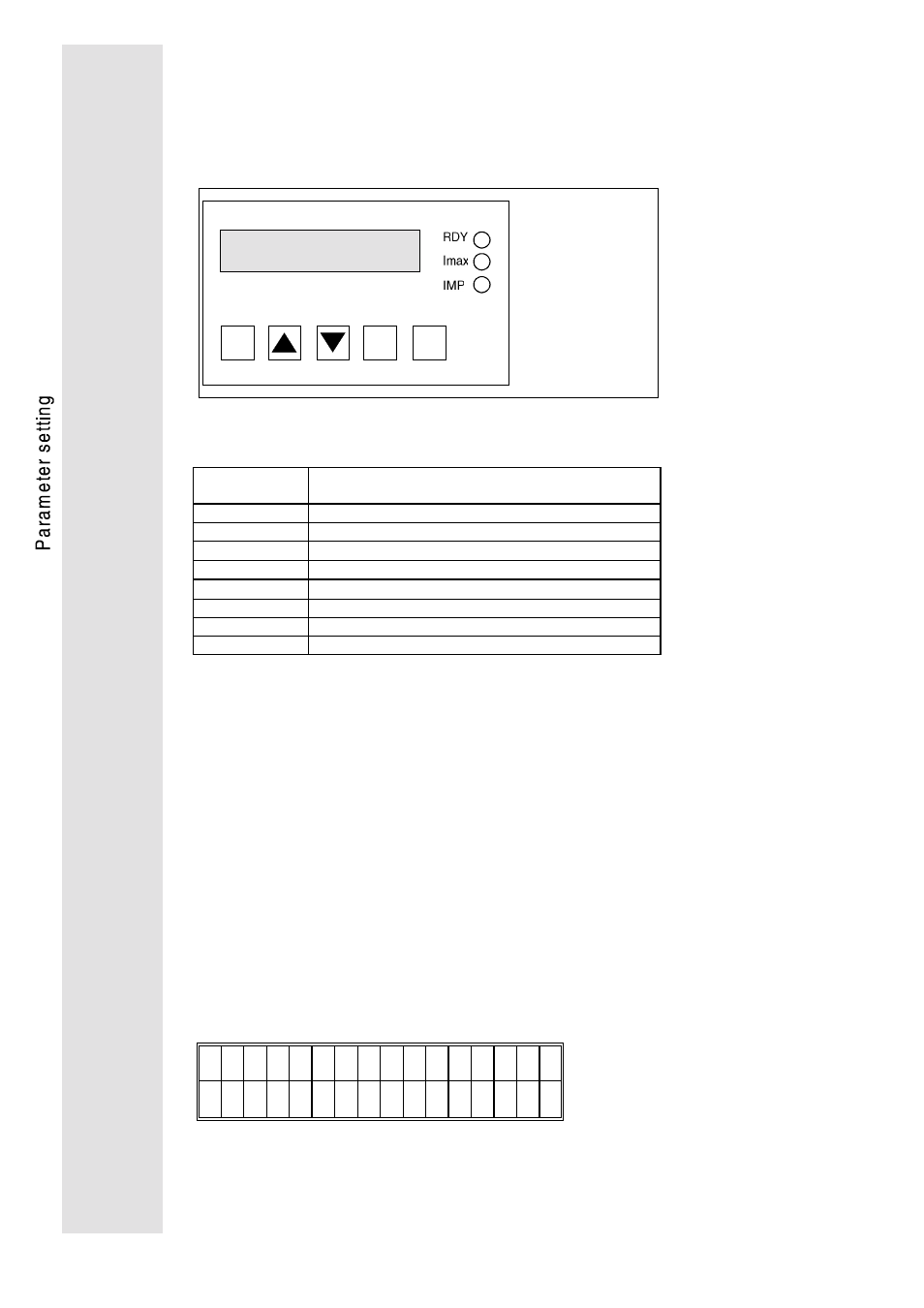

1. LCD display
Ready (green)
Curr. limit I
max (red)
Im pu lse in hib it
(ye llow )
Keys
SH STP PRG
1.1. Key functions
Key Function
PRG Change between code and parameter level
▲ Increase displayed value
▲ + SH Rapid increase of displayed value
▼ Reduce displayed value
▼ + SH Rapid reduction of displayed value
SH + PRG Execute change. Reset after fault indication
STP Inhibit controller (see note below)
SH + STP Enable controller
Note
•
For the execution command SH+PRG and the enable command SH+STP first
press the SH key and hold, than press the PRG or STP key.
•
When inhibiting the controller by pressing the STP key, it must be enabled
again by using the SH+STP command. Only then can it be
enabled via terminal 28 or interface.
1.2. Plain-text display
The LCD display constists of two lines of 16 characters each. In the
upper line, code no. and parameter are displayed. The arrow >
shows the present level (code or parameter level), which can be
changed when pressing the
▲ or ▼ key. In the lower line, the
codes or parameters are explained.
-Arrow for code level-
↓
-Code no.- -Parameter-
> C 0 0 1 - 0 -
O p e r a t i n g m o d e
-Explanatory text-
