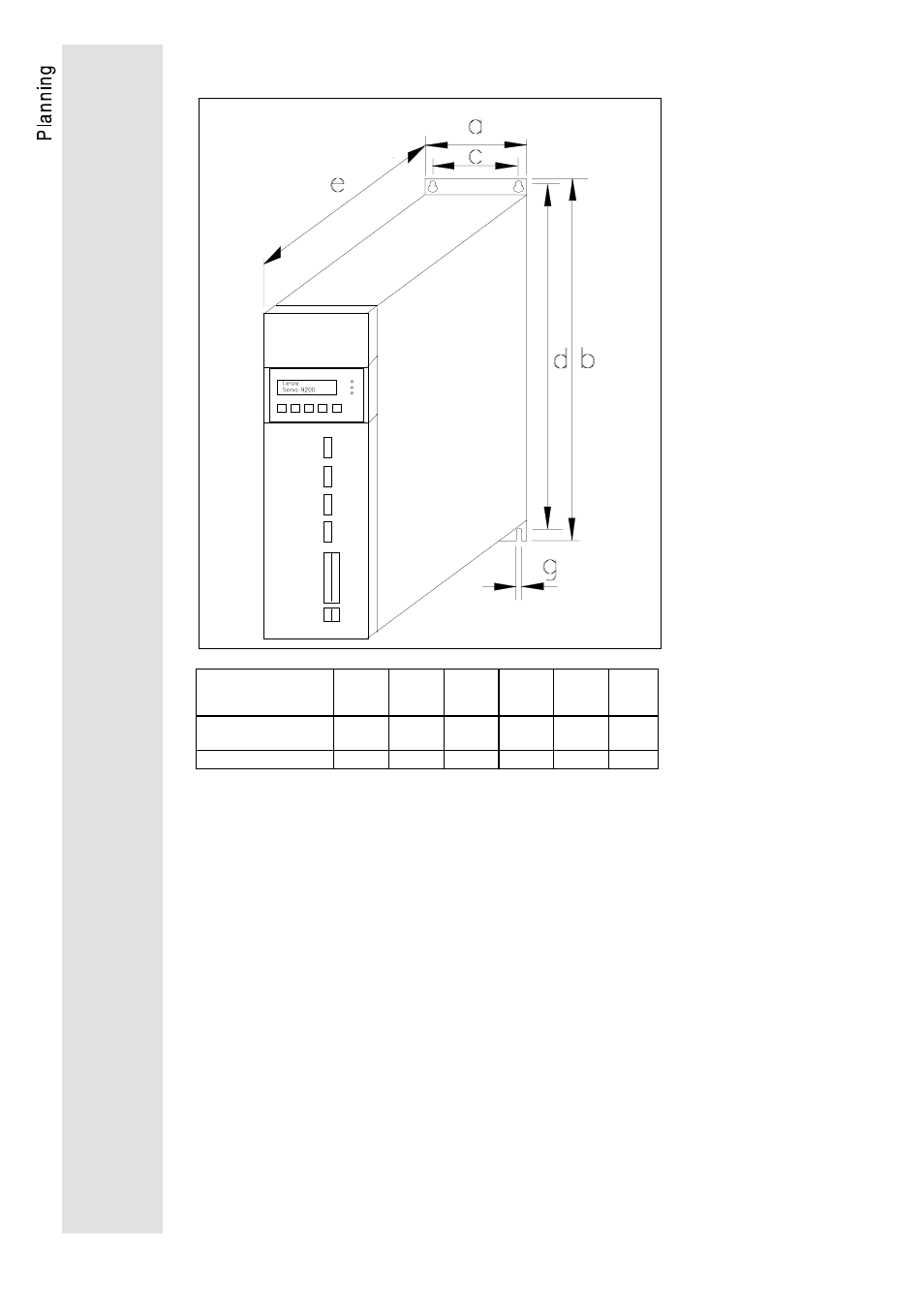

2.3. Dimensions
Type a
[mm]
b
[mm]
c
[mm]
d
[mm]
e
[mm]
g
[mm]
9212 - 9217
9222 - 9224 125 440 95 425 300 5
9225 - 9228 290 440 250 425 300 5
2.4. Extension of delivery
•
Axis module or supply module
•
Accessory kit (busbars, State-bus line, control terminals)
•
Operating Instructions
2.5. Application as directed
The units of the 9200 series are electrical units which are designed
for the application in control cabinets in industrial power
installations. They are designed for variable speed operations with
three-phase AC motors.
