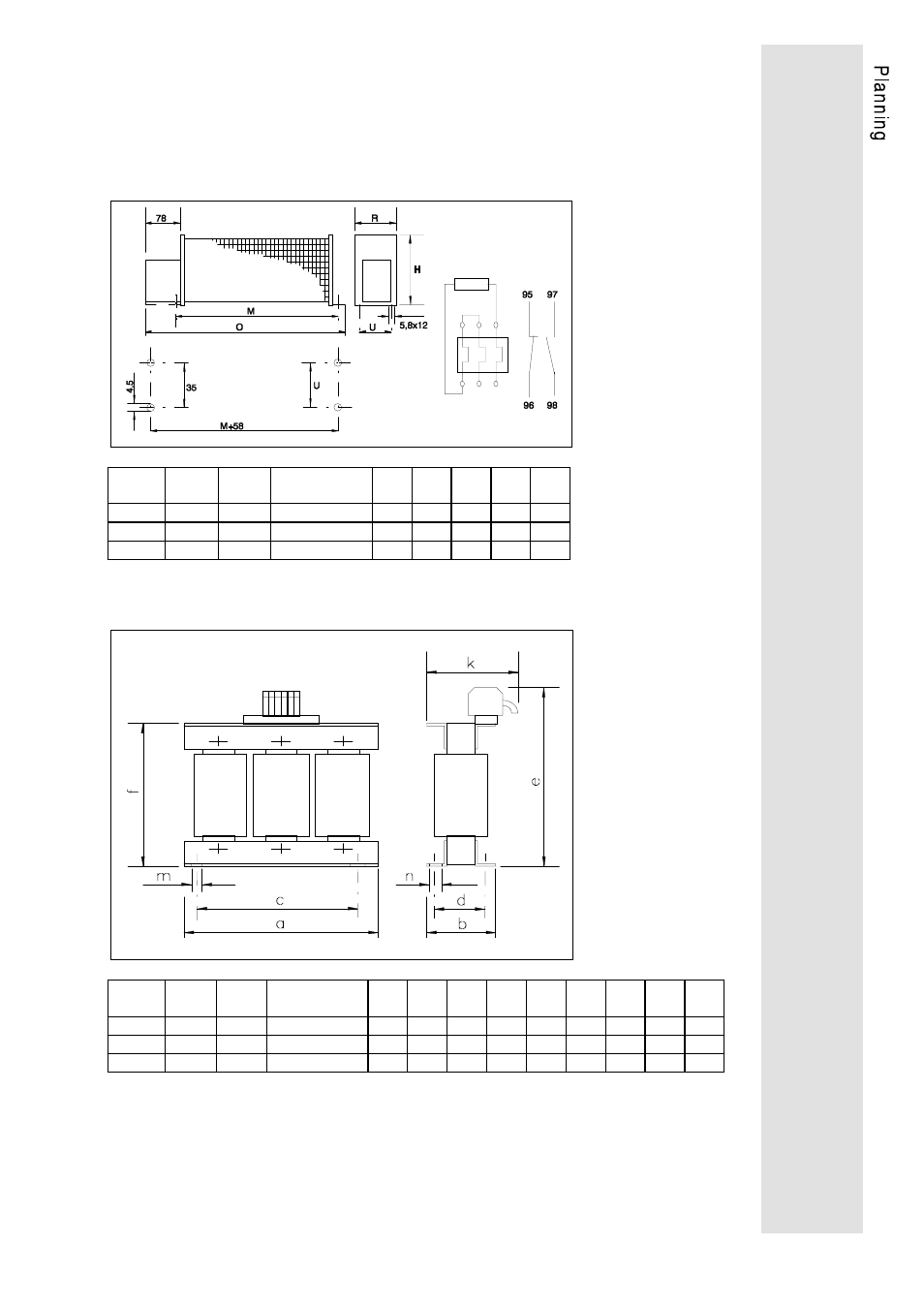

6. Accessories
(All listed components must be ordered separately)
6.1. External brake resistors
R
[ Ω ]
Pn
[kW]
Order no. H
[mm]
M
[mm]
O
[mm]
R
[mm]
U
[mm]
9212 29 1,1 ERBD029R01k1 120 430 510 92 64
9215 11 1,1 ERBD011R01k1 120 430 510 92 64
9217 8,5 1,1 ERBD009R01k1 120 430 510 95 64
6.2. Mains chokes
L
[mH]
I
[A]
Part no. a
[mm]
b
[mm]
c
[mm]
d
[mm]
e
[mm]
f
[mm]
k
[mm]
m
[mm]
n
[mm]
9212 3 x 2,5 3 x 7 ELN3_0250H007 120 61 84 45 130 105 73 6.0 11
9215 3 x 1,2 3 x 25 ELN3_0120H025 150 76 140 61 180 140 95 5.0 10
9217 3 x0,75 3 x 45 ELN3_0075H045 180 91 161 74 225 165 120 6.3 11
