22
4.3. Control connections axis module
4.3.1. Control terminals

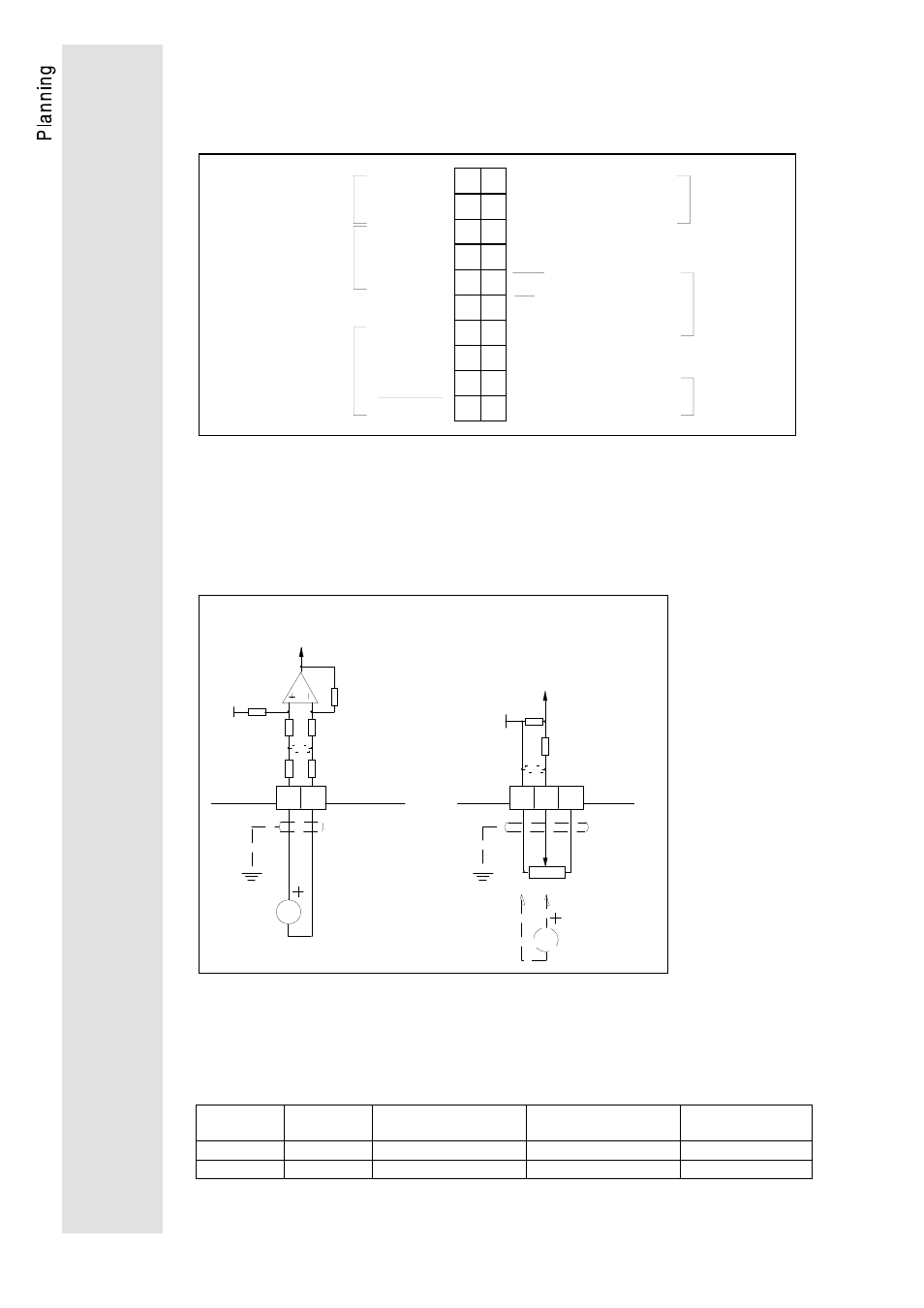

Pin assignment of the control terminal block X5
4.3.2. Analog input and outputs
Analog set value selection
For analog set value provision, two inputs are available, either as
speed or torque set value provision (for selection see C005
configuration). The bipolar input is a differential input..
1 2 7 8 9
A
S
E
-
-
X5 X5
68kOhm
82kOhm
R304
44kOhm
R306
44kOhm
100kOhm 100kOhm
68kOhm
82kOhm
Master voltage
0...+10V
Master voltage
-10...+10V
a) bipolar set value selection b) unipolar set value selection
Set value
potentio-
meter
10 kOhm/lin.
Monitor outputs
The terminals 62 and 63 of the control terminals block X5 transform
internal digital control signals into analog output signals. The
resolution is 8 bit. The signals are updated every 2ms. The
maximum monitor output current capacity is 2mA.
Output Terminal Signal Range Level
Monitor 1 X 5 62 Actual speed value adjustable via C153/C154 -10V...+10V
Monitor 2 X 5 63 Torque set value -Mmax...+Mmax -10V...+10V
