36

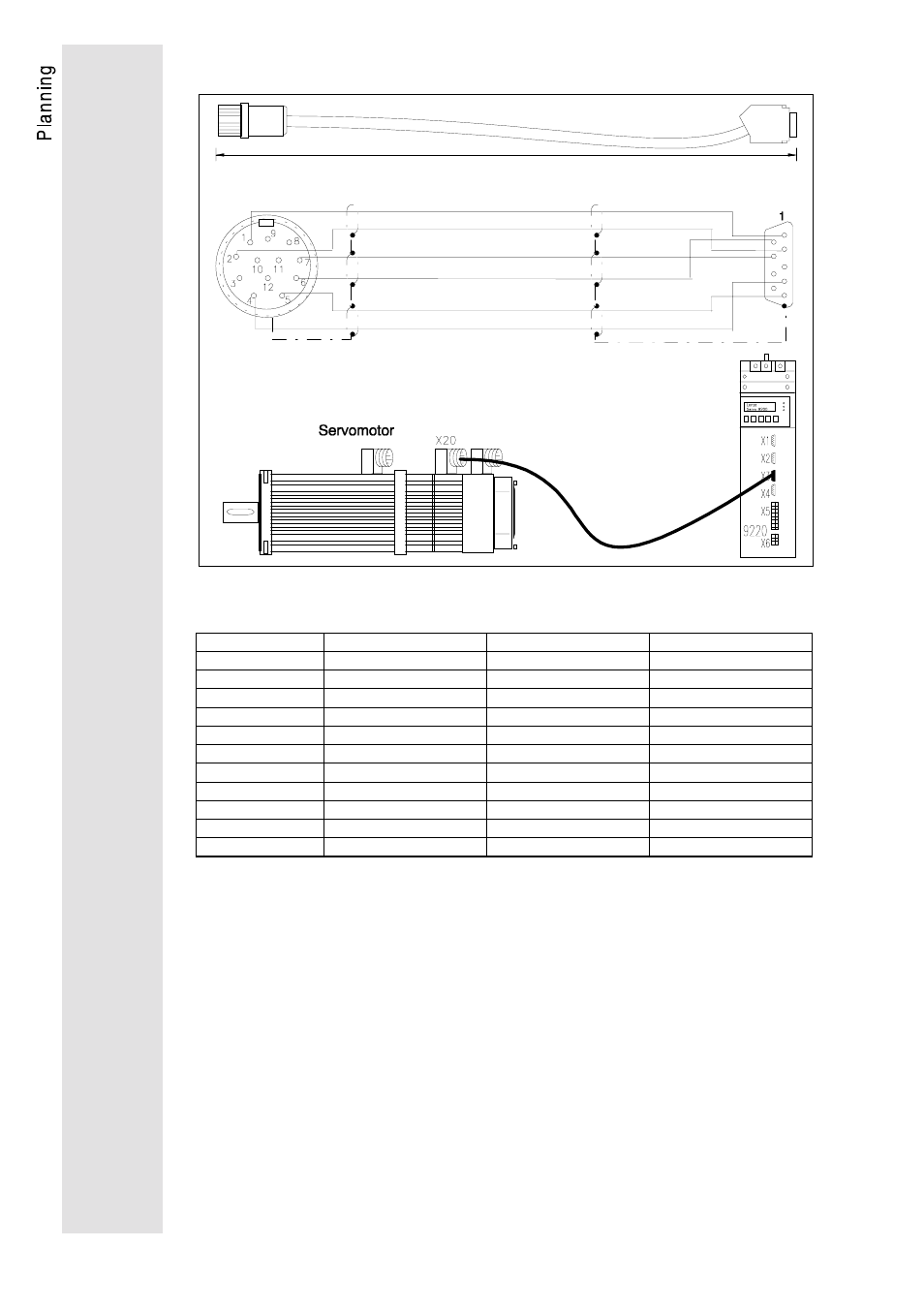

6.5.3. System cables for resolver X3

Various lengths

+REF white

- REF black

+COS red

-COS black

+SIN yellow

- SIN black

Order numbers of resolver cables

Length

plugs at both ends

plug at motor side

plug at unit side

2.5 m

-

-

EW00340907

5 m

EWREB_______05

EW00345891

-

10 m

EWREB_______10

EW00340909

-

15 m

EWREB_______15

EW00345892

-

20 m

EWREB_______20

EW00345893

-

25 m

EWREB_______25

EW00345894

-

30 m

EWREB_______30

EW00345895

-

35 m

EWREB_______35

EW00345896

-

40 m

EWREB_______40

EW00345897

-

45 m

EWREB_______45

EW00345898

-

50 m

EWREB_______50

EW00345899

-
