38

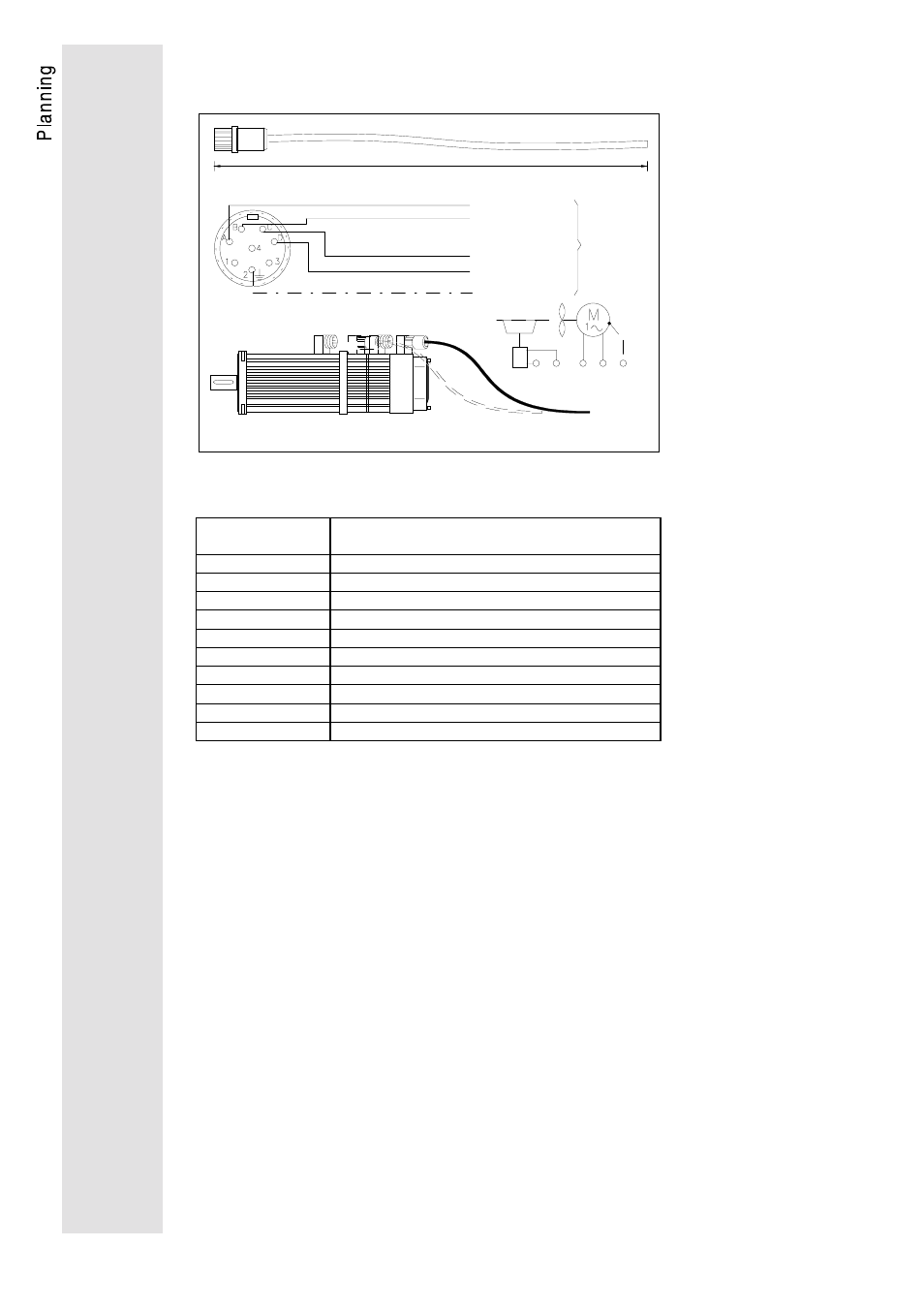

6.5.5. System calbes for supply fo fan and brake
Cable cross section
Length 5 x 0.5 mm 2
5 m EWBLL_______05
10 m EWBLL_______10
15 m EWBLL_______15
20 m EWBLL_______20
25 m EWBLL_______25
30 m EWBLL_______30
35 m EWBLL_______35
40 m EWBLL_______40
45 m EWBLL_______45
50 m EWBLL_______50
black 1
black 2
blue
brown
0.5 m m
Various length
2
X30 X30
green-yellow
L1 fan
N fan
Y1 + brake
Y2 - brake
PE
Servo motor
Y1+ Y2- L1 N PE
D o tted lin e : m o to r w ith b ra ke b u t w ith o u t fa n : D S V A B S X X
Order numbers of fan and brake supply cables
