Wiring the device modules – Lenze E94ARNE User Manual
Page 58
Wiring the device modules
Communication modules
l
58
EDK94ARN24 DE/EN/FR/ES/IT 2.1
CANopen
E94YCCA001B

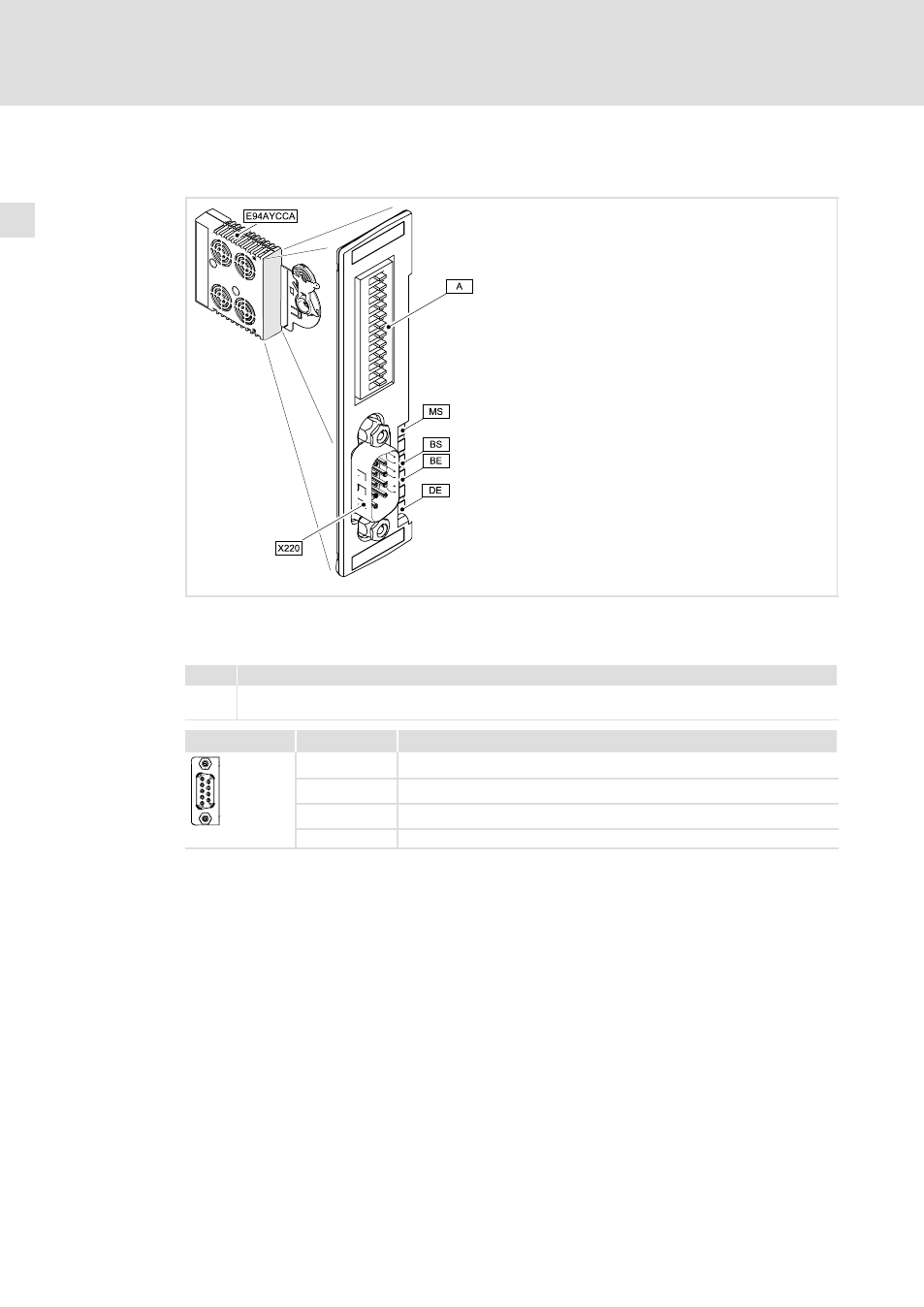

Fig. 7−2
E94AYCCA communication module (CANopen)
Connections
Pos.
Description
X220
Connection for CAN
Design: Sub−D plug connector, 9−pin
X220
Labelling
Description
Pin 2
CAN−LOW
Pin 3
CAN−GND
Pin 7
CAN−HIGH
9400SSP000X1
(Housing)
CAN shield
