Wiring the device modules
Communication modules
7
l
56 EDK94ARN24 DE/EN/FR/ES/IT 2.1
7 Wiring the device modules
The equipment of the device with modules depends on the device variant or on the
application. A short description of the different device modules follows. More detailed
information is given in the corresponding documentation.
7.1 Communication modules
Use these modules in slot
þ MXI1 or þMXI2 oMMI oMSI.
Ethernet
E94YCEN001A

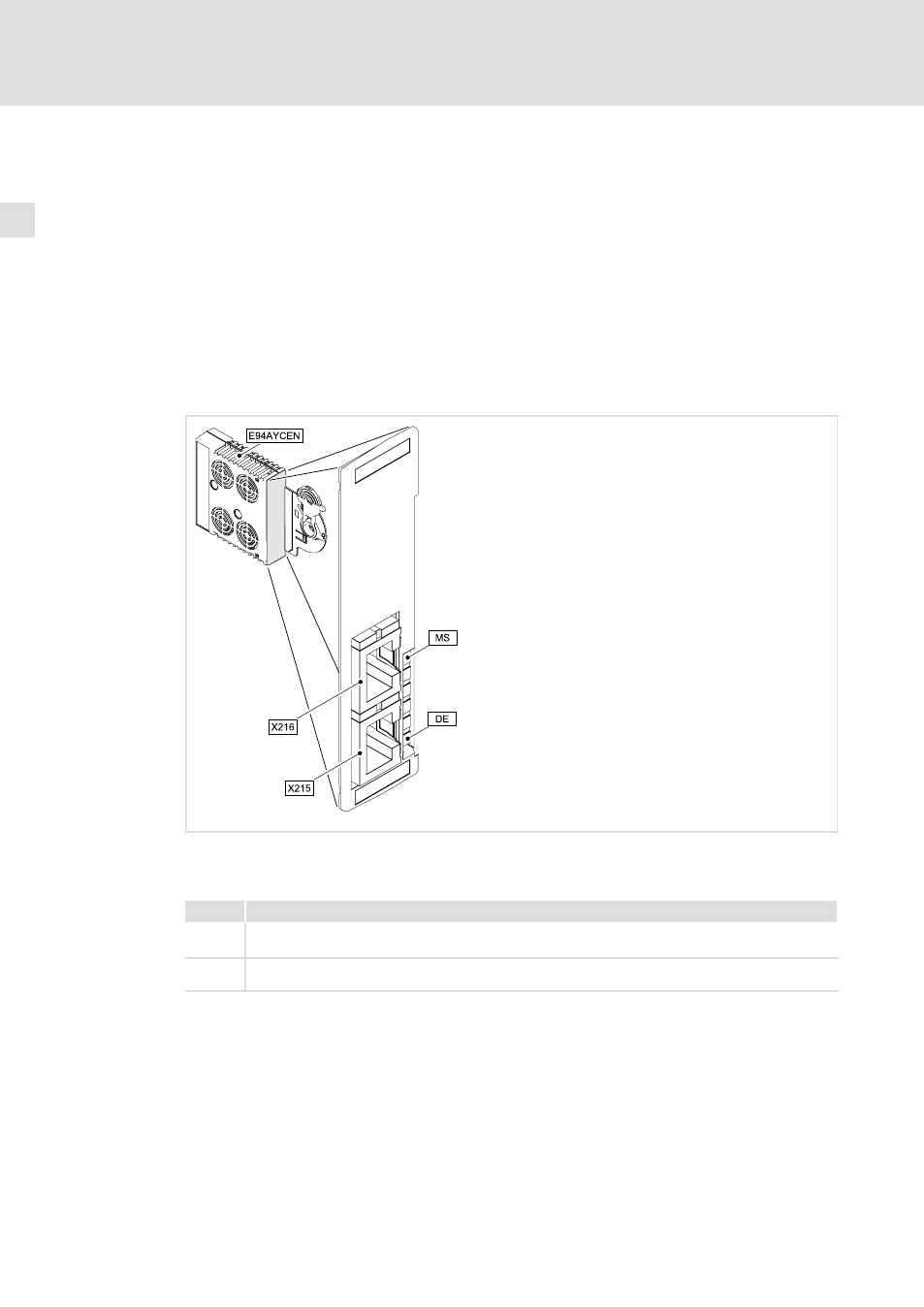

Fig. 7−1 E94AYCEN communication module (Ethernet)
Connections
Pos. Description
X215 Ethernet connection
Design: RJ45 socket to IEC 60603−7
X216 Ethernet connection
Design: RJ45 socket to IEC 60603−7
