Grundgerät verdrahten 6, Diagnose/keypad, Resolver – Lenze E94ARNE User Manual
Page 23: Systemanschluss synchronisation

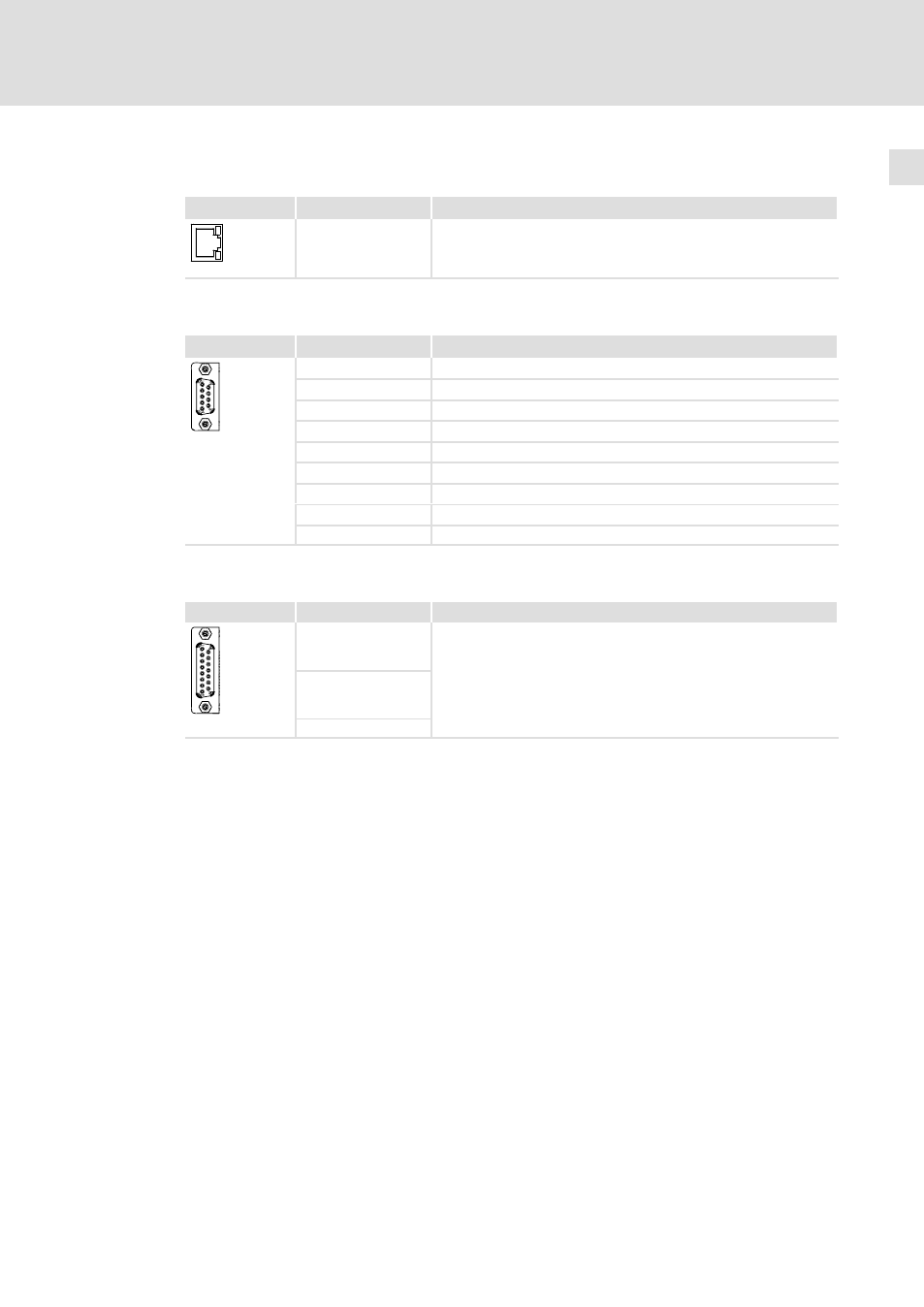

Grundgerät verdrahten
l
23
EDK94ARN24 DE/EN/FR/ES/IT 2.1
Diagnose/Keypad
Klemme X6
Beschriftung
Beschreibung
interne Schnittstelle, RJ69−Buchse, für Keypad oder Diagnoseadapter
9400SSP000X6
Resolver
Klemme X7
Beschriftung
Beschreibung
1
+REF
2
−REF
3
V
CC
4
+COS
5
−COS
6
+SIN
7
−SIN
8
+KTY
9400SSP000X7
9
−KTY
Systemanschluss Synchronisation
Klemme X8
Beschriftung
Beschreibung
1
Ausschließlich zur zwingenden Verwendung mit dem Netzfilter
E94AZMR0xx4xDB, X324
...
9400SSP000X8
15
