6.2.5 Creating a PLC program with a target system (Logic/Motion)
By means of the »PLC Designer« you can map the network topology in the control configuration.

Tip!
In the »PLC Designer«, PROFIBUS stations and stations of other fieldbus systems can be
configured.
 Mixed operation PROFIBUS with EtherCAT ( 42)

How to create a PLC program in the »PLC Designer«:
1. Use the menu command File  New project to create a new »PLC Designer« project.

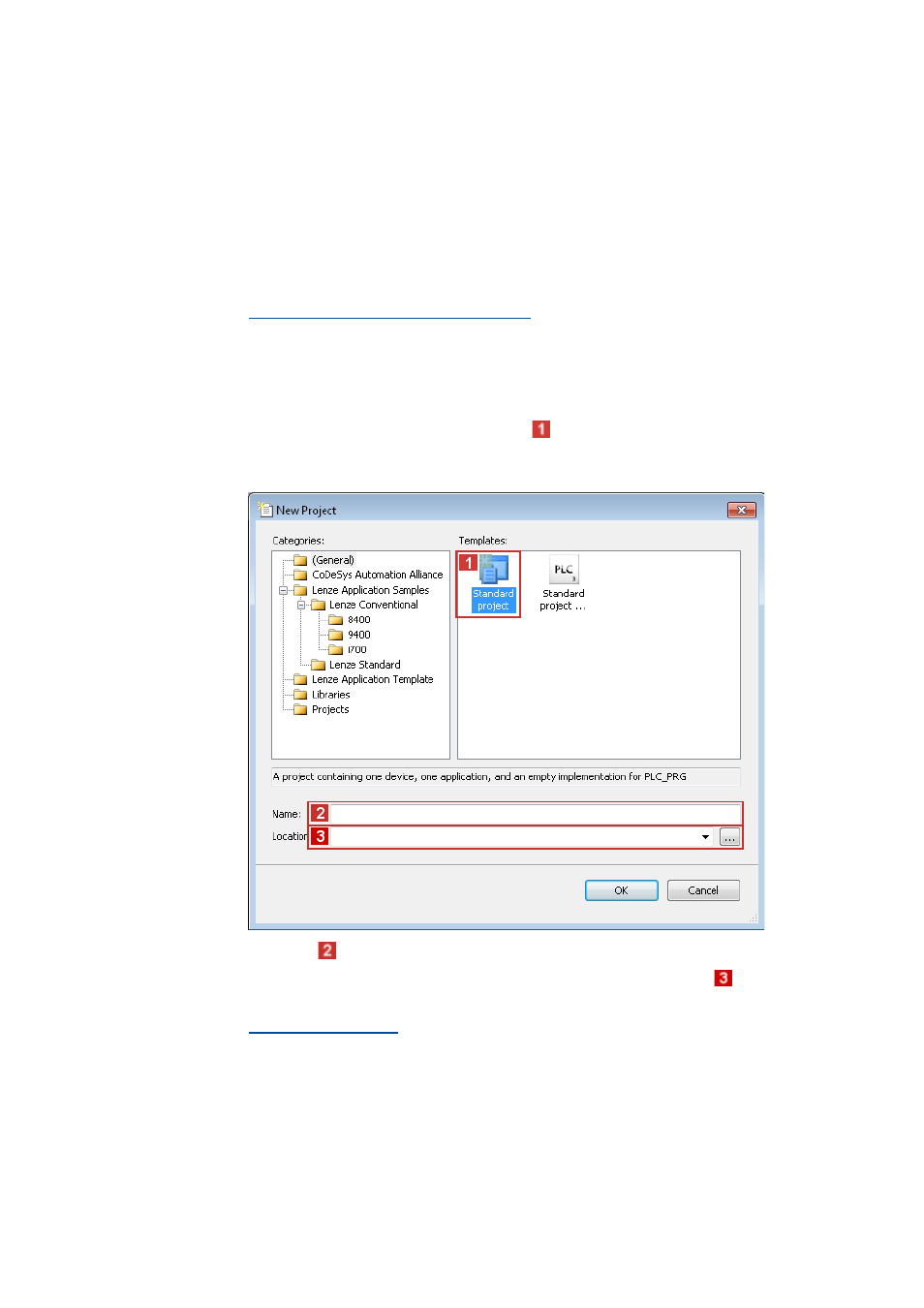

2. Select "Standard project" in the New project
dialog box.
A "Standard project" simplifies the structure of a project in the »PLC Designer«; for instance,
a device tree structure with a target system, PLC logic, etc. is provided.
• Go to the Name input field and enter a name for your »PLC Designer« project.
• Select the previously created project folder as storage location in the Location
selection field.
 Create a project folder ( 27)
3. Confirm the entries by clicking OK.
