6.4.10 Cutting window

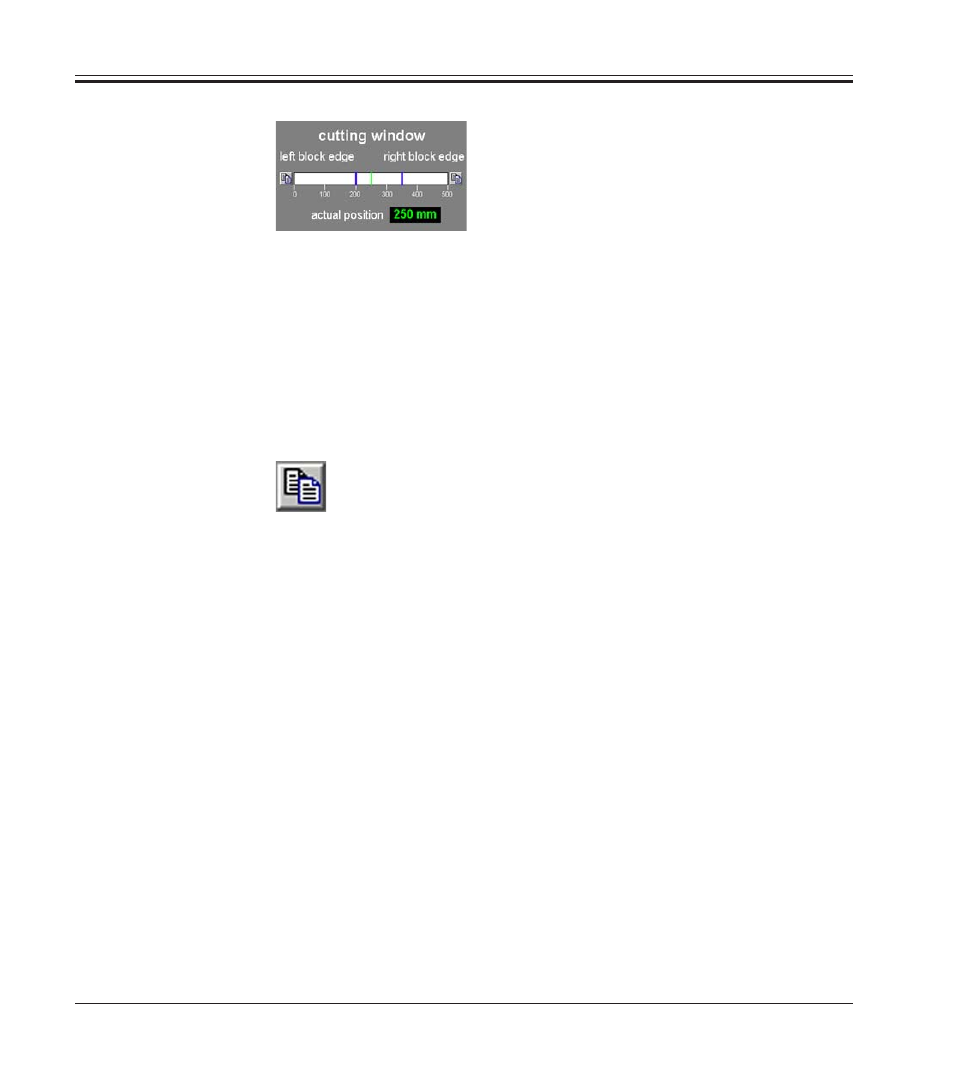

Indication of the left and right block edge, graphically displayed by blue
lines. They indicate the maximum horizontal stroke of the microtome
sledge on a scale from 0 - 500 mm.
Indication of the actual position of the microtome sledge. The sledge
position is graphically displayed by the green line.
To modify any of the settings, mouse-click on the "Actual position"
indication.
Clicking on the icons on the left and right of the scale lets you
adjust the left and/or right half of the block to the actual
microtome sledge position indicated.
LEFT BLOCK EDGE button
Clicking on the inscription LEFT BLOCK EDGE opens up an entry window.
Select the left limit position to where the microtome sledge can move on
a scale from 0 - 500 mm.
RIGHT BLOCK EDGE button
Clicking on the inscription RIGHT BLOCK EDGE opens up an entry
window. Select the right limit position to where the microtome sledge can
move on a scale from 0 - 450 mm.
