Scraper kit (optional) – Landoll SL/SLB/SLP/SLPB/SLPB TURFMAKER III User Manual
Page 35
ASSEMBLY INSTRUCTIONS
2-25
Scraper Kit (Optional)
(Cannot be used with Coil Tine track remover Kit) See
Figure 2-32.
1.
Assemble 1K212 brackets to front of seeder frame
tube. The three brackets are provided (If you have a
wheel track remover kit on your seeder you will not
need these brackets on the outer ends). You can
mount to the same brackets provided with the wheel
track remover. Do not fasten securely at this time.
2.
Attach vertical brackets loosely and assemble
scraper angle to them. Attach two center scrapers at
center hole locations and then attach all of the
regular scrapers. Center entire assembly on
machine, position scrapers for proper fit and tighten
hardware.
3.
Scrapers should be close enough to the wheels to be
functional but without interference. Some final
adjustments maybe required in the field.

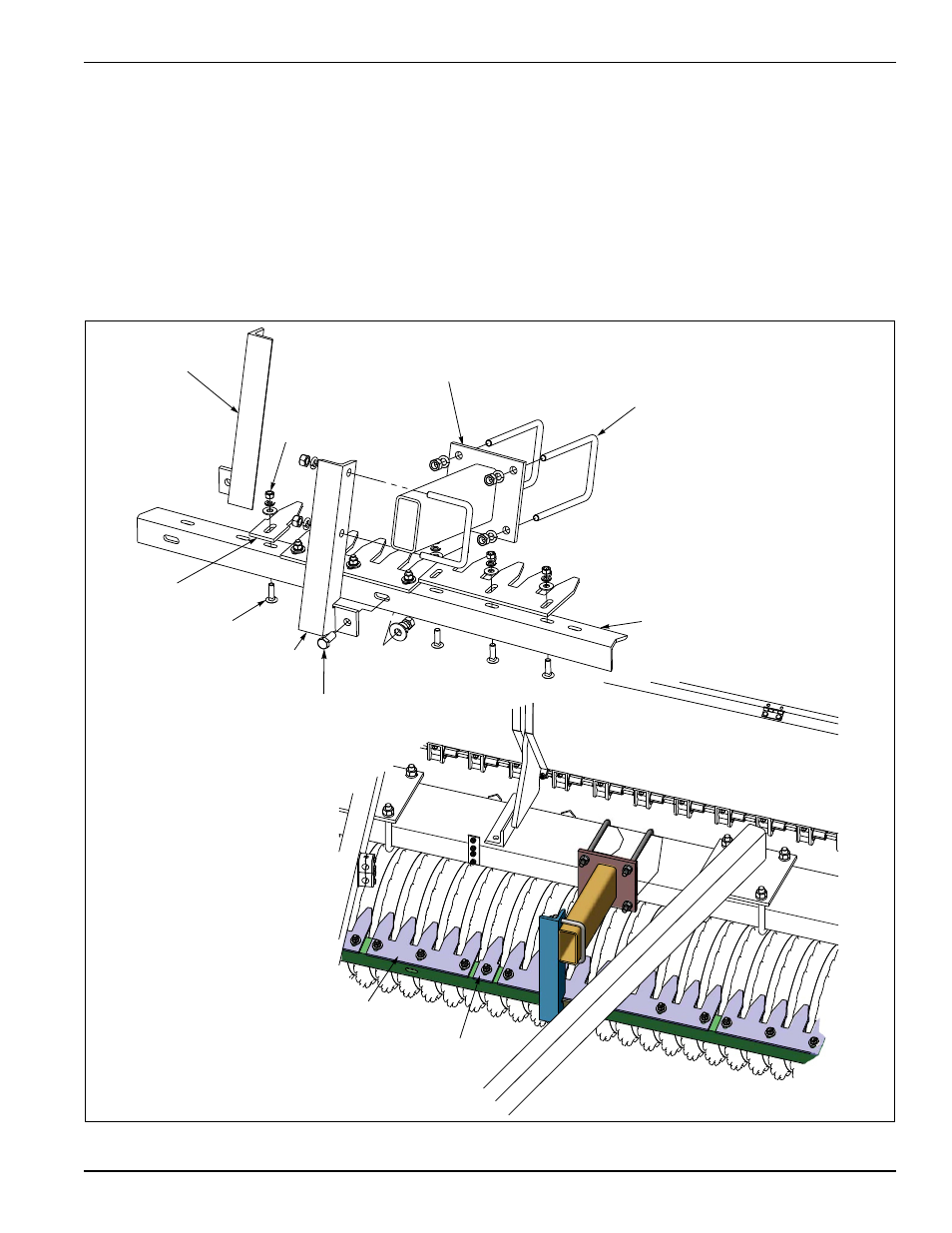

Figure 2-32: Scraper Kit
LH Bracket
Center
Scraper
U-Bolt,1/2-13
Lockwasher,1/2
Nut,1/2-13 Hex
Flat Washer, 3/8
Lockwasher, 3/8
Nut, 3/8-16
Carriage
Bolt
Bracket 1K212
Angle
Center
Scraper
Scraper
RH Bracket
Screw,1/2-13 X 1 1/4”
Flat Washer,1/2.
Lockwasher,1/2
Nut,1/2-13
