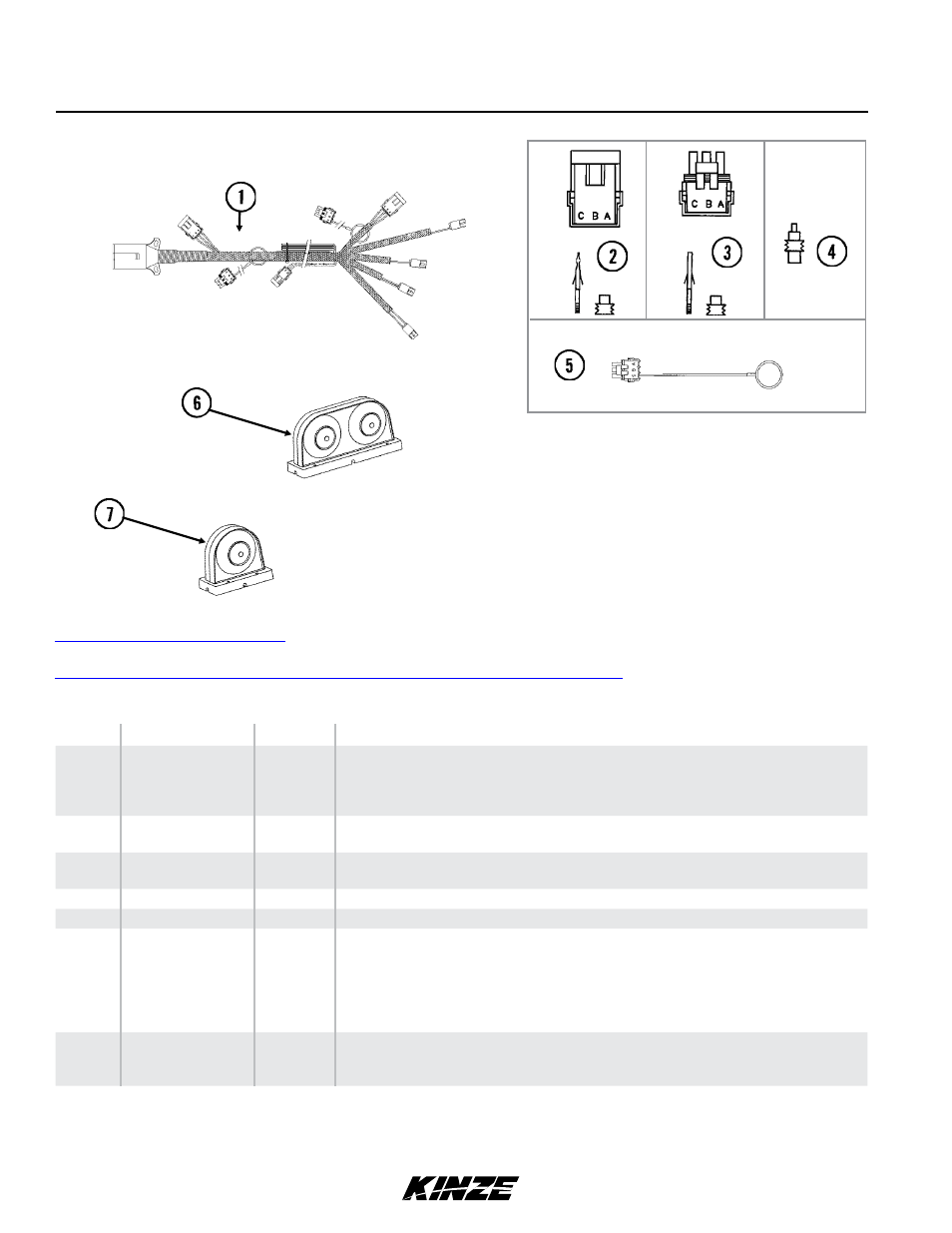

Electrical Components
(PT49a/A9507a/MTR27a/ELC8)
See “Toolbar Assembly” on page P51
for light brackets .
See “Digital Vacuum Gauge, Analog Vacuum Gauge, and Vacuum Fan Assembly” on page P43
for those electrical components .
ITEM
PART NO .
QTY .
DESCRIPTION
1
GA9507
GA9509
GA5385
-
-
-
Wiring Harness W/7 Terminal Female Connector, 186", 6 Row 30" (4 Light Connections)
Wiring Harness W/7 Terminal Female Connector, 264", 6 Row 36"/38"/40", 8 Row
30"/36"/38"/40" (4 Light Connections)
7 Terminal Female Connector
2
G1K248
-
3-Pin Female Connector Kit (Black), Includes: (3) 3-Pin Female Housings, (9) Pin
Contacts, (9) Seals
3
G1K252
-
3-Pin Male Connector Kit (Black), Includes: (3) 3-Pin Male Housings, (9) Socket
Contacts, (9) Seals
4
GD11089
-
Sealing Plug
5
GA8047
-
Dust Plug (Black)
6
GA6699
GA6700
GR1956
GR1957
GR1958
GR1208
1
1
-
-
-
-
Double Light Assembly
Double Light Assembly (Shown)
Amber Lens Kit, Includes: (1) Amber Lens, (1) Gasket, and (3) Hex Head Cap Screws
Red Lens Kit, Includes: (1) Red Lens, (1) Gasket, and (3) Hex Head Cap Screws
Black Cover Kit, Includes: (1) Black Cover, (1) Gasket, and (3) Hex Head Cap Screws
Bulb
7
GA6701
GR1956
GR1208
2
-
-
Single Amber Light Assembly
Amber Lens Kit, Includes: (1) Amber Lens, (1) Gasket, and (3) Hex Head Cap Screws
Bulb
