Kinze 3110 Mounted Planter Rev. 5/14 - Manual (Page 60)

ITEM PART NO . QTY .
(Per Assy .)
DESCRIPTION
1 G11075 2 External Inverted Snap Ring, ⅞"
2 G10496 2 External Inverted Snap Ring, 1 ½"
3 GD14432 1 Sleeve, 1 ¼"
4 GD14426 1 Tightener Shaft, 3 ⅜"
5 GD14431 1 Handle
6 GD14430
GD14429
1
-
Release Collar, Gold, R .H . (Shown)
Release Collar, Silver, L .H .
7 GD14414
GD14413
1
-
Torsion Spring, R .H . (Used In L .H . Wrap Spring Wrench)
Torsion Spring, L .H . (Shown) (Used In R .H . Wrap Spring Wrench)
8 G11078 1 Vinyl Cap
9 GD5857 2 Spring
10 GD2558 3 Lynch Pin, ¼"
11 GA11052
GA4630
1
-
Sprocket Storage Rod (EdgeVac)
Sprocket Storage Rod (Mechanical)
12 G10037
G11389
G10111
1
1
1
Hex Head Cap Screw, ½"-13 x 1 ¼"
Flat Washer, ½" Plated SAE
Lock Nut, ½"-13
13 GD10336 1 Shaft, ⅞" x 11"
14 GD7127 1 Shear Coupler
15 G10462 1 Cotter Pin, 3/16" x 2"
16 G3310-68
GR0912
1
-
Chain, No . 40, 68 Pitch Including Connector Link
Connector Link, No . 40
17 G10338
G10232
G10106
G10109
1
1
1
1
Carriage Bolt, 5/16"-18 x 1 ¼"
Lock Washer, 5/16"
Hex Nut, 5/16"-18
Lock Nut, 5/16"-18, Grade 8

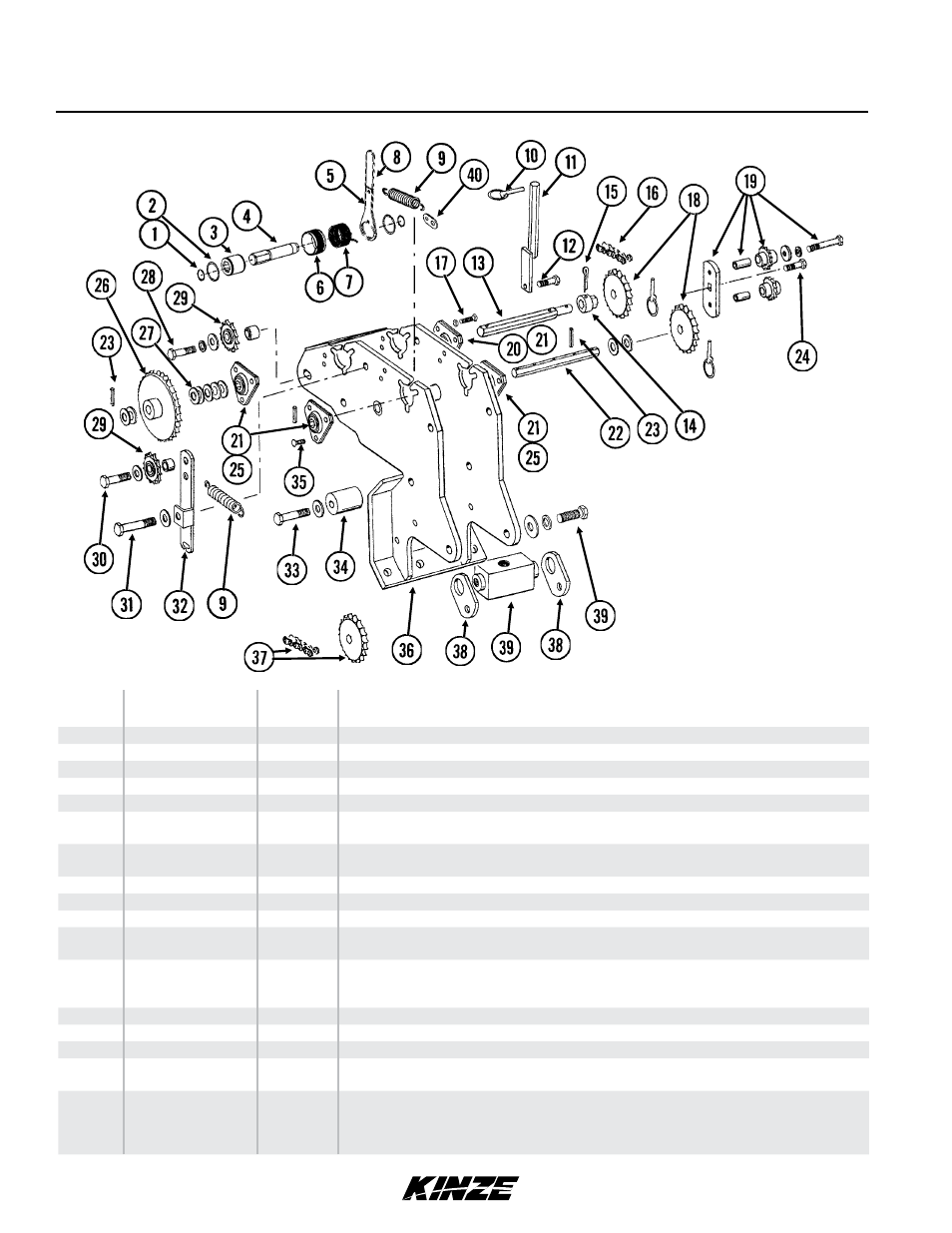

Seed Rate Transmission and Module Drive Assembly
(SFP24fff)
R .H . Side Shown
TM
Model 3110 M0244-02
P57 9/12
