Kinze 3110 Mounted Planter Rev. 5/14 - Manual (Page 76)

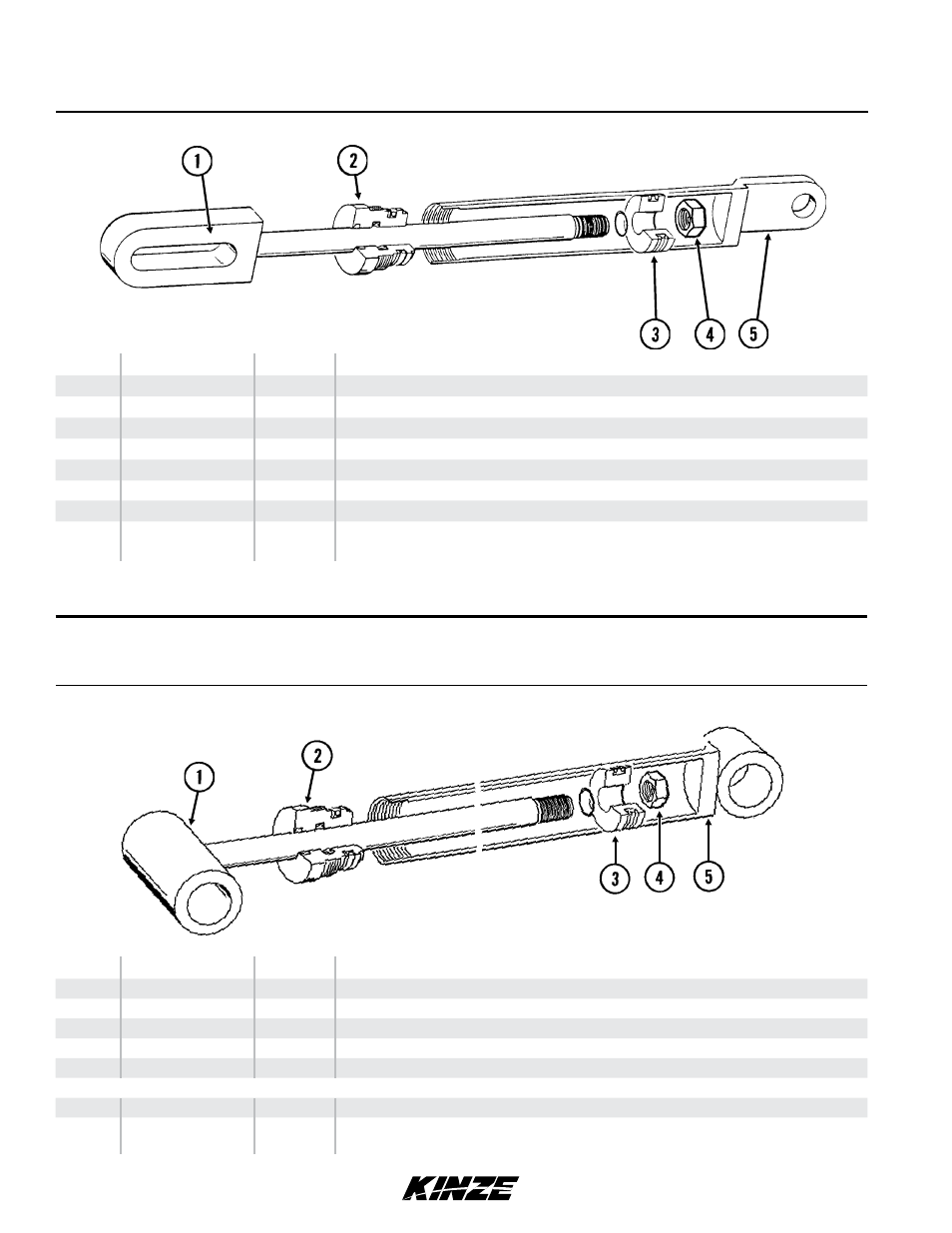

Row Marker Cylinder, 6 Row 30"
Row Marker Cylinder, 6 Row 36"/38"/40" and 8 Row 36"/38"/40"
ITEM PART NO . QTY . DESCRIPTION
1 GA8918 1 Rod Assembly
2 GD12510 1 Gland
3 GD12511 1 Piston
4 GD27233 1 Nylon Lock Nut, ¾"-16, Grade 8
5 A8775 1 Barrel (Non-Stock Item)
A GA8919 - Cylinder Complete, 2" x 8" (Part Number Stamped On Barrel)
B GR1529 - Seal Kit, Includes: (1) T-Seal, (2) O-Rings, (1) BU Ring, (2) U-Cups,
(1) Wiper, (1) IS511 Instruction
(CYL2c)
(CYL3e)
¾ "-16 O-Ring Ports
ITEM PART NO . QTY . DESCRIPTION
1 GA9440 1 Rod Assembly
2 GD12510 1 Gland
3 GD12511 1 Piston
4 G10967 1 Lock Nut, ¾"-16
5 A9442 1 Barrel (Non-Stock Item)
A GA9443 - Cylinder Complete, 2" x 20 1⁄16" (Part Number Stamped On Barrel)
B GR1529 - Seal Kit, Includes: (1) T-Seal, (2) O-Rings, (1) BU Ring, (2) U-Cups,
(1) Wiper, (1) IS511 Instruction
