3 Operating Principle
50
3.3 Group and Plant Management (Batches)

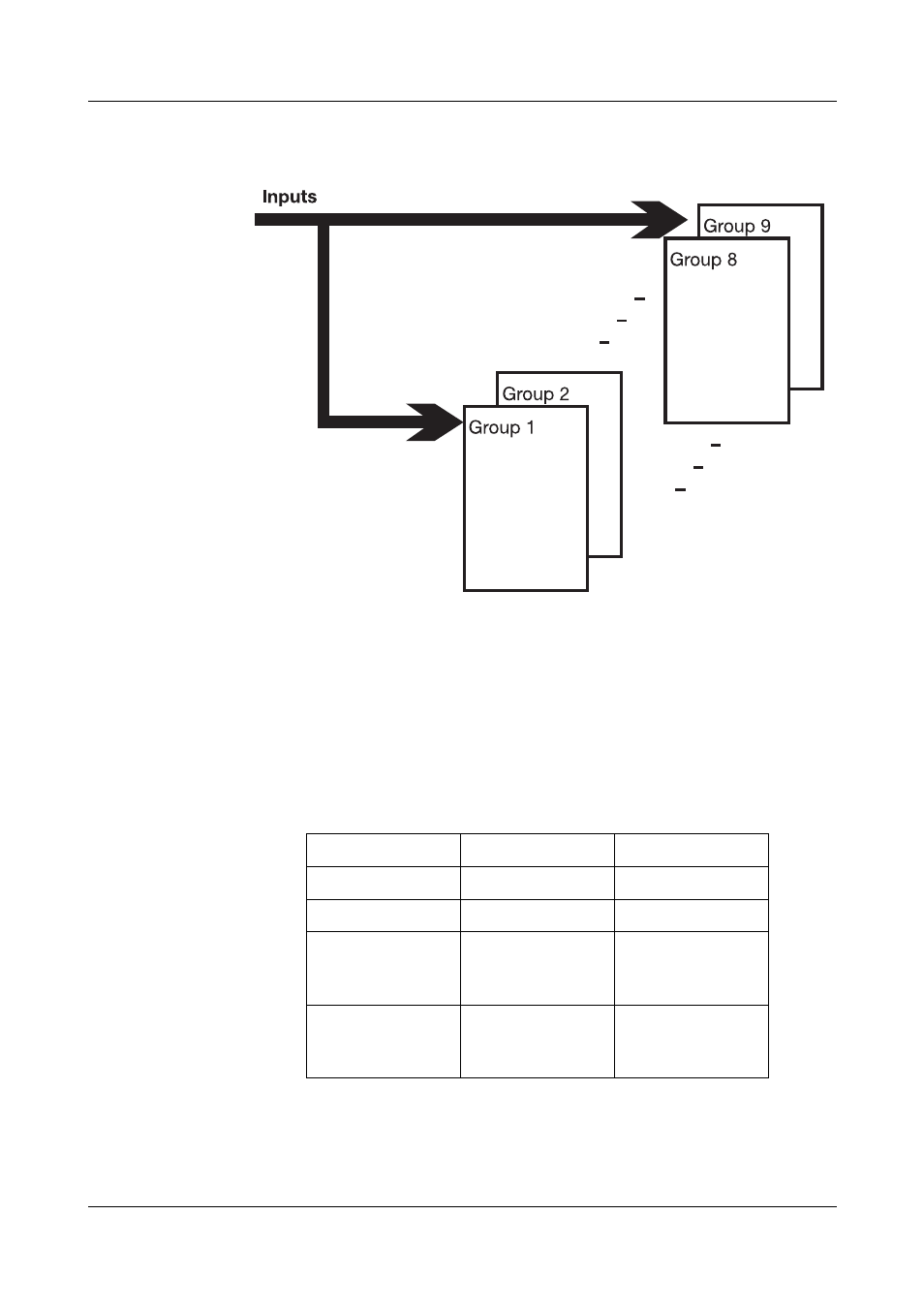

Within the recorder, all analog inputs, binary inputs, counters and integrators,
are collected together into groups. A maximum of nine groups is available as a
total. Each group can consist of a maximum of 6 analog inputs, 6 binary inputs
(or outputs), and 4 counters/integrators.
The visualization and storage of the analog inputs and binary inputs (outputs)
is always made on a group basis.
If plants (batches) are used, the groups have fixed assignments to the plants
(batches).
Plant number Group Plant (batch)
0 1 … 9 None
1 1 … 9 1
2 1 … 3
4 … 6
7 … 9 1
2
Not assigned
3 1 … 3
4 … 6
7 … 9 1
2
3
