113

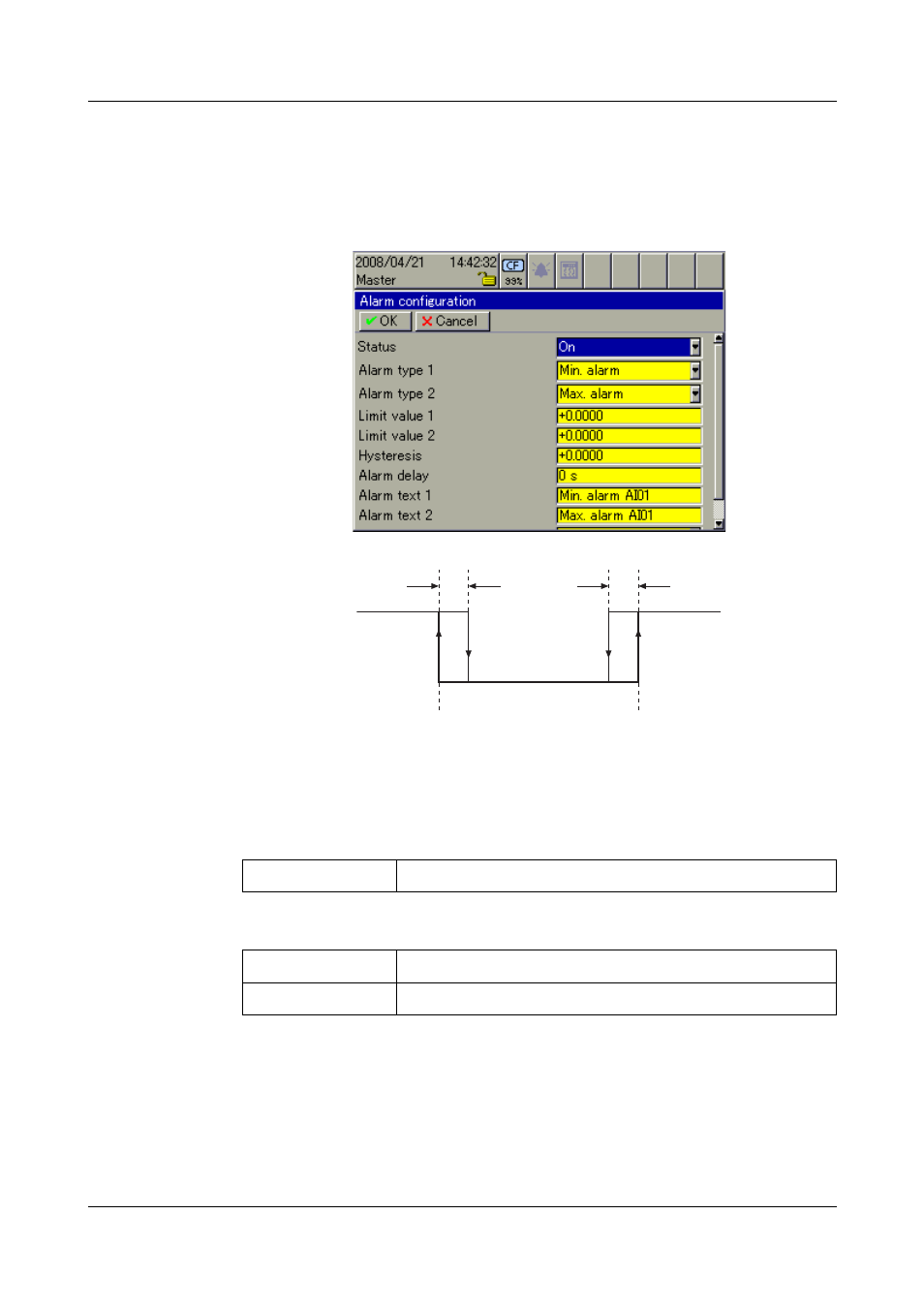

13 Configuration - Analog Inputs
13.4 Alarm configuration
13.4.1 Status … Alarm text 2
Overview
Status Status activates alarm monitoring.
Alarm type 1/
alarm type 2 “Min alarm” and “Max alarm” are available for each alarm type.
Limit value 1/
limit value 2 Limit at which the alarm is initiated.
(1) (2)
(3) (3)
alarm on
alarm off
(1) = Low alarm
(2) = High alarm
(3) = Hysteresis
On Alarm monitoring is active.
Min alarm Alarm is initiated if the value has fallen below the limit.
Max alarm Alarm is initiated if the value has gone above the limit.
