17

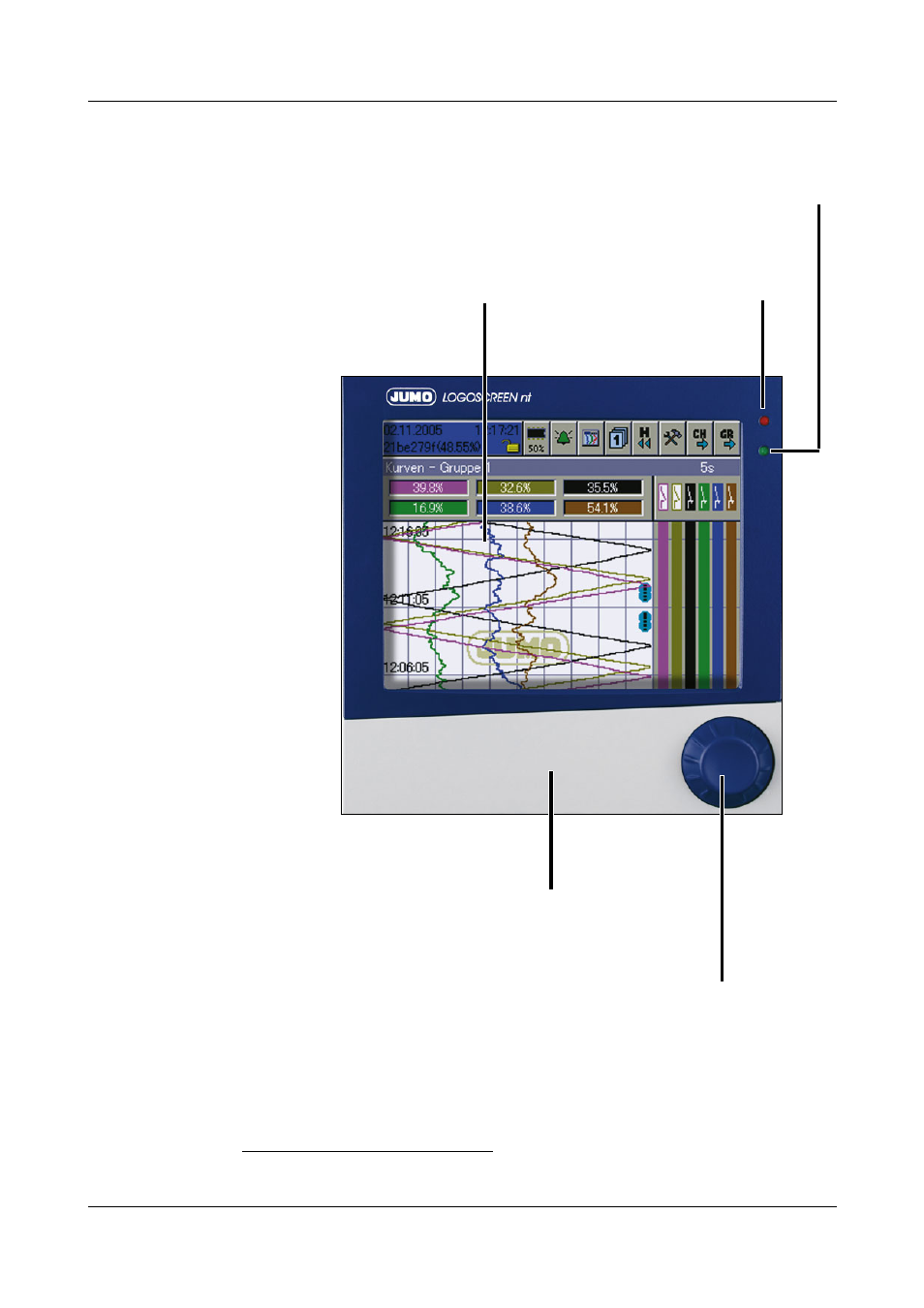

2 Instrument Description

2.1

Displays and Controls

Recorder with
zinc die-cast
panel

1.

CompactFlash® is a registered trademark of the SanDisk Corporation.

Power LED (green)

is on continuously as soon as power is applied.

Status LED (red)

is on continuously

if an alarm is present.

Cover

for the CompactFlash

®

slot

1

and the setup plug connection

Control knob

The control knob is used to configure and operate the

paperless recorder. It can be rotated in both clockwise

and anti-clockwise directions, and pressed.

TFT color display

320 x 240 pixels, 256 colors
