16 Configuration - External Analog Inputs
122
Unit Unit in which the acquired measurement signal is to be displayed, up to
5
characters. The unit is displayed wherever the measurement is presented
numerically.
Comma format The decimal place serves to determine the number of integer and decimal
places for the numerical presentation of the measurements. If required, the
instrument will automatically switch to a different format, in order to be able to
show all the integer places. As a rule: all integer places must be displayed.
Activate
replacement
value Here, a signal is selected that decides whether the current measured value will
be overwritten with the replacement value ("-----" = no input signal).
A useful application of the parameter is the "Timeout monitoring" function,
when the recorder is accessed as Modbus slave (e.g. from a PC/laptop or form
a PLC). Without monitoring, the last received measured value remains even
when the communication with the Modbus master is interrupted.
v Kapitel 2.7 "Binary Signals"
v Siehe "Timeout monitoring" auf Seite 163.
v Siehe "Timeout monitoring" auf Seite 167.
Alarm
configuration Opens the submenu for the configuration of both alarms.
16.2 Alarm configuration

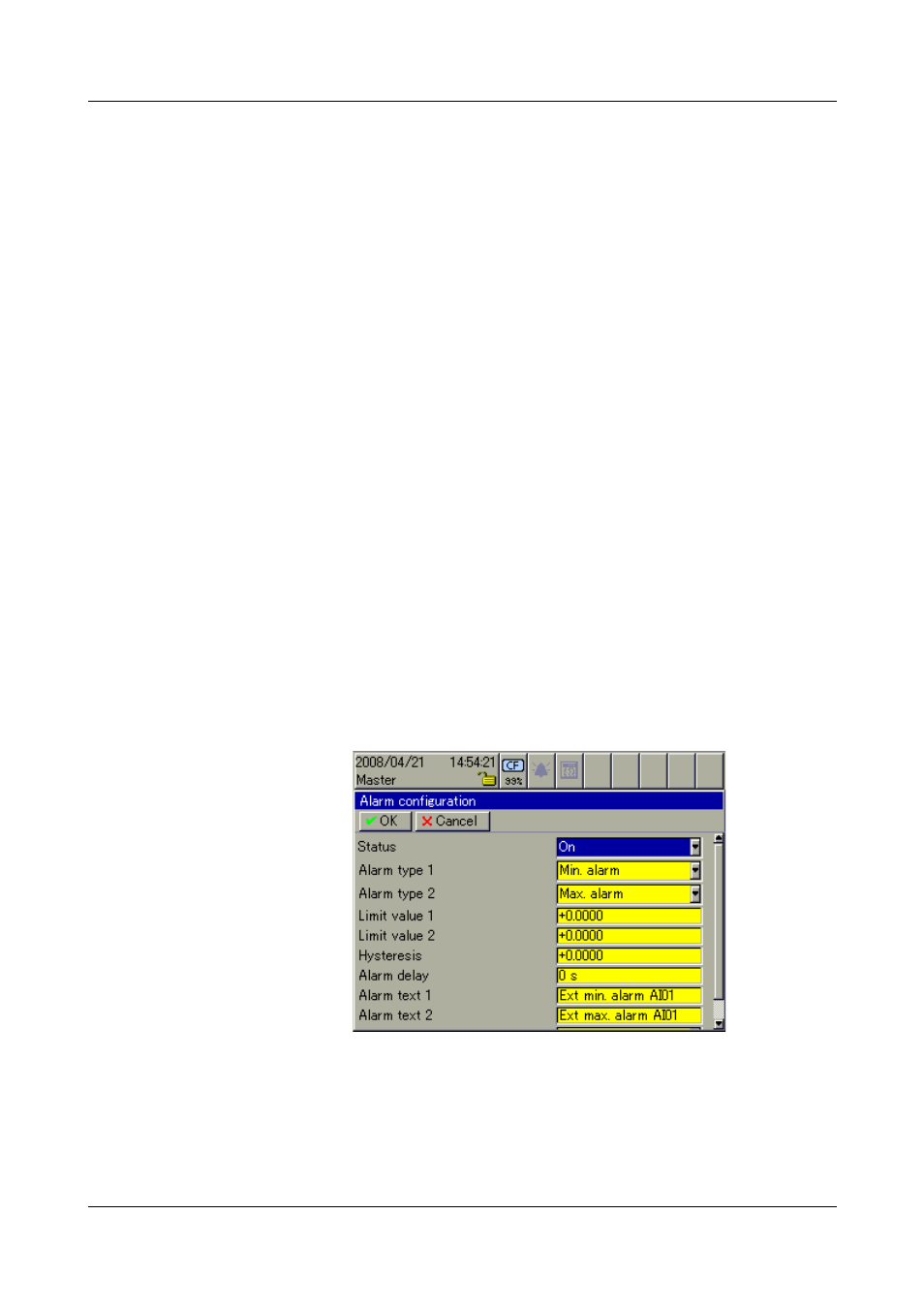

16.2.1 Status … Alarm text 2
Overview
