1.2 The JUMO mTRON T measuring, control, and automation
system
1.2.1 Overview
1.2.2 Brief description
The modular measuring, control, and automation system is suitable for the precise detection,
regulation, control, and recording. Special features of the system are the easy operation and
the corresponding software components, the high measuring accuracy and regulation quality
as well as the sturdy and service-friendly mechanical system.
An application consists of a base unit (central processing unit), a maximum of 30 input/output
modules (multichannel controller module, analog input module 4-channel, analog input module
8-channel, digital input/output module 12-channel), and if necessary the multifunction panel, up
to four operating panels, and router modules for distributed module arrangement. For user-
friendly all-in-one solutions, various PC programs are available.
Automation solutions for small and medium size machine lines are possible due to the integra-
tion of an optional PLC including programming system according to IEC 61131-3.
The base unit is equipped with a sturdy metal case; the router module and the input and output
modules are equipped with a plastic case. All these devices can be fitted on a 35 mm DIN rail.
The multifunction panel with TFT touch screen has a metal case with decor foil and is intended
for mounting into a panel cut-out.
The system operates at a voltage of DC 24 V. The supply of operating voltage is only required
at the base unit (central processing unit), at the router module, and at the multifunction panel.

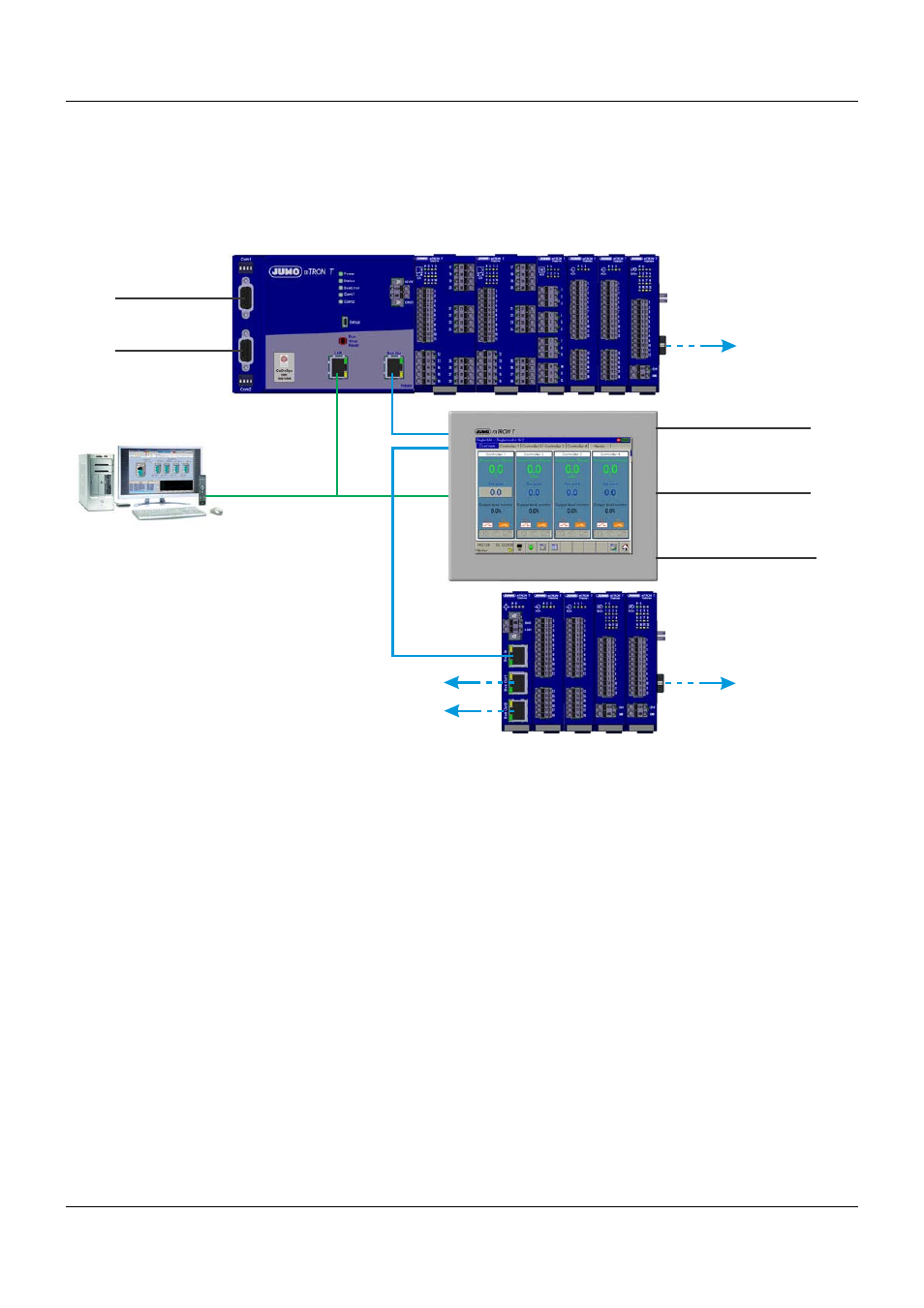

- Web browser
- Setup program
- PC Evaluation Software PCA3000
- PCA Communication Software PCC
- Plant Visualization Software SVS3000
- Programming system CODESYS
LAN
Com2
RS422/485 or RS232,
Modbus master/slave
or
PROFIBUS-DP slave
System bus
Com1
RS422/485 or RS232,
Modbus master/slave
Com1
Com2
USB
RS422/485 or RS232,
Modbus master/slave,
connection for bar code scanner
RS422/485 or RS232,
Modbus master/slave,
connection for bar code scanner
Host and device
max. 100 m
max. 100 m
