5 Installation
42
5.3.3 Special modules

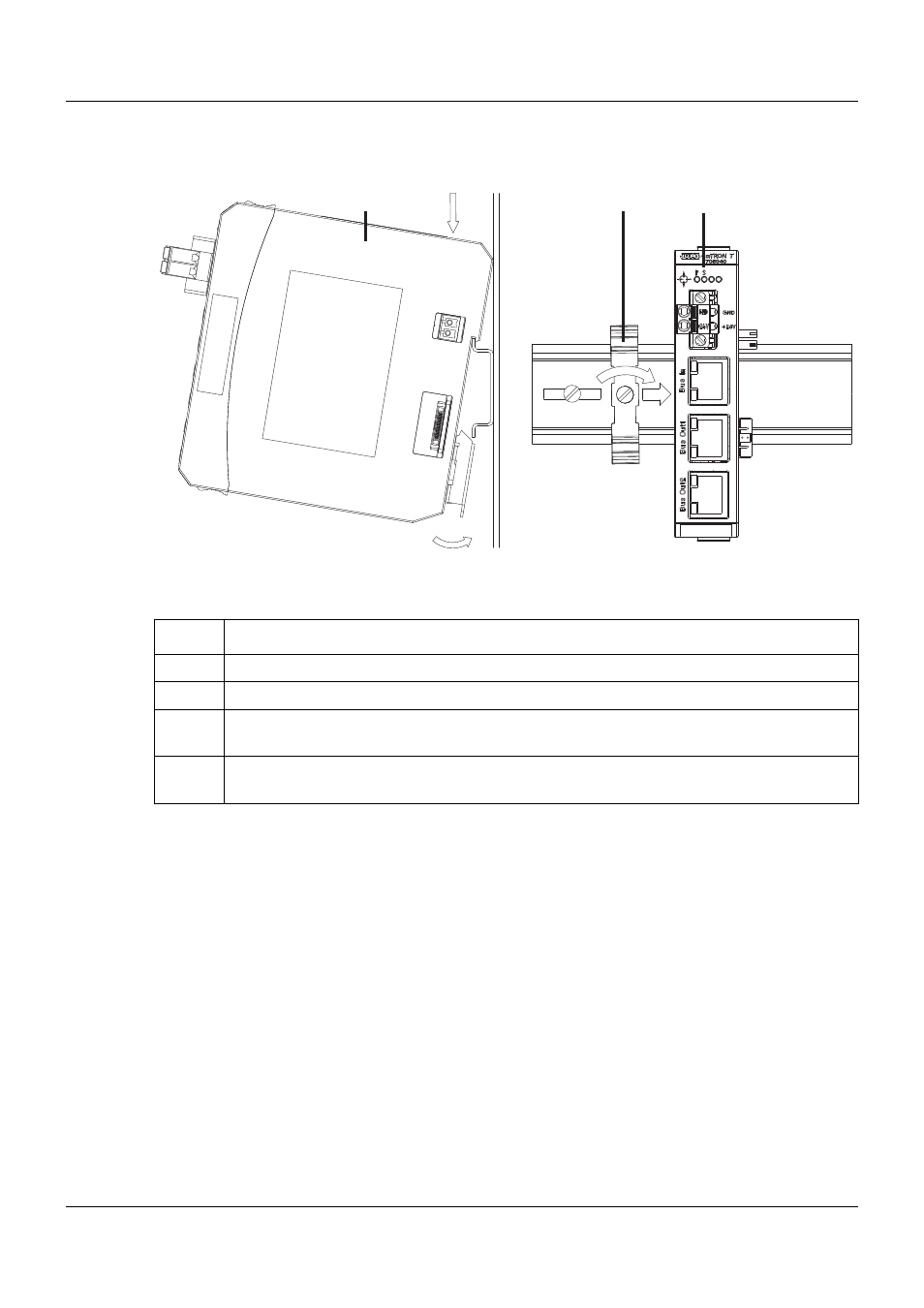

Installation, using the example of a router module 705040
Procedure:
Step Activity
1 Mount the router module (A) in the DIN rail from above (A1).
2 Pivot the router module (A) downward until it snaps into place (A2).
3 Position the end bracket (B) on the DIN rail and move to the right against the router module
(B3).
4 Fasten the end bracket (B) using a screwdriver (B4). For this purpose, ensure that the end
bracket is positioned flush against the router module.
(A1)
(A2)
(B) (A)
(B3)
(B4)
(A)
