6 Electrical connection

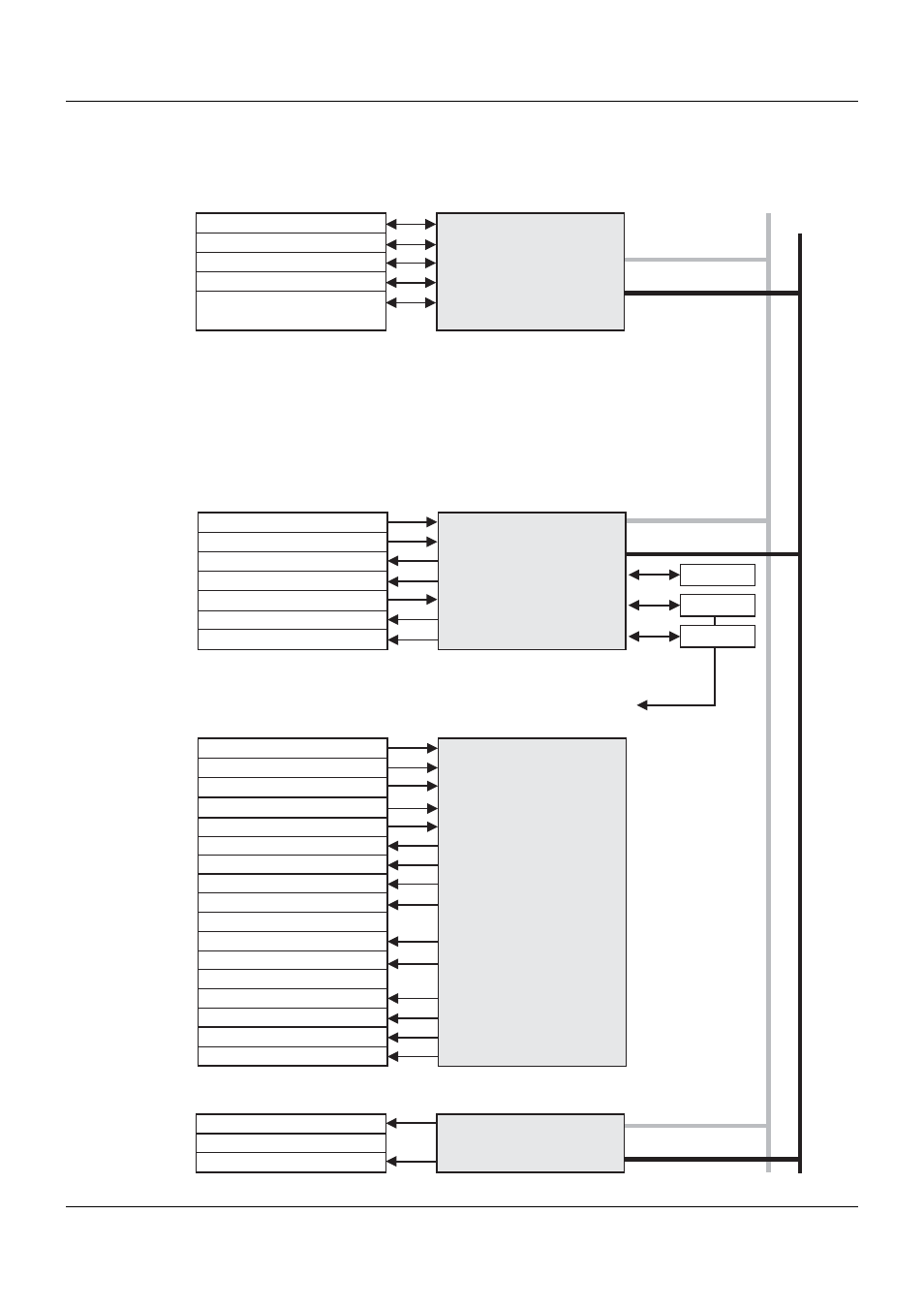

6.2 Electrical isolation
Central processing unit 705001
USB device
System bus Out 1
Ethernet
Com 1
Com 2
System bus
24 V
AC 1500 V
~ ~
AC 1500 V
~ ~
AC 30, DC 50 V
~ ~
AC 30, DC 50 V
~ ~
Multichannel controller module 705010
Analog input 1
AC 3800 V
Option 1
Option 2
Option 3
Analog input 2
Relay output 3
Relay output 4
Digital input 1 to 2
AC 30 V, DC 50 V
~ ~
~ ~
~ ~
~ ~
~ ~
~ ~
~ ~
~ ~
Options for the multichannel
controller module 705010
Analog input 3
Digital output 3
Input/output modules
Base units
AC 30 V, DC 50 V
AC 3800 V
AC 30 V, DC 50 V
~ ~
AC 30 V, DC 50 V
~ ~
AC 30 V, DC 50 V
~ ~
AC 30 V, DC 50 V
~ ~
AC 30 V, DC 50 V
~ ~
AC 30 V, DC 50 V
Digital output 4 ~ ~
AC 30 V, DC 50 V
Analog input 4
Digital input 7 to 8
Digital input 5 to 6
Analog output 3
Analog output 1
...
Relay output 10
Relay output 5
...
Open-collector output 9 to 10
Open-collector output 5 to 6
Solid state relay output 10
Solid state relay output 5
~ ~
AC 3800 V
~ ~
AC 800 V (peak)
~ ~
AC 30 V, DC 50 V
Relay module 4-channel 705015
Relay output 1 AC 3800 V
~ ~
~ ~
Relay output 4
Digital input 9 to 10
Analog output 2
~ ~
AC 30 V, DC 50 V
~ ~
AC 30 V, DC 50 V
~ ~
AC 30 V, DC 50 V
~ ~
AC 30 V, DC 50 V
~ ~
AC 3800 V
~ ~
~ ~
AC 30 V, DC 50 V
~ ~
AC 30 V, DC 50 V
AC 800 V (peak)
AC 3800 V
...
Open-collector output 7 to 8
