5 Installation
5.3.1 Base units

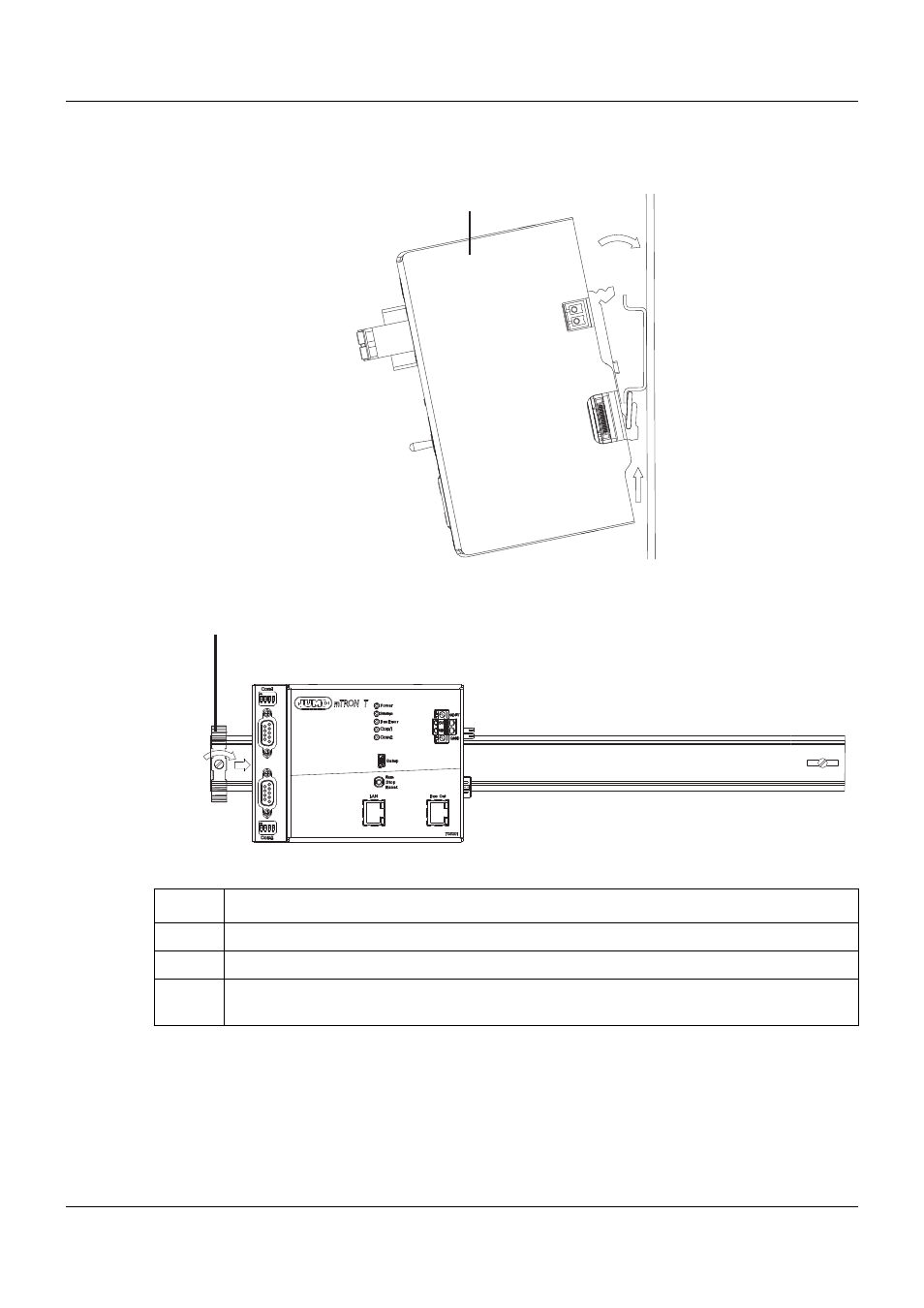

Installation of a base unit, using the example of a central processing unit 705001
Installing the end brackets
Procedure:
(A)
(A2)
(A1)
Step Activity
1 Mount the central processing unit (A) on the DIN rail from below and press upward (A1).
2 Pivot the central processing unit (A) toward the rear until it snaps into place (A2).
3 Position the end bracket (B) on the DIN rail and move to the right against the central pro-
cessing unit (B3). Fasten the end bracket using a screwdriver (B4).
(B)
(B3)
(B4)
