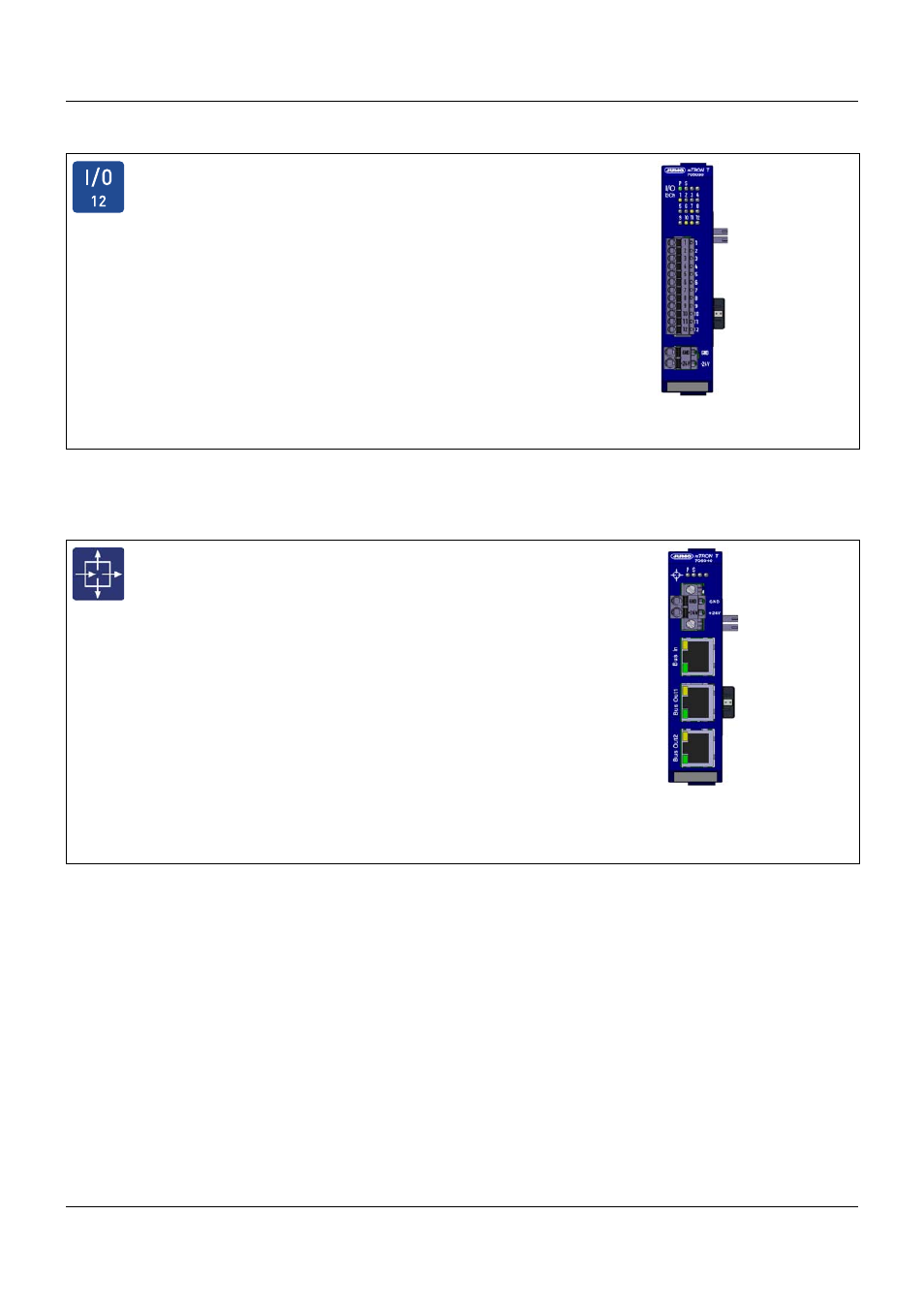

Digital input/output module 12-channel
1.2.5 Special modules
Router module
• 12 channels which can be respectively configured as digital in-
puts (DC 0/24 V) or as digital outputs (DC 0/24 V, 500 mA)
• Supply of external voltage through terminal at the front
• Automatic configuration after the module insert has been ex-
changed during service work
• Dimensions (W x H x D): 22.5 mm x 103.6 mm x 101.5 mm
(without connection elements)
For further information: Refer to data sheet 705030
• The router module distributes the input/output modules to
several DIN rails/control cabinets (decentralized arrangement)
• It uses the system bus to link modules to the base unit or the
multifunction panel
• Up to 100 m distance between two router modules or between
a router module and the base unit or the multifunction panel
• Up to 30 router modules are possible
• The router module operates at a voltage supply of DC 24 V and
supplies the connected input/output modules
• No configuration of the router module required
• For applications such as Hot Connect, for example, the ad-
dress of the router module can be set by rotary coding switch-
es
• Three RJ45 system bus connections at the front
(1 × Bus In, 2 × Bus Out), electrically isolated
• Dimensions (W x H x D): 22.5 mm x 103.6 mm x 101.5 mm
(without connection elements)
For further information: Refer to data sheet 705040
